owners manual Lancia Thesis

owners manual Lancia Thesis - year of production: 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 - Lancia Thesis owners manual EN

Document: pdf (5.2 MB) 386 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Lancia Thesis, year of production 2001 - 2009:

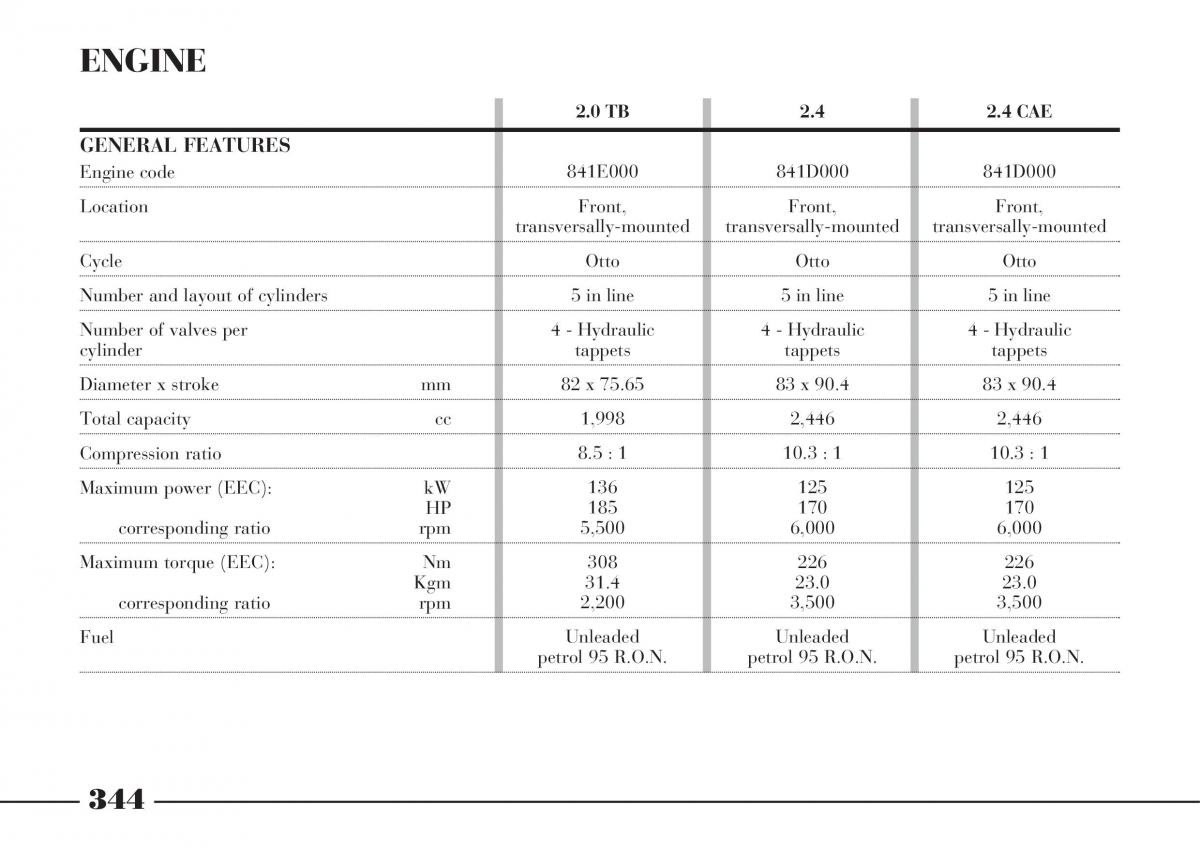

ENGINE 2.0 TB 2.4 2.4 CAE GENERAL FEATURES Engine code 841E000 841D000 841D000 Location Front, Front, Front, transversally-mountedtransversally-mountedtransversally-mounted Cycle Otto Otto Otto Number and layout of cylinders 5 in line 5 in line 5 in line Number of valves per 4 - Hydraulic 4 - Hydraulic 4 - Hydraulic cylinder tappets tappets tappets Diameter x stroke mm 82 x 75.65 83 x 90.4 83 x 90.4 Total capacity cc 1,998 2,446 2,446 Compression ratio 8.5 : 1 10.3 : 1 10.3 : 1 Maximum power (EEC): kW 136 125 125 HP 185 170 170 corresponding ratio rpm 5,500 6,000 6,000 Maximum torque (EEC): Nm 308 226 226 Kgm 31.4 23.0 23.0 corresponding ratio rpm 2,200 3,500 3,500 Fuel Unleaded Unleaded Unleaded petrol 95 R.O.N. petrol 95 R.O.N. petrol 95 R.O.N. 344
