owners manual VW Jetta Hybrid

all ratings: 0 average rating: 5

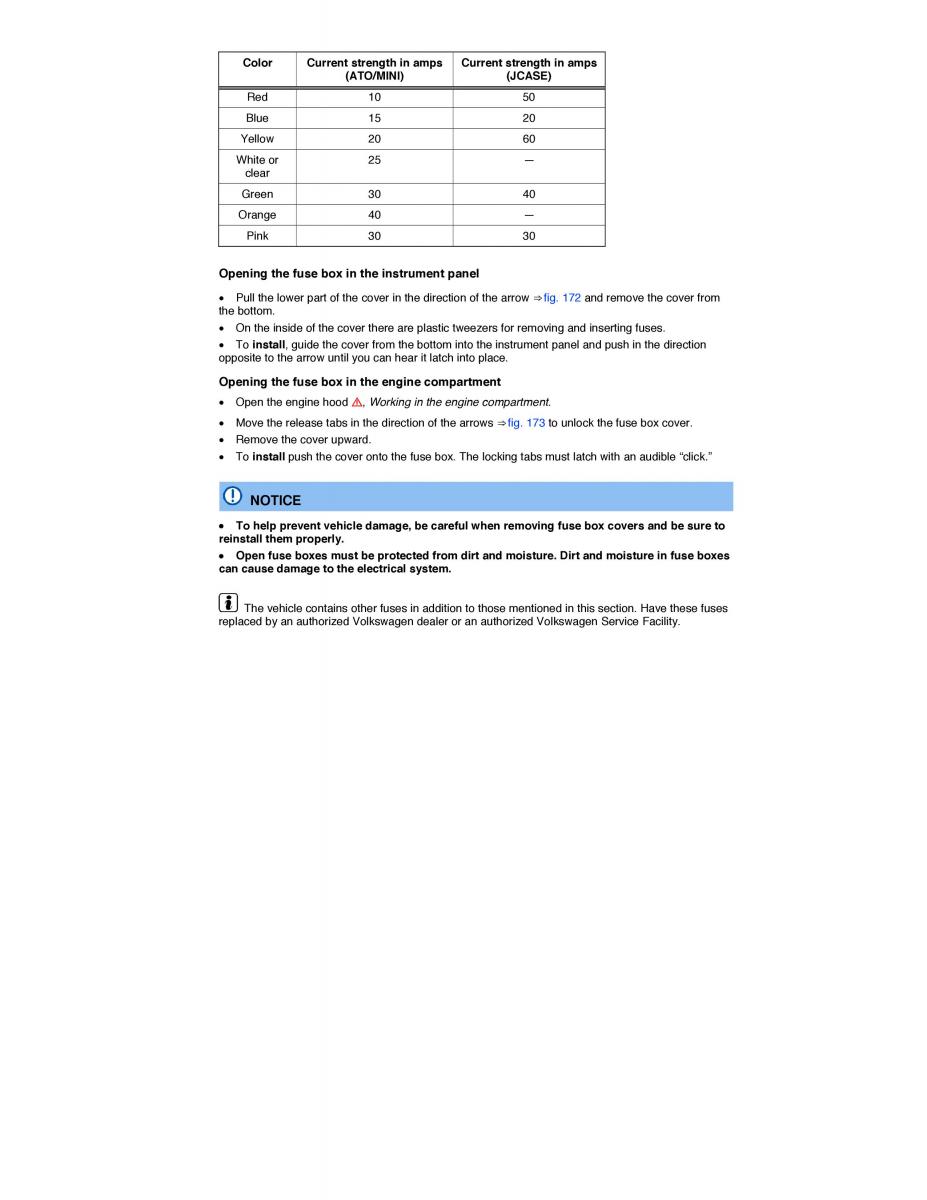

Color Current strength in ampsCurrent strength in amps (ATO/MINI) (JCASE) Red 10 50 Blue 15 20 Yellow 20 60 White or 25 — clear Green 30 40 Orange 40 — Pink 30 30 Opening the fuse box in the instrument panel x Pull the lower part of the cover in the direction of the arrow⇒  fig. 172 and remove the cover from the bottom. x On the inside of the cover there are plastic tweezers for removing and inserting fuses. x Toin stall, guide the cover from the bottom into the instrument panel and push in the direction opposite to the arrow until you can hear it latch into place. Opening the fuse box in the engine compartment x Open the engine hoodž , Working in the engine compartment. x Move the release tabs in the direction of the arrow⇒ s fig. 173 to unlock the fuse box cover. x Remove the cover upward. x Toin stall push the cover onto the fuse box. The locking tabs must latch with an audible “click.” NOTICE x To help prevent vehicle damage, be careful when removing fuse box covers and be sure to reinstall them properly. x Open fuse boxes must be protected from dirt and moisture. Dirt and moisture in fuse boxes can cause damage to the electrical system. The vehicle contains other fuses in addition to those mentioned in this section. Have these fuses replaced by an authorized Volkswagen dealer or an authorized Volkswagen Service Facility.
