text version of content this owner's manual page from owners manual to the vehicle VW Beetle, year of production 2011:

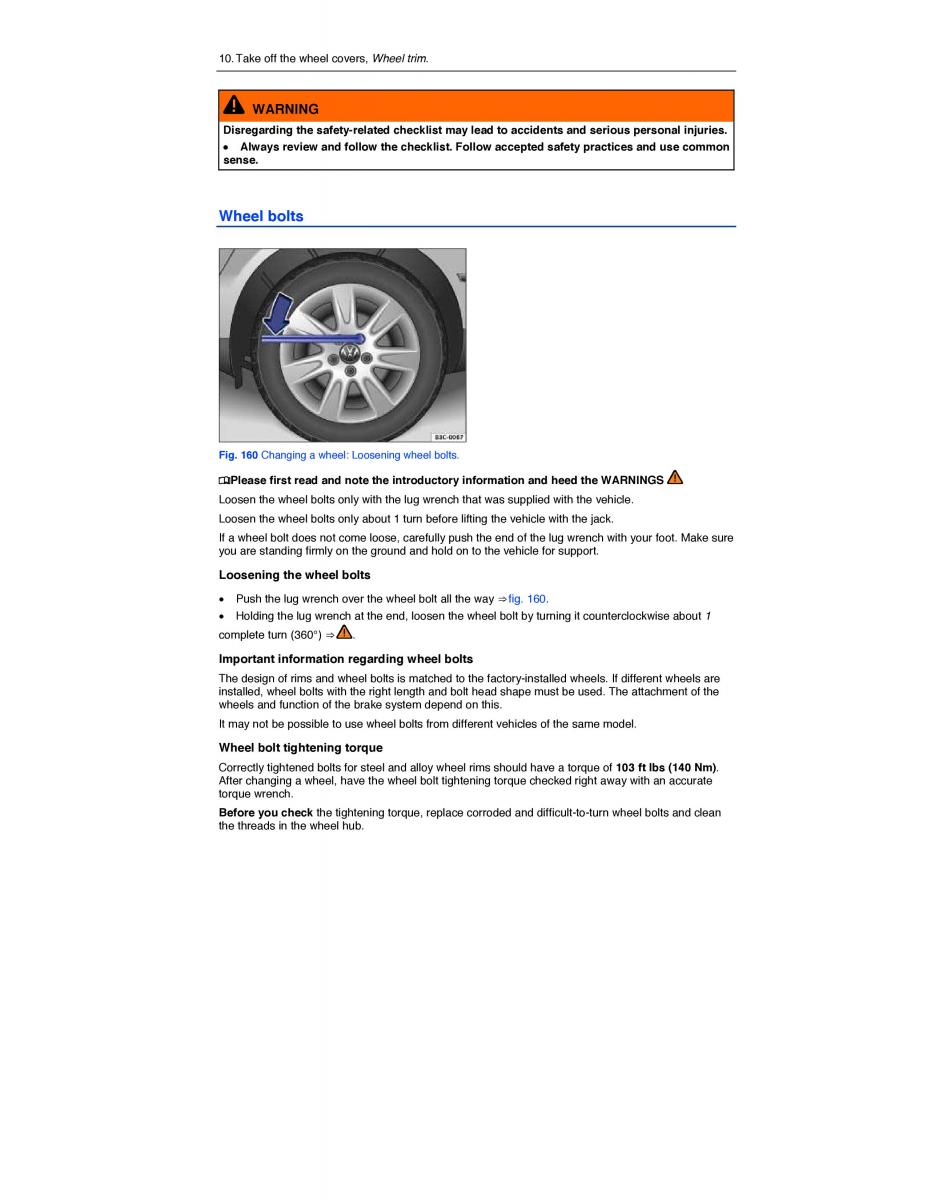

10. Take off the wheel covers, Wheel trim. WARNING Disregarding the safety-related checklist may lead to accidents and serious personal injuries. x Always review and follow the checklist. Follow accepted safety practices and use common sense. Wheel bolts Fig. 160 Changing a wheel: Loosening wheel bolts. ¤Please first read and note the introductory information and heed the WARNINGS Loosen the wheel bolts only with the lug wrench that was supplied with the vehicle. Loosen the wheel bolts only about 1 turn before lifting the vehicle with the jack. If a wheel bolt does not come loose, carefully push the end of the lug wrench with your foot. Make sure you are standing firmly on the ground and hold on to the vehicle for support. Loosening the wheel bolts x Push the lug wrench over the wheel bolt all the wa⇒ y fig. 160. x Holding the lug wrench at the end, loosen the wheel bolt by turning it counterclockwise abou1t complete turn (360°) ⇒ . Important information regarding wheel bolts The design of rims and wheel bolts is matched to the factory-installed wheels. If different wheels are installed, wheel bolts with the right length and bolt head shape must be used. The attachment of the wheels and function of the brake system depend on this. It may not be possible to use wheel bolts from different vehicles of the same model. Wheel bolt tightening torque Correctly tightened bolts for steel and alloy wheel rims should have a torque of 103 ft lbs (140 Nm). After changing a wheel, have the wheel bolt tightening torque checked right away with an accurate torque wrench. Before you check the tightening torque, replace corroded and difficult-to-turn wheel bolts and clean the threads in the wheel hub.
