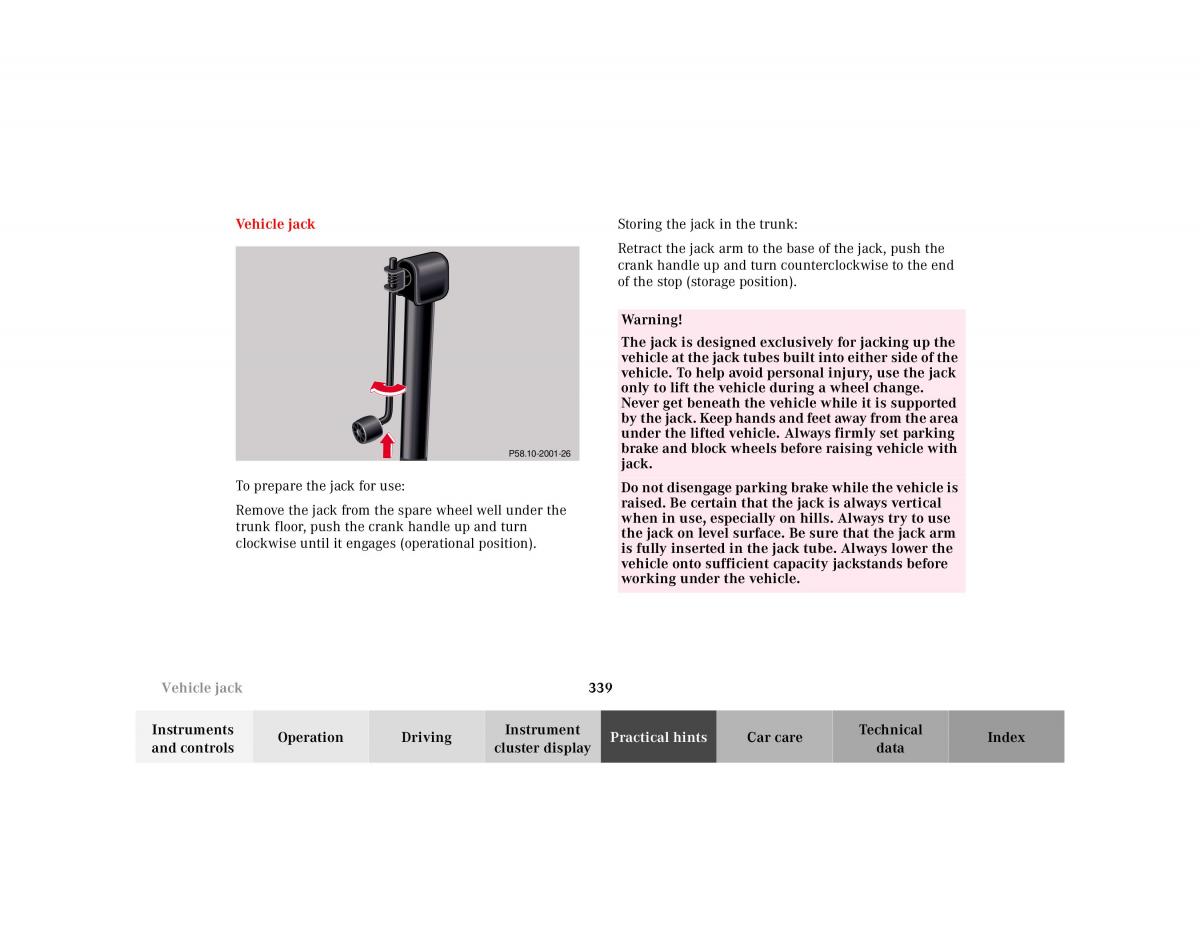

Vehicle jack Storing the jack in the trunk:
Retract the jack arm to the base of the jack, push the
crank handle up and turn counterclockwise to the end
of the stop (storage position).
Warning!
The jack is designed exclusively for jacking up the
vehicle at the jack tubes built into either side of the
vehicle. To help avoid personal injury, use the jack
only to lift the vehicle during a wheel change.
Never get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from the area
under the lifted vehicle. Always firmly set parking
P58.10-2001-26 brake and block wheels before raising vehicle with
jack.
To prepare the jack for use: Do not disengage parking brake while the vehicle is
Remove the jack from the spare wheel well under the raised. Be certain that the jack is always vertical
trunk floor, push the crank handle up and turn when in use, especially on hills. Always try to use
clockwise until it engages (operational position). the jack on level surface. Be sure that the jack arm
is fully inserted in the jack tube. Always lower the
vehicle onto sufficient capacity jackstands before
working under the vehicle.
Vehicle jack 339
