owners manual Suzuki SX4 S-Cross

owners manual Suzuki SX4 S-Cross - year of production: 2013 - Suzuki SX4 S Cross owners manual EN

Document: pdf (16.28 MB) 454 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Suzuki SX4 S-Cross, year of production 2013:

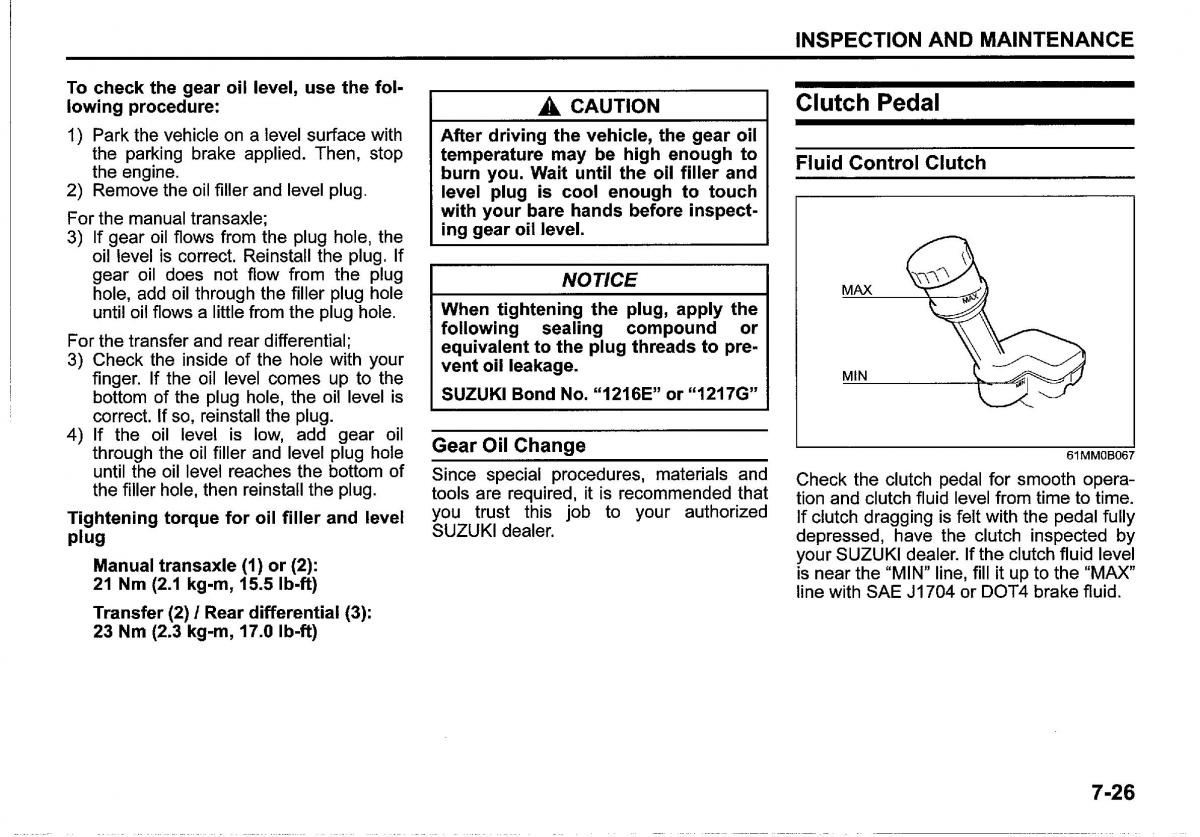

INSPECTION AND MAINTENANCE To check the gear oil level, use the fol- Clutch Pedal lowing procedure: .A. CAUTION 1) Park the vehicle on a level surface with After driving the vehicle, the gear oil the parking brake applied. Then, stop temperature may be high enough to Fluid Control Clutch the engine. level plug. burn you. Wait until the oil filler and 2) Remove the oil filler and level plug is cool enough to touch For the manual transaxle; with your bare hands before inspect- 3) If gear oil flows from the plug hole, the ing gear oil level. oil level is correct. Reinstall the plug. If gear oil does not flow from the plug NOTICE MAX hole, add oil through the filler plug hole When tightening the plug, apply the until oil flows a little from the plug hole. following sealing compound or For the transfer and rear differential; equivalent to the plug threads to pre- 3) Check the inside of the hole with your vent oil leakage. finger. If the oil level comes up to the MIN bottom of the plug hole, the oil level is SUZUKI Bond No. "1216E" or "1217G" correct. If so, reinstall the plug. 4) If the oil level is low, add gear oil Gear Oil Change through the oil filler and level plug hole 61MMOB067 until the oil level reaches the bottom of Since special procedures, materials and Check the clutch pedal for smooth opera- hole, then reinstall the plug. the filler tools are required, it is recommended that tion and clutch fluid level from time to time. Tightening torque for oil filler and level you trust this job to your authorized If clutch dragging is felt with the pedal fully plug SUZUKI dealer. depressed, have the clutch inspected by your Manual transaxle (1) or (2): SUZUKI dealer. If the clutch fluid level 21 Nm (2.1 kg-m, 15.5Ib-ft) is near the "MIN" line, fill it up to the "MAX" line with SAE J1704 or DOT4 brake fluid. Transfer (2) I Rear differential (3): 23 Nm (2.3 kg-m, 17.0 Ib-ft) 7-26
