owners manual VW Jetta

owners manual VW Jetta - year of production: 2010 - VW Jetta VI SportWagen owners manual EN

Document: pdf (5.63 MB) 324 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle VW Jetta, year of production 2010:

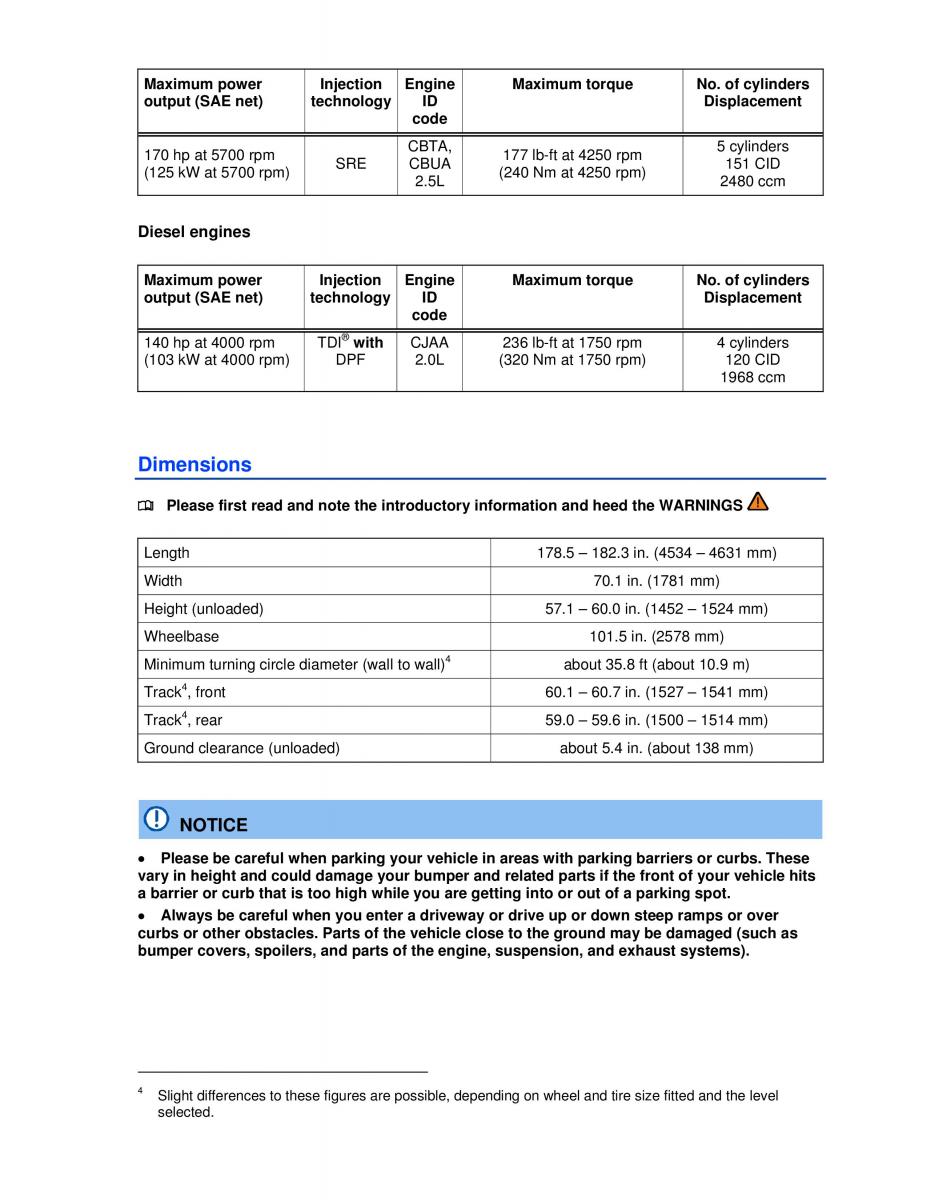

Maximum power Injection Engine Maximum torque No. of cylinders output (SAE net) technology ID Displacement code 170 hp at 5700 rpm CBTA, 177 lb-ft at 4250 rpm 5 cylinders (125 kW at 5700 rpm) SRE CBUA (240 Nm at 4250 rpm) 151 CID 2.5L 2480 ccm Diesel engines Maximum power Injection Engine Maximum torque No. of cylinders output (SAE net) technology ID Displacement code ® 140 hp at 4000 rpm TDI with CJAA 236 lb-ft at 1750 rpm 4 cylinders (103 kW at 4000 rpm) DPF 2.0L (320 Nm at 1750 rpm) 120 CID 1968 ccm Dimensions ¤ Please first read and note the introductory information and heed the WARNINGS Length 178.5 – 182.3 in. (4534 – 4631 mm) Width 70.1 in. (1781 mm) Height (unloaded) 57.1 – 60.0 in. (1452 – 1524 mm) Wheelbase 101.5 in. (2578 mm) 4 Minimum turning circle diameter (wall to wall) about 35.8 ft (about 10.9 m) 4 Track , front 60.1 – 60.7 in. (1527 – 1541 mm) 4 Track , rear 59.0 – 59.6 in. (1500 – 1514 mm) Ground clearance (unloaded) about 5.4 in. (about 138 mm) NOTICE x Please be careful when parking your vehicle in areas with parking barriers or cubs. rThese vary in height and could damage your bumper and related parts if the front of your vehicle hits a barrier or curb that is too high while you are getting into or out of a parking spot. x Always be careful when you enter a drivewa oyr drive up or down steep ramps or over curbs or other obstacles. Parts of the vehicle close to the ground may be damaged (such as bumper covers, spoilers, and parts of the engine, suspension, and exhaust systems). 4 Slight differences to these figures are possible, depending on wheel and tire size fitted an tdhe level selected.
