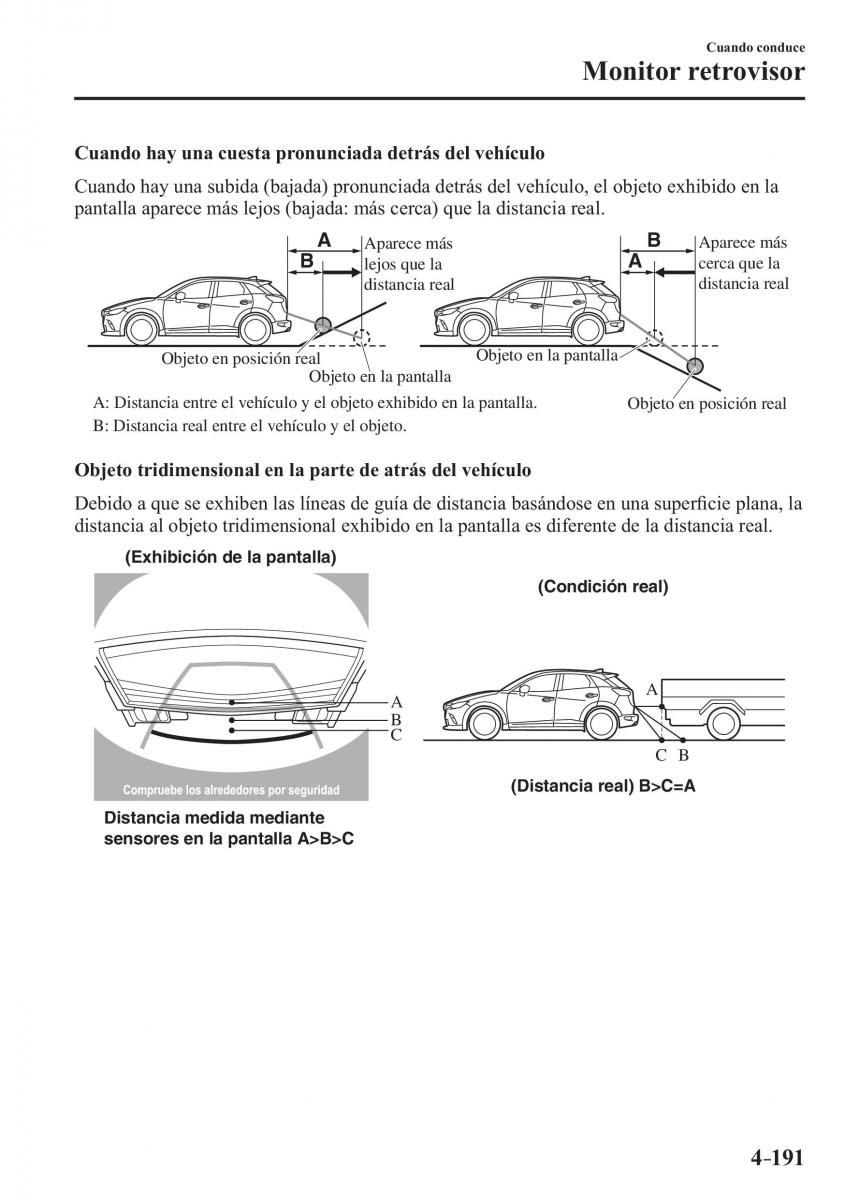

Cuando conduce
Monitor retrovisor
Cuando hay una cuesta pr onunciada detrás del vehículo
Cuando hay una subida (bajada) pronunciada detrás del vehículo, el objeto exhibido en la
pantalla aparece más lejos (bajada: más cerca) que la distancia real.
A B
Aparece más Aparece más
B lejos que la A cerca que la
distancia real distancia real
Objeto en posición real Objeto en la pantalla
Objeto en la pantalla
A: Distancia entre el vehículo y el objeto exhibido en la pantalla.Objeto en posición real
B: Distancia real entre el vehículo y el objeto.
Objeto tridimensional en la parte de atrás del vehículo
Debido a que se exhiben las líneas de guía de distancia basándose en una superfi cie plana, la
distancia al objeto tridimensional exhibido en la pantalla es diferente de la distancia real.
(Exhibición de la pantalla)
(Condición real)
A A
B
C
C B
(Distancia real) B>C=A
Distancia medida mediante
sensores en la pantalla A>B>C
4–191
