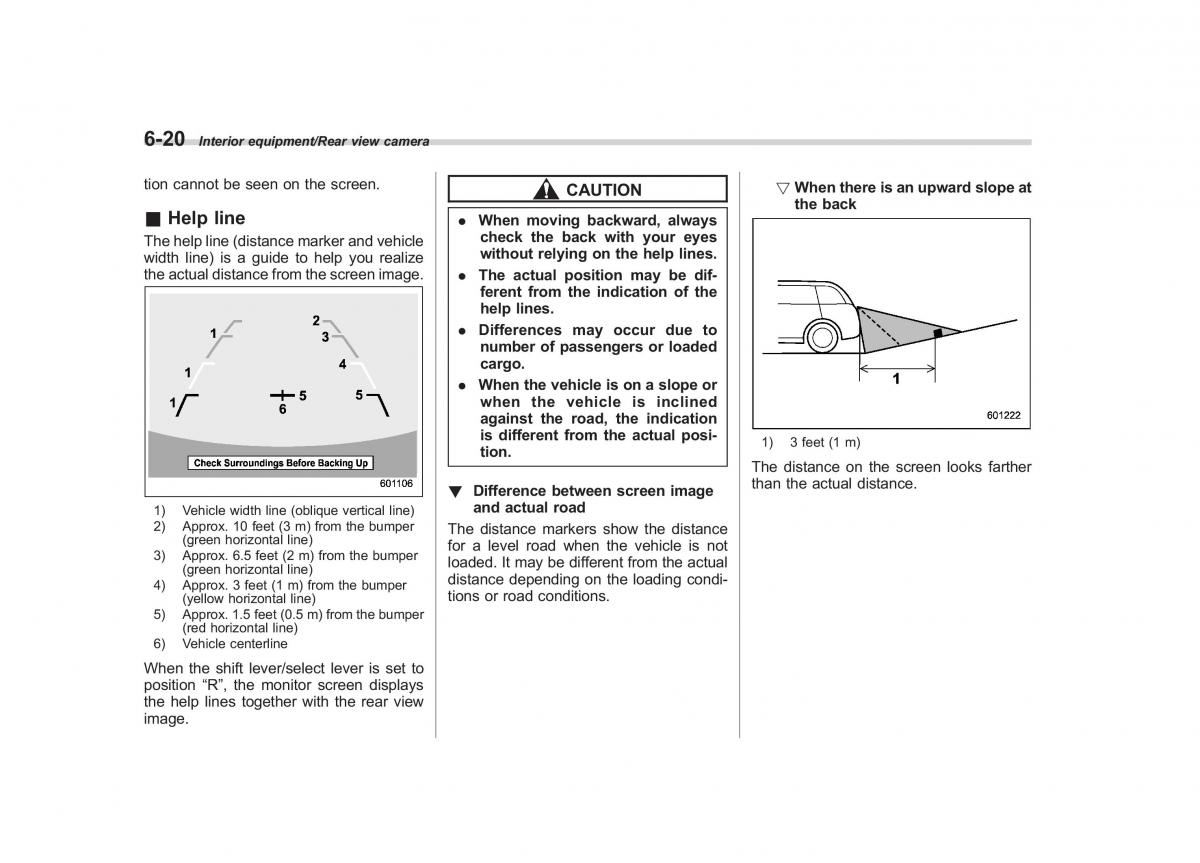

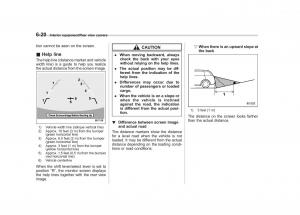

6-20 Interior equipment/Rear view camera
tion cannot be seen on the screen. CAUTION !Whenthereisanupwardslopeat
the back
&Helpline . When moving backward, always
Thehelpline(distance marker andvehiclecheck the back with your eyes
width line) is a guide to help you realizewithout relying on the help lines.
the actual distance from the screen image The actual position may be dif-
ferent from the indication of the
help lines.
. Differences may occur due to
number of passengers or loaded
cargo.
. Whenthevehicleisonaslopeor
when the vehicle is inclined
against the road, the indication
is different from the actual posi-1)3 feet (1 m)
tion.
The distance on the screen looks farther
! Difference between screen imagethan the actual distance.
1)Vehicle width line (oblique vertical line)and actual road
2)Approx. 10 feet (3 m) from the bumperThe distance markers show the distance
(green horizontal line) for a level road when the vehicle is not
3)Approx. 6.5 feet (2 m) from the bumperloaded. It may be different from the actual
(green horizontal line) distance depending on the loading condi-
4)Approx. 3 feet (1 m) from the bumper
(yellow horizontal line) tions or road conditions.
5)Approx. 1.5 feet (0.5 m) from the bumper
(red horizontal line)
6)Vehicle centerline
When the shift lever/select lever is set to
position “R”, the monitor screen displays
the help lines together with the rear view
image.
