text version of content this owner's manual page from owners manual to the vehicle VW Golf VII, year of production 2012:

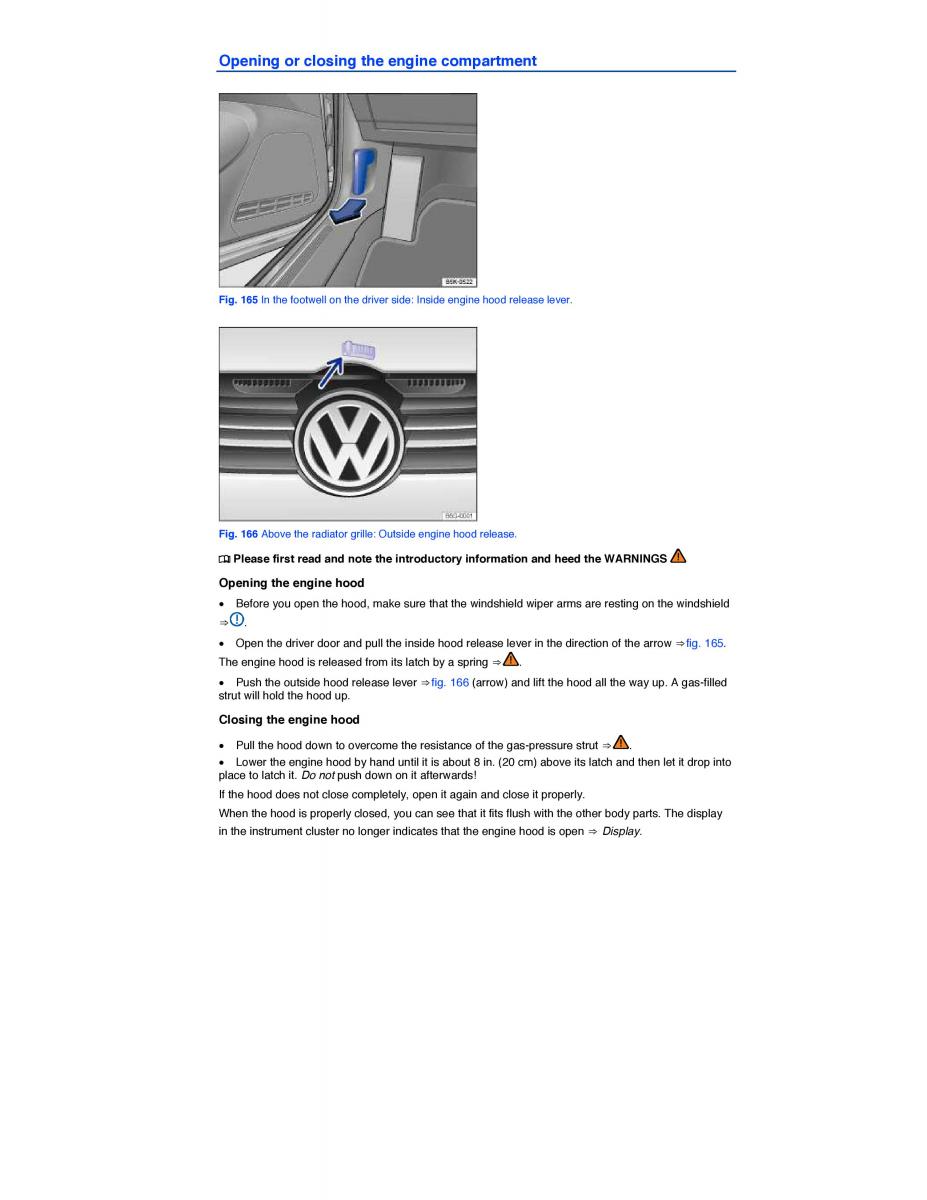

Opening or closing the engine compartment Fig. 165 In the footwell on the driver side: Inside engine hood release lever. Fig. 166 Above the radiator grille: Outside engine hood release. ¤ Please first read and note the introductory information and heed the WARNINGS Opening the engine hood x Before you open the hood, make sure that the windshield wiper arms are resting on the windshield ⇒ . x Open the driver door and pull the inside hood release lever in the direction of the arrow⇒ fig. 165. The engine hood is released from its latch by a spring ⇒ . x Push the outside hood release leve⇒ r fig. 166 (arrow) and lift the hood all the way up. A gas-filled strut will hold the hood up. Closing the engine hood x Pull the hood down to overcome the resistance of the gas-pressure stru⇒ t . x Lower the engine hood by hand until it is about 8 in. (20 cm) above its latch and then let it drop into place to latch it. Do not push down on it afterwards! If the hood does not close completely, open it again and close it properly. When the hood is properly closed, you can see that it fits flush with the other body parts. The display in the instrument cluster no longer indicates that the engine hood is open ⇒ Display.
