from owners manual to the vehicle Volvo XC60, year of production 2017:

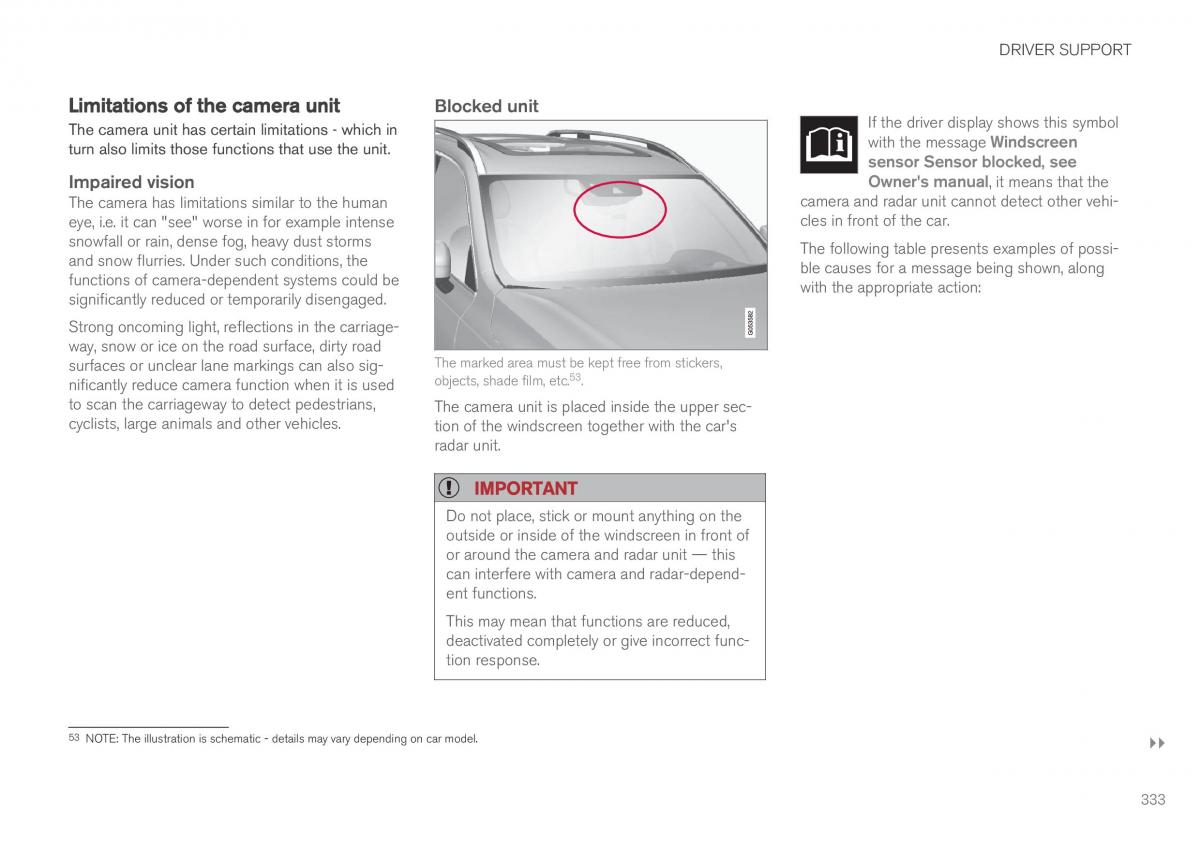

DRIVER SUPPORT
Limitations of the camera unit Blocked unit
The camera unit has certain limitations - which in If the driver display shows this symbol
turn also limits those functions that use the unit. with the message Windscreen
sensor Sensor blocked, see
Impaired vision Owners manual, it means that the
The camera has limitations similar to the human camera and radar unit cannot detect other vehi-
eye, i.e. it can "see" worse in for example intense cles in front of the car.
snowfall or rain, dense fog, heavy dust storms The following table presents examples of possi-
and snow flurries. Under such conditions, the ble causes for a message being shown, along
functions of camera-dependent systems could be with the appropriate action:
significantly reduced or temporarily disengaged.
Strong oncoming light, reflections in the carriage-
way, snow or ice on the road surface, dirty road
surfaces or unclear lane markings can also sig- The marked area must be kept free from stickers,
53
nificantly reduce camera function when it is used objects, shade film, etc
to scan the carriageway to detect pedestrians, The camera unit is placed inside the upper sec-
cyclists, large animals and other vehicles. tion of the windscreen together with the cars
radar unit.
IMPORTANT
Do not place, stick or mount anything on the
outside or inside of the windscreen in front of
or around the camera and radar unit — this
can interfere with camera and radar-depend-
ent functions.
This may mean that functions are reduced,
deactivated completely or give incorrect func-
tion response.
53 NOTE: The illustration is schematic - details may vary depending on car model.
}}
333
