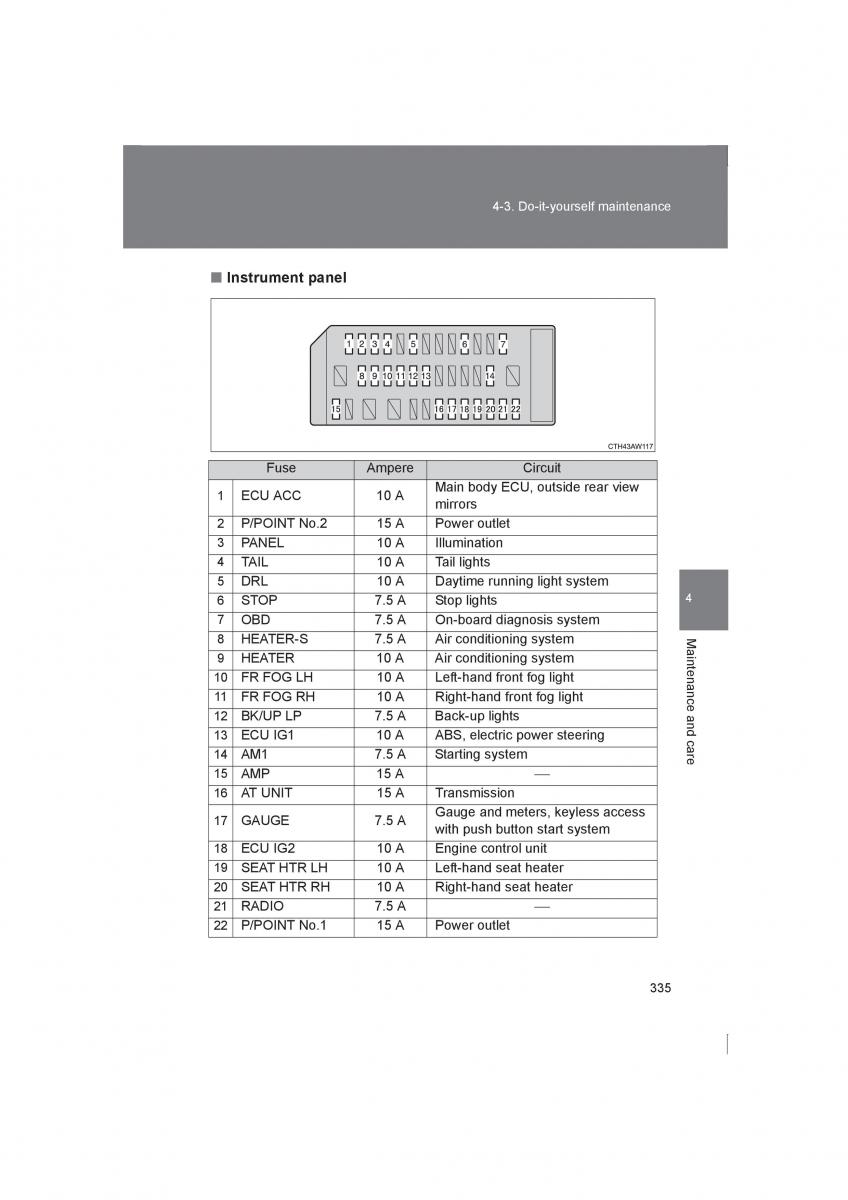

4-3. Do-it-yourself maintenance
■Instrument panel
Fuse Ampere Circuit
1 ECU ACC 10 A Main body ECU, outside rear view
mirrors
2 P/POINT No.2 15 A Power outlet
3 PANEL 10 A Illumination
4 TAIL 10 A Tail lights
5 DRL 10 A Daytime running light system
6 STOP 7.5 A Stop lights 4
7 OBD 7.5 A On-board diagnosis system
8 HEATER-S 7.5 A Air conditioning system M
9 HEATER 10 A Air conditioning system ain
10 FR FOG LH 10 A Left-hand front fog light ten
11 FR FOG RH 10 A Right-hand front fog light anc
12 BK/UP LP 7.5 A Back-up lights e a
nd
13 ECU IG1 10 A ABS, electric power steering ca
14 AM1 7.5 A Starting system re
15 AMP 15 A
16 AT UNIT 15 A Transmission
17 GAUGE 7.5 A Gauge and meters, keyless access
with push button start system
18 ECU IG2 10 A Engine control unit
19 SEAT HTR LH 10 A Left-hand seat heater
20 SEAT HTR RH 10 A Right-hand seat heater
21 RADIO 7.5 A
22 P/POINT No.1 15 A Power outlet
335
