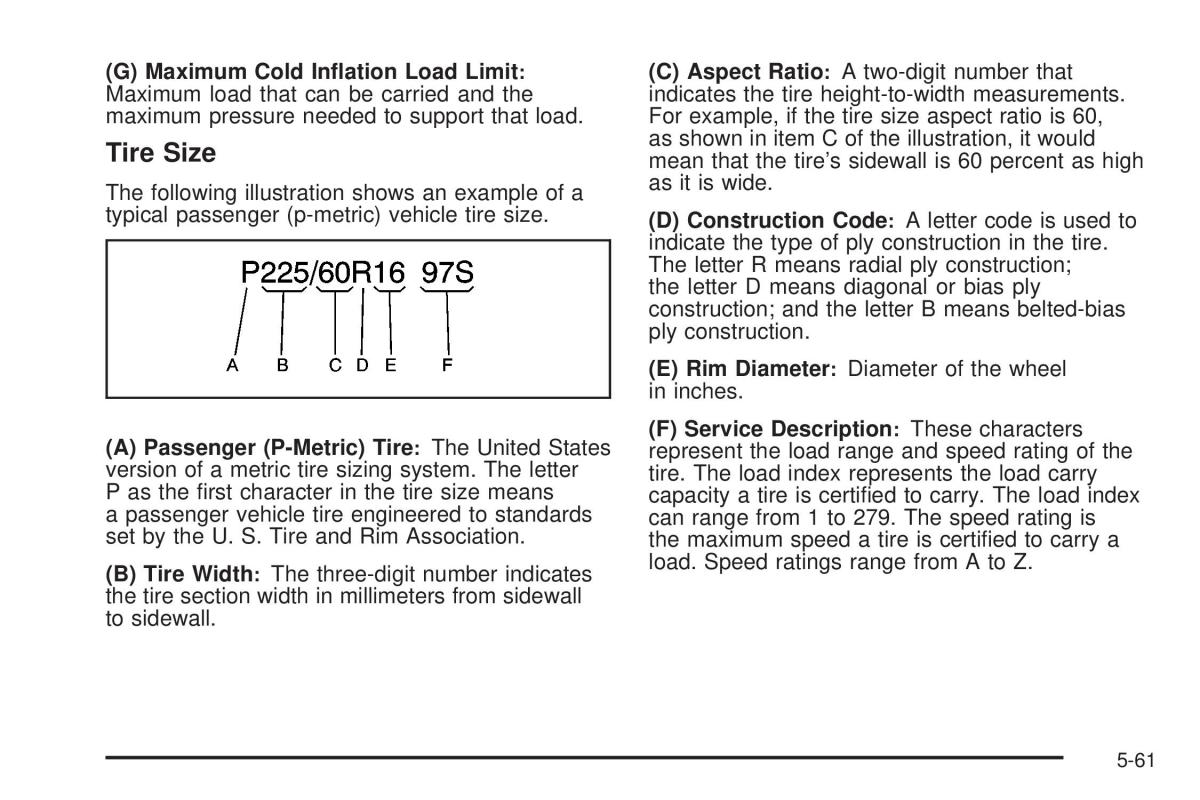

text version of content this owner's manual page from owners manual to the vehicle Chevrolet Corvette, year of production 1997 - 2004:
(C) Aspect Ratio
(G) Maximum Cold Inflation Load Limit:: A two-digit number that
Maximum load that can be carried and theindicates the tire height-to-width measurements.
maximum pressure needed to support that load.For example, if the tire size aspect ratio is 60,
Tire Size as shown in item C of the illustration, it would
mean that the tire’s sidewall is 60 percent as high
The following illustration shows an example of aas it is wide.
typical passenger (p-metric) vehicle tire size.(D) Construction Code: A letter code is used to
indicate the type of ply construction in the tire.
The letter R means radial ply construction;
the letter D means diagonal or bias ply
construction; and the letter B means belted-bias
ply construction.
(E) Rim Diameter: Diameter of the wheel
in inches.
(A) Passenger (P-Metric) Tire: The United States(F) Service Description: These characters
version of a metric tire sizing system. The letterrepresent the load range and speed rating of the
Pasthe first character in the tire size meanstire. The load index represents the load carry
a passenger vehicle tire engineered to standardscapacity a tire is certified to carry. The load index
set by the U. S. Tire and Rim Association.can range from 1 to 279. The speed rating is
the maximum speed a tire is certified to carry a
(B) Tire Width: The three-digit number indicatesload. Speed ratings range from A to Z.
the tire section width in millimeters from sidewall
to sidewall.
5-61
