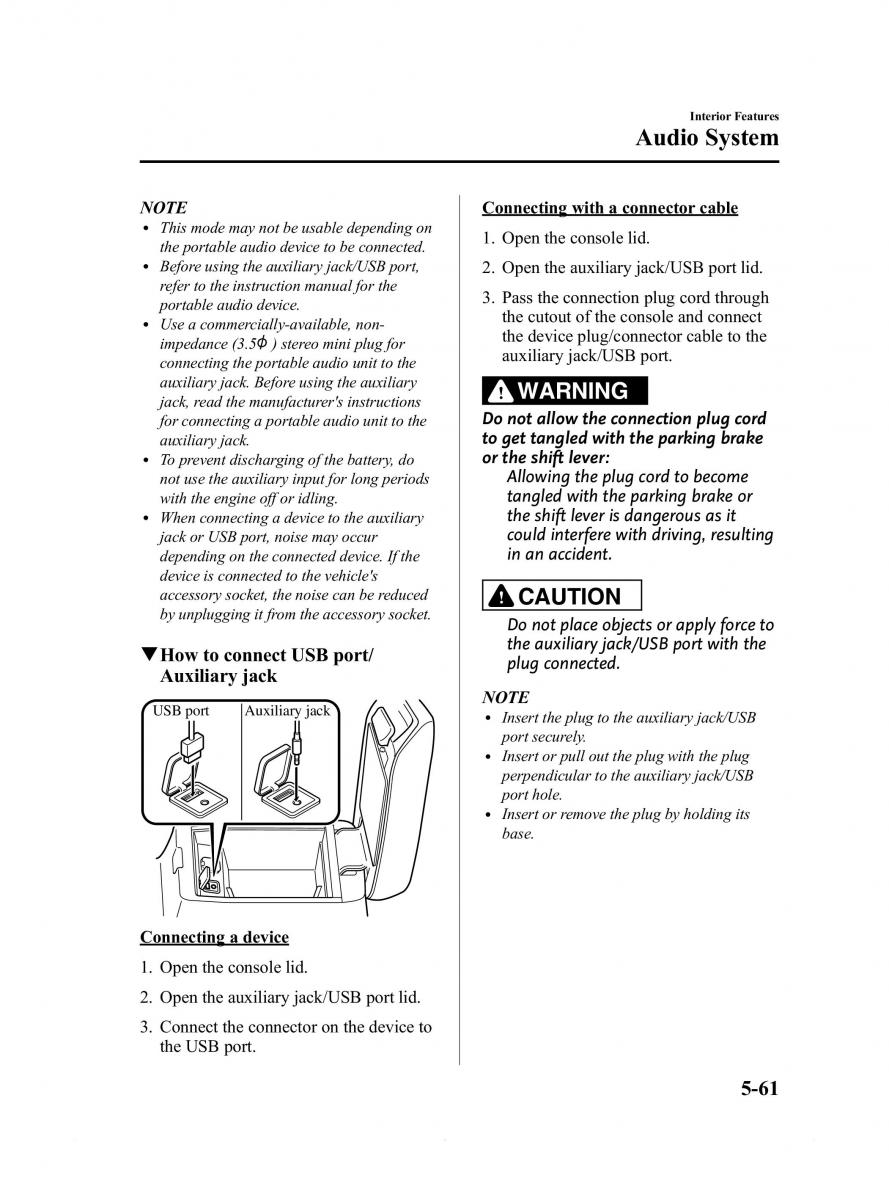

Mazda6_8DQ8-EA-13L_Edition3 Page333
Friday, June 13 2014 6:22 PM
Black plate (333,1)
Interior Features
AudioSystem
NOTE Connecting with a connector cable
l This mode may not be usable depending on 1. Open the console lid.
the portable audio device to be connected.
l Before using the auxiliary jack/USB port, 2. Open the auxiliary jack/USB port lid.
refer to the instruction manual for the 3. Pass the connection plug cord through
portable audio device. the cutout of the console and connect
l Useacommercially-available, non- the device plug/connector cable to the
impedance (3.5 ) stereo mini plug for auxiliary jack/USB port.
connecting the portable audio unit to the
auxiliary jack. Before using the auxiliary WARNING
jack, read the manufacturer's instructions
for connecting a portable audio unit to the Donotallowtheconnectionplugcord
auxiliary jack. to get tangled with the parking brake
l Toprevent discharging of the battery, do or the shift lever:
not use the auxiliary input for long periods Allowing the plug cord to become
with the engine off or idling. tangled with the parking brake or
l Whenconnecting a device to the auxiliary the shift lever is dangerous as it
jack or USB port, noise may occur could interfere with driving, resulting
depending on the connected device. If the in an accident.
device is connected to the vehicle's
accessory socket, the noise can be reduced CAUTION
by unplugging it from the accessory socket. Donotplaceobjects or apply force to
qHowtoconnectUSBport/ the auxiliary jack/USB port with the
Auxiliary jack plug connected.
NOTE
USB port Auxiliary jack l Insert the plug to the auxiliary jack/USB
port securely.
l Insert or pull out the plug with the plug
perpendicular to the auxiliary jack/USB
port hole.
l Insert or remove the plug by holding its
base.
Connecting a device
1. Open the console lid.
2. Open the auxiliary jack/USB port lid.
3. Connect the connector on the device to
the USB port.
5-61
Form No.8DQ8-EA-13L
