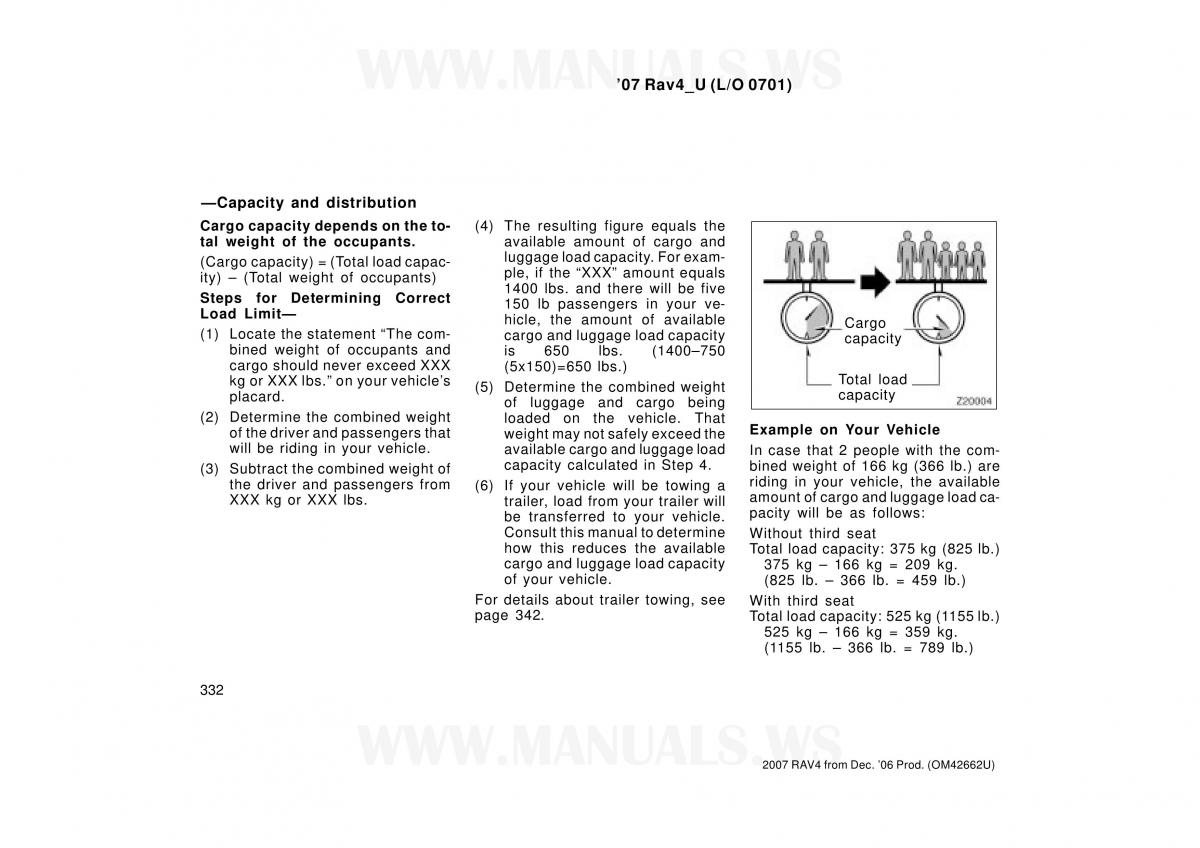

 ’07 Rav4_U (L/O 0701) —Capacity and distribution Cargo capacity depends on the to- (4) The resulting figure equals the tal weight of the occupants. available amount of cargo and (Cargo capacity) = (Total load capac-luggage load capacity. For exam- ity) – (Total weight of occupants) ple, if the “XXX” amount equals Steps for Determining Correct 1400 lbs. and there will be five Load Limit— 150 lb passengers in your ve- (1) Locate the statement “The com- hicle, the amount of available Cargo cargo and luggage load capacity bined weight of occupants and capacity is 650 lbs. (1400–750 cargo should never exceed XXX (5x150)=650 lbs.) Total load kg or XXX lbs.” on your vehicle’s(5) Determine the combined weight capacity placard. of luggage and cargo being (2) Determine the combined weight loaded on the vehicle. That of the driver and passengers that Example on Your Vehicle will be riding in your vehicle. weight may not safely exceed the available cargo and luggage load In case that 2 people with the com- (3) Subtract the combined weight ofcapacity calculated in Step 4. bined weight of 166 kg (366 lb.) are the driver and passengers from riding in your vehicle, the available (6) If your vehicle will be towing a XXX kg or XXX lbs. amount of cargo and luggage load ca- trailer, load from your trailer will pacity will be as follows: be transferred to your vehicle. Consult this manual to determine Without third seat how this reduces the available Total load capacity: 375 kg (825 lb.) cargo and luggage load capacity 375 kg – 166 kg = 209 kg. of your vehicle. (825 lb. – 366 lb. = 459 lb.) For details about trailer towing, see page 342. With third seat Total load capacity: 525 kg (1155 lb.) 525 kg – 166 kg = 359 kg. (1155 lb. – 366 lb. = 789 lb.) 332



 2007 RAV4 from Dec. ’06 Prod. (OM42662U)
