Maintenance and service 11-27

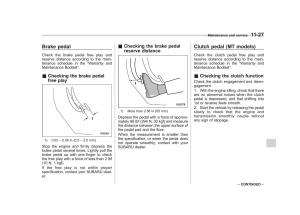

Brake pedal &Checking the brake pedal Clutch pedal (MT models)
reserve distance
Check the brake pedal free play and Check the clutch pedal free play and
reserve distance according to the main- reserve distance according to the main-
tenance schedule in the “Warranty and tenance schedule in the “Warranty and
Maintenance Booklet”. Maintenance Booklet”.
&Checking the brake pedal &Checking the clutch function
free play Check the clutch engagement and disen-
gagement.
1. Withtheengineidling, checkthatthere
are no abnormal noises when the clutch
pedal is depressed, and that shifting into
1st or reverse feels smooth.
2. Start the vehicle by releasing the pedal
1) More than 2.56 in (65 mm) slowly to check that the engine and
Depress the pedal with a force of approxi-transmission smoothly couple without
mately 66 lbf (294 N, 30 kgf) and measureany sign of slippage.
the distance between the upper surface of
the pedal pad and the floor.
When the measurement is smaller than
1) 0.02 – 0.08 in (0.5 – 2.0 mm)the specification, or when the pedal does
not operate smoothly, contact with your
Stop the engine and firmly depress theSUBARUdealer.
brake pedal several times. Lightly pull the
brake pedal up with one finger to check
the free play with a force of less than 2 lbf
(10 N, 1 kgf).
Ifthe free play is not within proper
specification, contact your SUBARU deal-
er.
– CONTINUED –
