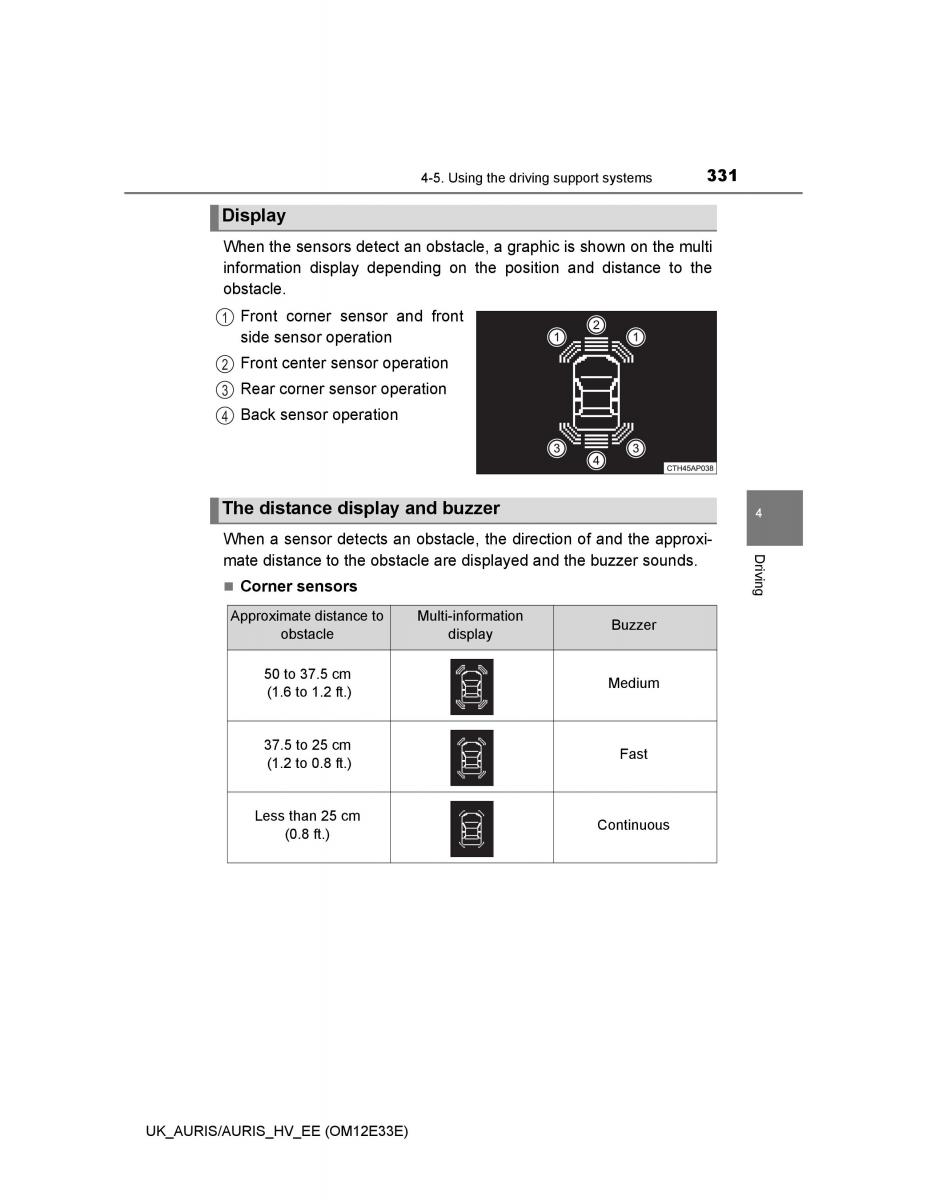

4-5. Using the driving support systems331
Display
When the sensors detect an obstacle, a graphic is shown on the multi
information display depending on the position and distance to the
obstacle.
1 Front corner sensor and front
side sensor operation
2 Front center sensor operation
3 Rear corner sensor operation
4 Back sensor operation
The distance display and buzzer 4
When a sensor detects an obstaclethe dire, ction of and the approxi-
D
mate distance to the obstacle are displayed and the buzzer sounds.r
Corner sensors iving
Approximate distance to Multi-informationBuzzer
obstacle display
50 to 37.5 cm Medium
(1.6 to 1.2 ft.)
37.5 to 25 cm Fast
(1.2 to 0.8 ft.)
Less than 25 cm Continuous
(0.8 ft.)
UK_AURIS/AURIS_HV_EE (OM12E33E)
