text version of content this owner's manual page from owners manual to the vehicle Hyundai i20, year of production 2008 - 2014:

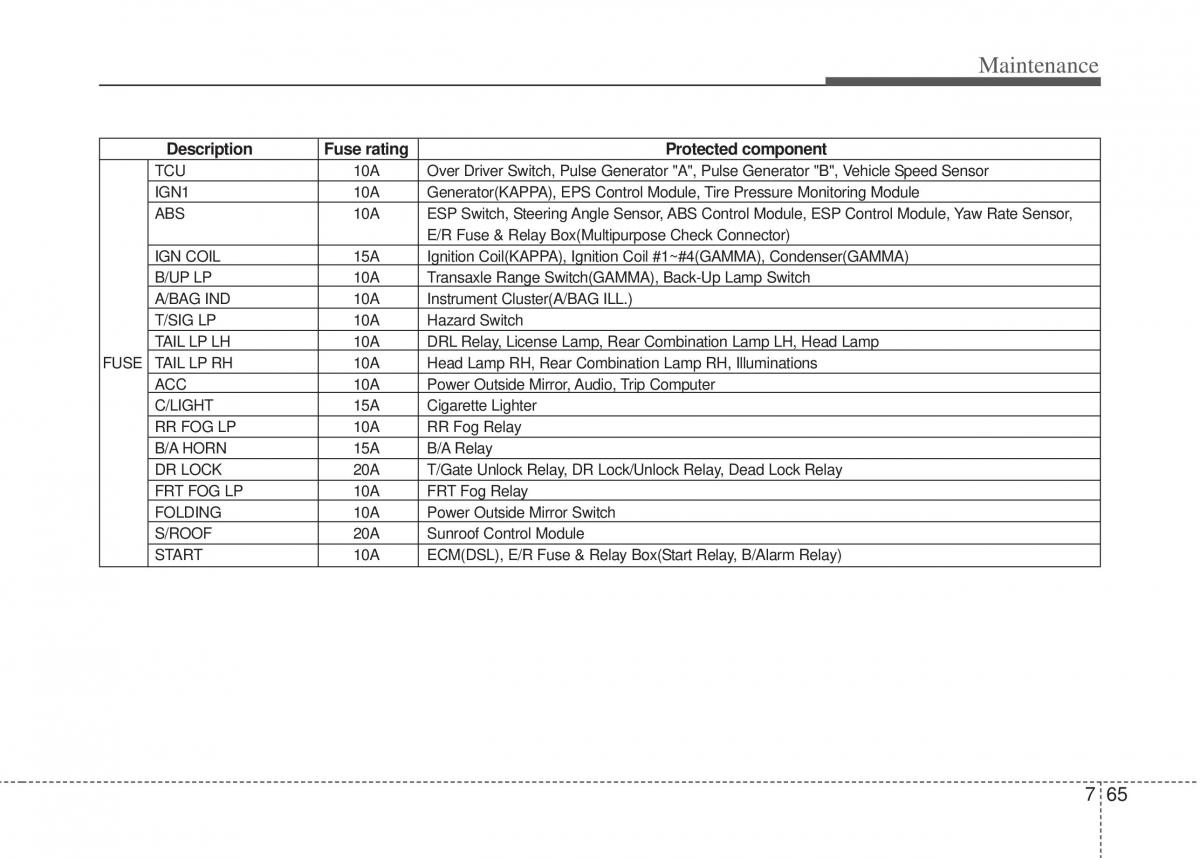

Maintenance DescriptionFuse rating Protected component TCU ehicle Speed Sensor10AOver Driver Switch, Pulse Generator "A", Pulse Generator "B", V IGN1 10A Generator(KAPPA), EPS Control Module, Tire Pressure Monitoring Module ABS 10A ESP Switch, Steering Angle Sensor, ABS Control Module, ESP Control Module, Yaw Rate Sensor, E/R Fuse & Relay Box(Multipurpose Check Connector) IGN COIL 15A Ignition Coil(KAPPA), Ignition Coil #1~#4(GAMMA), Condenser(GAMMA) B/UP LP 10A Transaxle Range Switch(GAMMA), Back-Up Lamp Switch A/BAG IND 10A Instrument Cluster(A/BAG ILL.) T/SIG LP 10A Hazard Switch TAIL LP LH 10A DRL Relay, License Lamp, Rear Combination Lamp LH, Head Lamp FUSE TAIL LP RH 10A Head Lamp RH, Rear Combination Lamp RH, Illuminations ACC 10A Power Outside Mirror, Audio, Trip Computer C/LIGHT 15A Cigarette Lighter RR FOG LP 10A RR Fog Relay B/A HORN 15A B/A Relay DR LOCK 20A T/Gate Unlock Relay, DR Lock/Unlock Relay, Dead Lock Relay FRT FOG LP 10A FRT Fog Relay FOLDING 10A Power Outside Mirror Switch S/ROOF 20A Sunroof Control Module START 10A ECM(DSL), E/R Fuse & Relay Box(Start Relay, B/Alarm Relay) 765
