text version of content this owner's manual page from owners manual to the vehicle Suzuki SX4 S-Cross, year of production 2013:

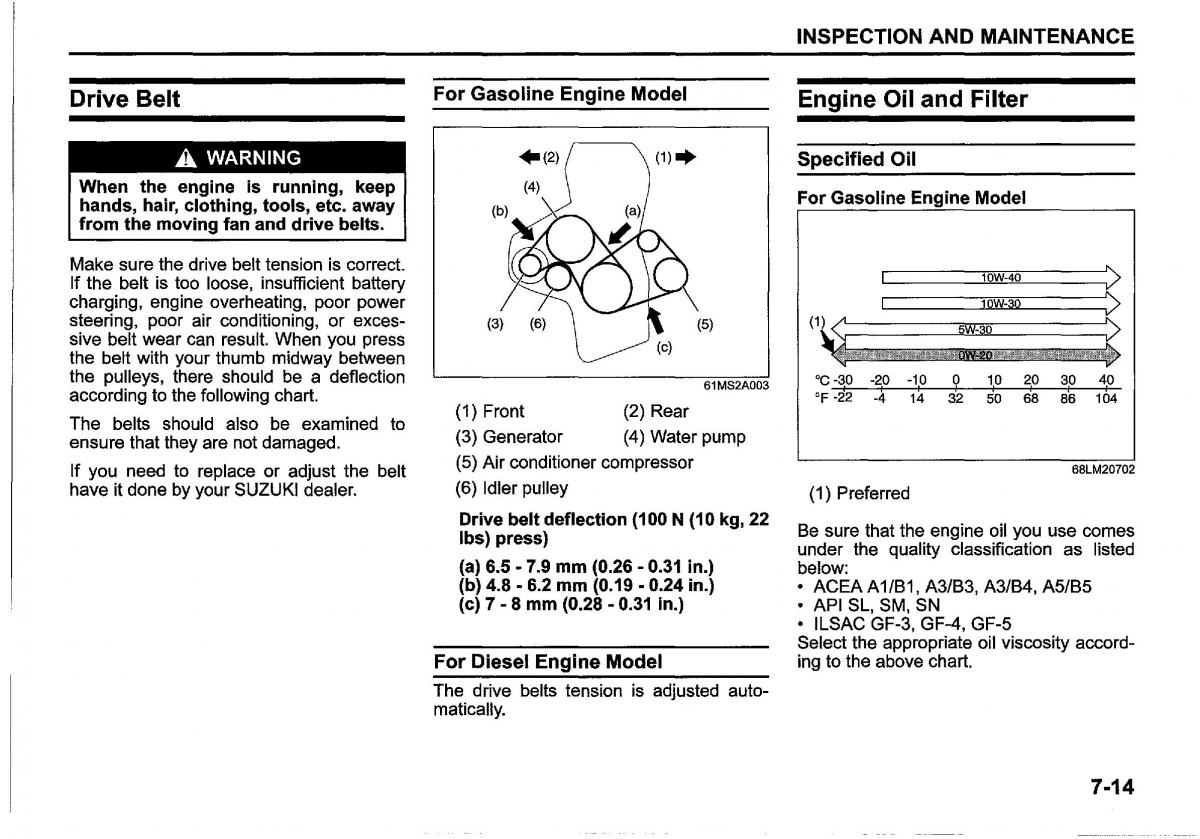

INSPECTION AND MAINTENANCE Drive Belt For Gasoline Engine Model Engine Oil and Filter A WARNING Specified Oil When the engine is running, keep For Gasoline Engine Model hands, hair, clothing, tools, etc. away from the moving fan and drive belts. Make sure the drive belt tension is correct. 10W-40 > If the belt is too loose, insufficient battery charging, engine overheating, poor power 10W-30 > or exces- steering, poor air conditioning, belt wear can result. When you press sive the belt with your thumb midway between the pulleys, there should be a deflection 61 MS2A003 following chart. according to the (1) Front (2) Rear The belts should also be examined to (3) Generator (4) Water pump ensure that they are not damaged. If you need to replace or adjust the belt (5) Air conditioner compressor have it done by your SUZUKI dealer. (6) Idler pulley Drive belt deflection (100 N (10 kg, 22 Ibs) press) (a) 6.5 - 7.9 mm (0.26 - 0.31 in.) (b) 4.8 - 6.2 mm (0.19 - 0.24 in.) (c) 7 - 8 mm (0.28 - 0.31 in.) For Diesel Engine Model The drive belts tension is adjusted auto- matically.
