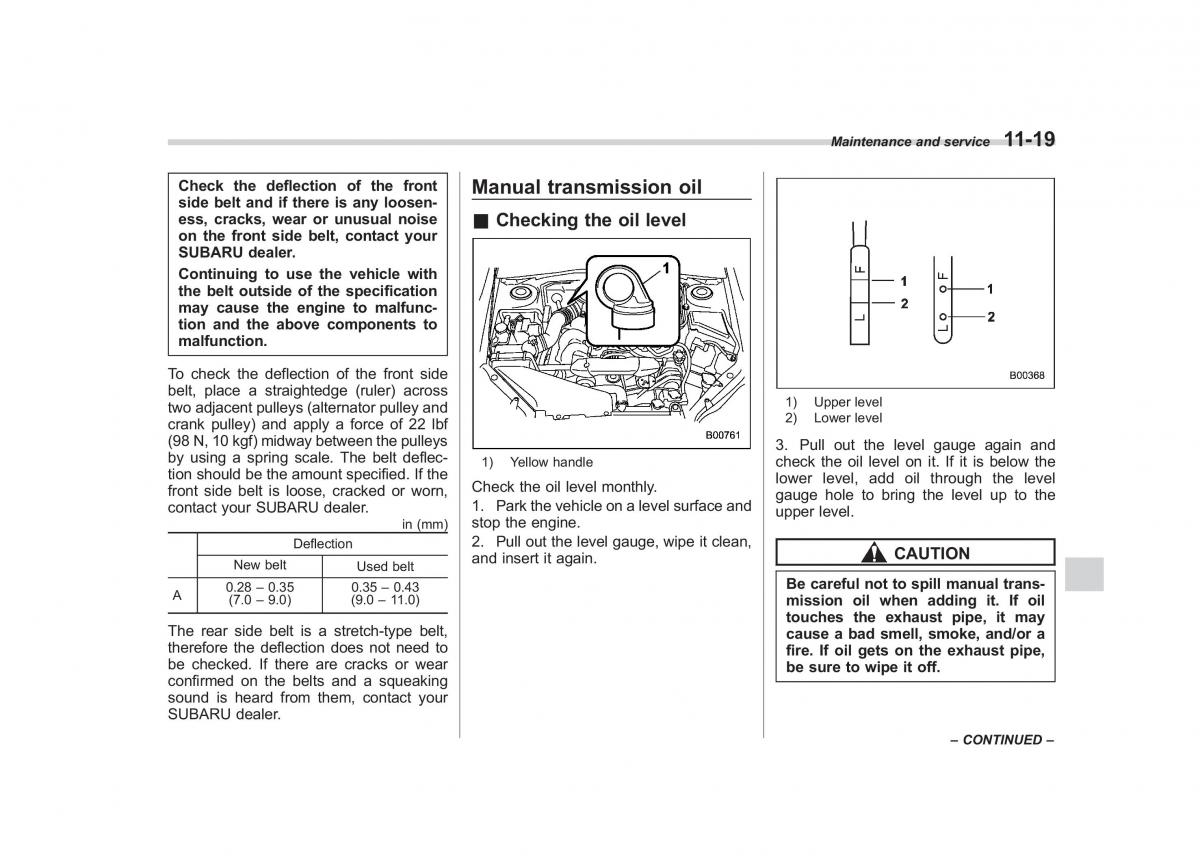

Maintenance and service 11-19
Check the deflection of the frontManual transmission oil
side belt and if there is any loosen-
ess, cracks, wear or unusual noise&Checking the oil level
on the front side belt, contact your
SUBARUdealer.
Continuing to use the vehicle with
the belt outside of the specification
may cause the engine to malfunc-
tion and the above components to
malfunction.
To check the deflection of the front side
belt, place a straightedge (ruler) across
two adjacent pulleys (alternator pulley and 1) Upper level
crank pulley) and apply a force of 22 lbf 2) Lower level
(98 N, 10 kgf) midway between the pulleys 3. Pull out the level gauge again and
by using a spring scale. The belt deflec-1)Yellow handlecheck the oil level on it. If it is below the
tion should be the amount specified. If the lower level, add oil through the level
front side belt is loose, cracked or worn,Check the oil level monthly.gauge hole to bring the level up to the
contact your SUBARU dealer. 1. Parkthevehicle on a level surface andupper level.
in (mm)stop the engine.
Deflection 2. Pull out the level gauge, wipe it clean,
and insert it again. CAUTION
Newbelt Used belt
0.28 – 0.35 0.35 – 0.43 Be careful not to spill manual trans-
A (7.0 – 9.0)(9.0 – 11.0) mission oil when adding it. If oil
touches the exhaust pipe, it may
The rear side belt is a stretch-type belt, cause a bad smell, smoke, and/or a
therefore the deflection does not need to fire. If oil gets on the exhaust pipe,
be checked. If there are cracks or wear be sure to wipe it off.
confirmed on the belts and a squeaking
sound is heard from them, contact your
SUBARUdealer.
– CONTINUED –
