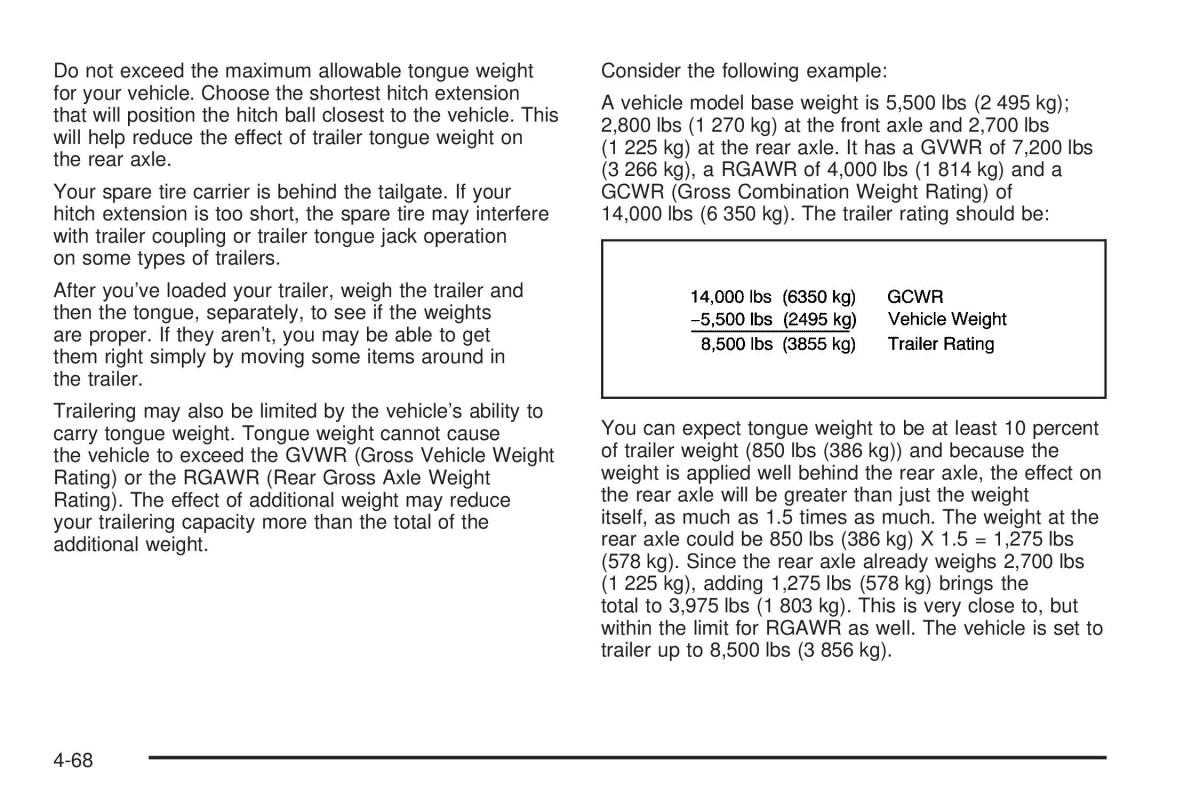

Do not exceed the maximum allowable tongue weightConsider the following example:
for your vehicle. Choose the shortest hitch extensionAvehicle model base weight is 5,500 lbs (2 495 kg);
that will position the hitch ball closest to the vehicle. This2,800 lbs (1 270 kg) at the front axle and 2,700 lbs
will help reduce the effect of trailer tongue weight on(1 225 kg) at the rear axle. It has a GVWR of 7,200 lbs
the rear axle. (3 266 kg), a RGAWR of 4,000 lbs (1 814 kg) and a
Your spare tire carrier is behind the tailgate. If yourGCWR(Gross Combination Weight Rating) of
hitch extension is too short, the spare tire may interfere14,000 lbs (6 350 kg). The trailer rating should be:
with trailer coupling or trailer tongue jack operation
on some types of trailers.
After you’ve loaded your trailer, weigh the trailer and
then the tongue, separately, to see if the weights
are proper. If they aren’t, you may be able to get
them right simply by moving some items around in
the trailer.
Trailering may also be limited by the vehicle’s ability toYou can expect tongue weight to be at least 10 percent
carry tongue weight. Tongue weight cannot causeof trailer weight (850 lbs (386 kg)) and because the
the vehicle to exceed the GVWR (Gross Vehicle Weightweight is applied well behind the rear axle, the effect on
Rating) or the RGAWR (Rear Gross Axle Weightthe rear axle will be greater than just the weight
Rating). The effect of additional weight may reduceitself, as much as 1.5 times as much. The weight at the
your trailering capacity more than the total of therear axle could be 850 lbs (386 kg) X 1.5 = 1,275 lbs
additional weight. (578 kg). Since the rear axle already weighs 2,700 lbs
(1 225 kg), adding 1,275 lbs (578 kg) brings the
total to 3,975 lbs (1 803 kg). This is very close to, but
within the limit for RGAWR as well. The vehicle is set to
trailer up to 8,500 lbs (3 856 kg).
4-68
