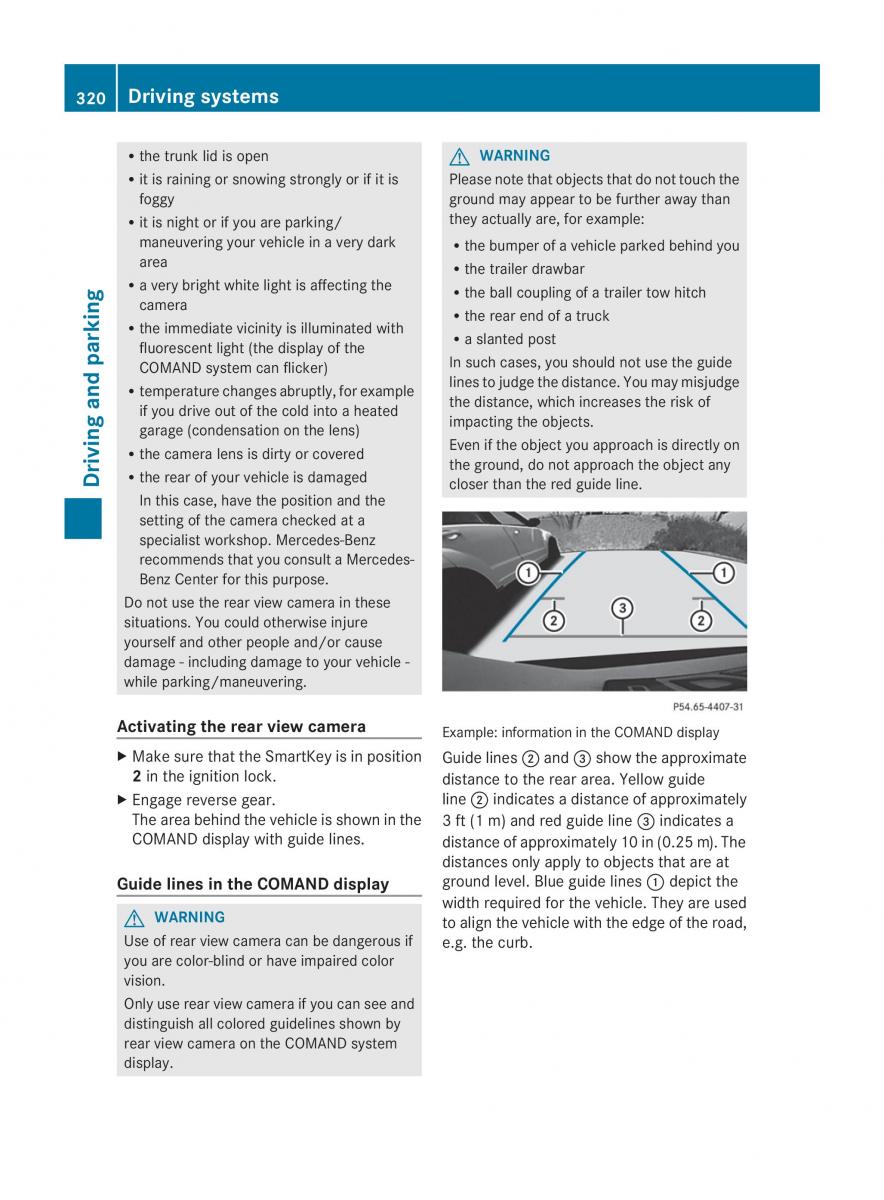

Driving systems
320
R
the trunk lid is open WARNING
G
R
it is raining or snowing strongly or if it is Please note that objects that do not touch the
foggy ground may appear to be further away than
they actually are, for example:
R
it is night or if you are parking/
maneuvering your vehicle in a very dark
R
the bumper of a vehicle parked behind you
area
R
the trailer drawbar
R
a very bright white light is affecting the
R
the ball coupling of a trailer tow hitch
camera
R
the rear end of a truck
R
the immediate vicinity is illuminated with
R
a slanted post
fluorescent light (the displa yoft he
In such cases, you should not use the guide
COMAND system can flicker)
lines to judge the distance. You may misjudge
R
temperature changes abruptly, for example
the distance, which increases the risk of
if you drive out of the cold into a heated
impacting the objects.
garage (condensation on the lens)
Even if the object you approach is directly on
R
the camera lens is dirty or covered
the ground, do not approach the object any
parking
R
and the rear of your vehicle is damaged
Driving
closer than the red guide line.
In this case, have the position and the
setting of the camera checked at a
specialist workshop. Mercedes-Benz
recommends that you consult a Mercedes-
Benz Center for this purpose.
Do not use the rear view camera in these
situations. You could otherwise injure
yourself and other people and/or cause
damage -i ncluding damage to your vehicle -
while parking/maneuvering.
Activating the rear view camera
Example: information in the COMAND display
X
Make sure tha tt he SmartKey is in position Guide lines ; and = show the approximate
2 in the ignition lock.
distance to the rear area. Yellow guide
X line ; indicates a distance of approximately
Engage reverse gear.
The area behind the vehicle is shown in the 3 ft (1 m) and red guide line = indicates a
COMAND display with guide lines.
distance of approximately 10 in (0.25 m) .T he
distances only apply to objects that are at
ground level. Blue guide lines : depict the
Guide lines in the COMAND display
width required for the vehicle. They are used
WARNING
G
to align the vehicle with the edge of the road,
Use of rear view camera can be dangerous if
e.g. the curb.
you are color-blind or have impaired color
vision.
Only use rear view camera if you can see and
distinguish all colored guidelines shown by
rear view camera on the COMAND system
display.
