text version of content this owner's manual page from owners manual to the vehicle VW Golf VI GTI, year of production 2008 - 2013:

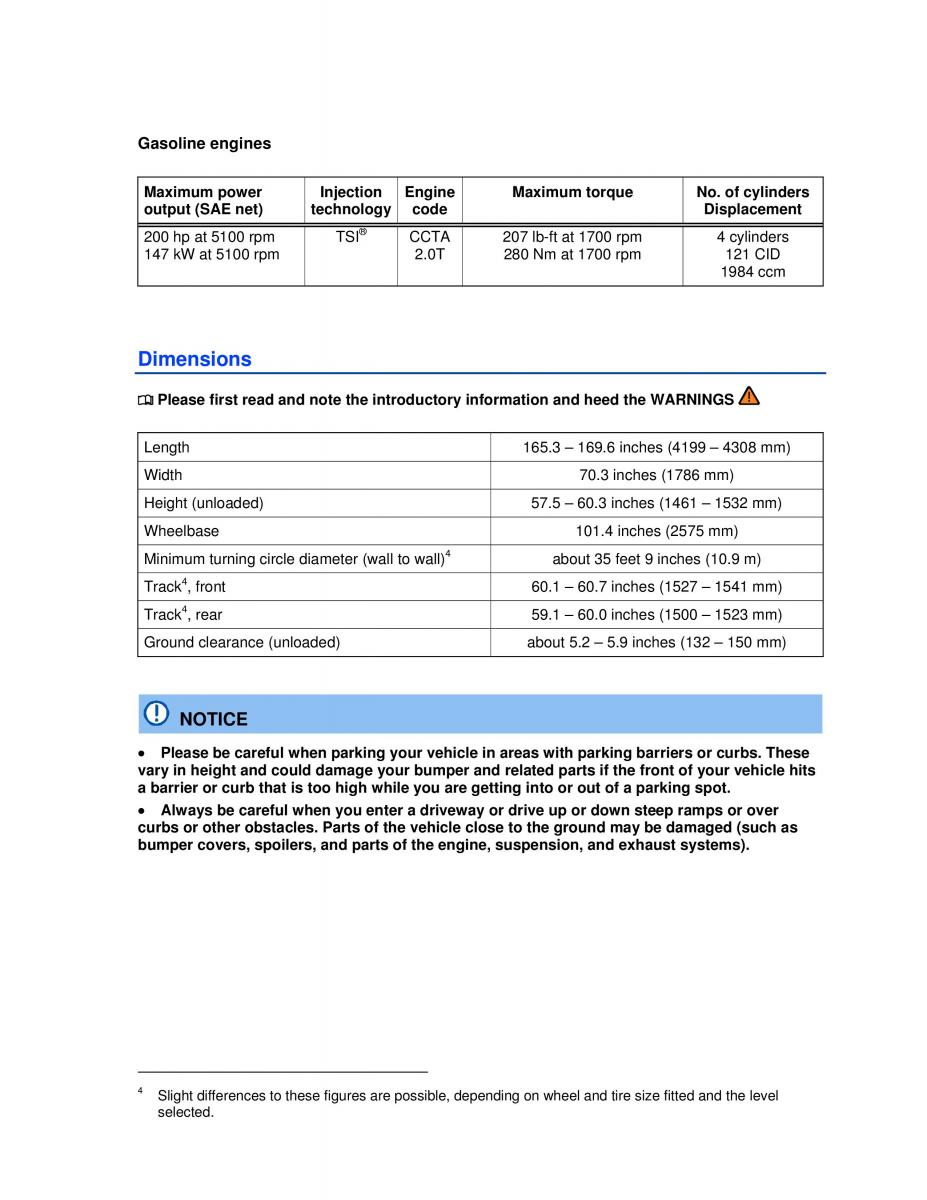

Gasoline engines Maximum power Injection Engine Maximum torque No. of cylinders output (SAE net) technology code Displacement 200 hp at 5100 rpm TSI® CCTA207 lb-ft at 1700 rpm 4 cylinders 147 kW at 5100 rpm 2.0T 280 Nm at 1700 rpm 121 CID 1984 ccm Dimensions ¤ Please first read and note the introductory information and heed the WARNINGS Length 165.3 – 169.6 inches (4199 – 4308 mm) Width 70.3 inches (1786 mm) Height (unloaded) 57.5 – 60.3 inches (1461 – 1532 mm) Wheelbase 101.4 inches (2575 mm) 4 Minimum turning circle diameter (wall to wall) about 35 feet 9 inches (10.9 m) 4 Track , front 60.1 – 60.7 inches (1527 – 1541 mm) 4 Track , rear 59.1 – 60.0 inches (1500 – 1523 mm) Ground clearance (unloaded) about 5.2 – 5.9 inches (132 – 150 mm) NOTICE x Please be careful when parking your vehicle in areas with parking barriers or cubs. rThese vary in height and could damage your bumper and related parts if the front of your vehicle hits a barrier or curb that is too high while you are getting into or out of a parking spot. x Always be careful when you enter a drivewa oyr drive up or down steep ramps or over curbs or other obstacles. Parts of the vehicle close to the ground may be damaged (such as bumper covers, spoilers, and parts of the engine, suspension, and exhaust systems). 4 Slight differences to these figures are possible, depending on wheel and tire size fitted an tdhe level selected.
