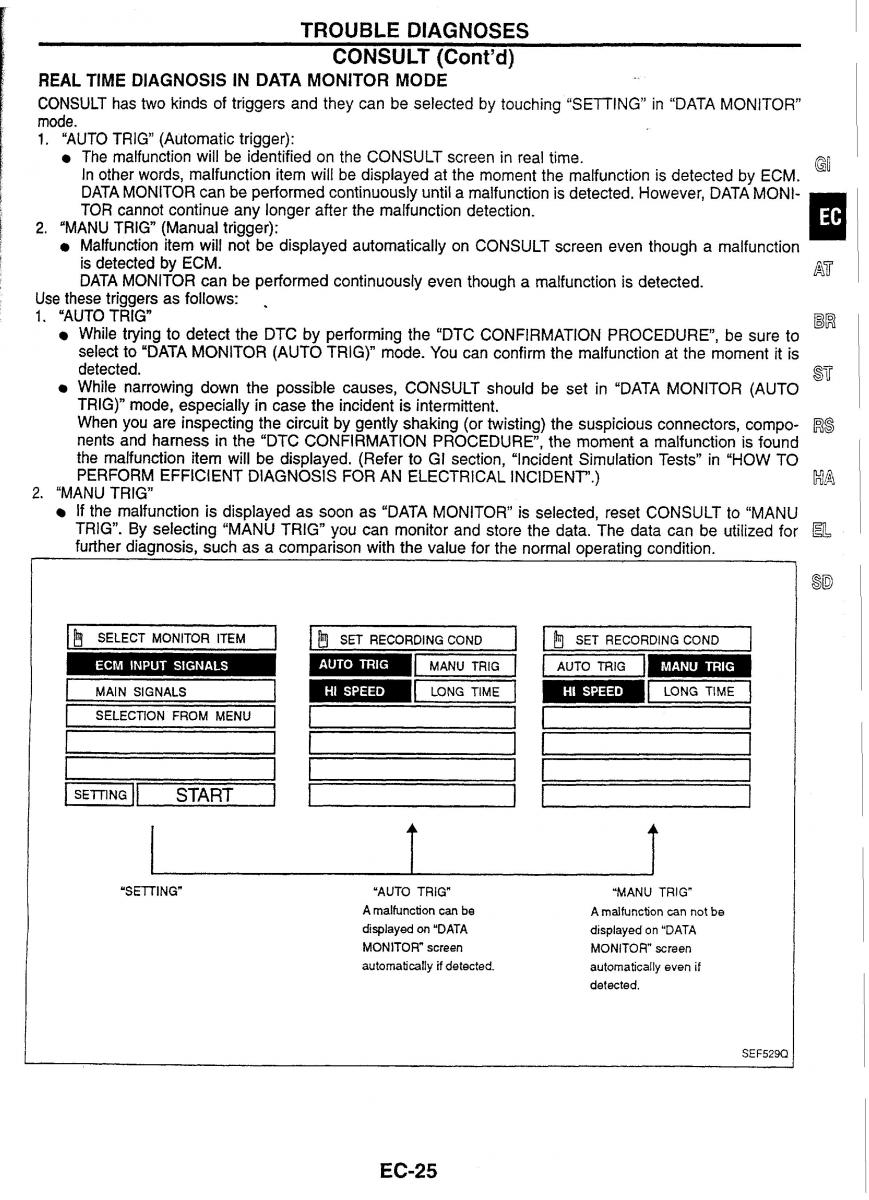

TROUBLE DIAGNOSES CONSULT (Cont'd) REAL TlME DIAGNOSIS IN DATA MONITOR MODE CONSULT has two kinds of triggers and they can be selected by touching "SETTINGJy in "DATA MONITOR" mode. 1. "AUTO TRIG" (Automatic trigger): The malfunction will be identified on the CONSULT screen in real time. GI In other words, malfunction item will be displayed at the moment the malfunction is detected by ECM. DATA MONITOR can be performed continuously until a malfunction is detected. However, DATA MONI- TOR cannot continue any longer after the malfunction detection. 2. "MANU TRIG" (Manual trigger): I Malfunction item will not be displayed automatically on CONSULT screen even though a malfunction is detected by ECM. AT DATA MONITOR can be performed continuously even though a malfunction is detected. Use these triggers as follows: . 1. "AUTO TRIG" BR While trying to detect the DTC by performing the "DTC CONFIRMATION PROCEDURE", be sure to select to "DATA MONITOR (AUTO TRIG)" mode. You can confirm the malfunction at the moment it is detected. ST While narrowing down the possible causes, CONSULT should be set in "DATA MONITOR (AUTO TRIG)" mode, especially in case the incident is intermittent. Rs When you are inspecting the circuit by gently shaking (or twisting) the suspicious connectors, compo- nents and harness in the "DTC CONFIRMATION PROCEDURE, the moment a malfunction is found the malfunction item will be displayed. (Refer to GI section, "Incident Simulation Tests" in "HOW TO PERFORM EFFICIENT DIAGNOSIS FOR AN ELECTRICAL INCIDENT'.) HA 2. "MANU TRIG" If the malfunction is displayed as soon as "DATA MONITOR" is selected, reset CONSULT to "MANU TRIG". By selecting "MANU TRIG" you can monitor and store the data. The data can be utilized for further diagnosis, such as a comparison with the value for the normal operating condition. I I SELECT MONITOR ITEM 1 I h SET RECORDING COND 1 1 k SET RECORDING CON0 1 I MANU TRIG I I MAIN SIGNALS I LONG TlME I SELECTION FROM MENU I I -11 START I "AUTO TRIG" "MANU TRIG" A malfunction can be A malfunction can not be displayed on "DATA displayed on "DATA MONITOR" screen MONITOR" screen automatically if detected. automatically even if detected.
