owners manual VW Golf VII

owners manual VW Golf VII - year of production: 2012 - VW Golf VII 7 SportWagen Variant owners manual EN

Document: pdf (6.46 MB) 439 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle VW Golf VII, year of production 2012:

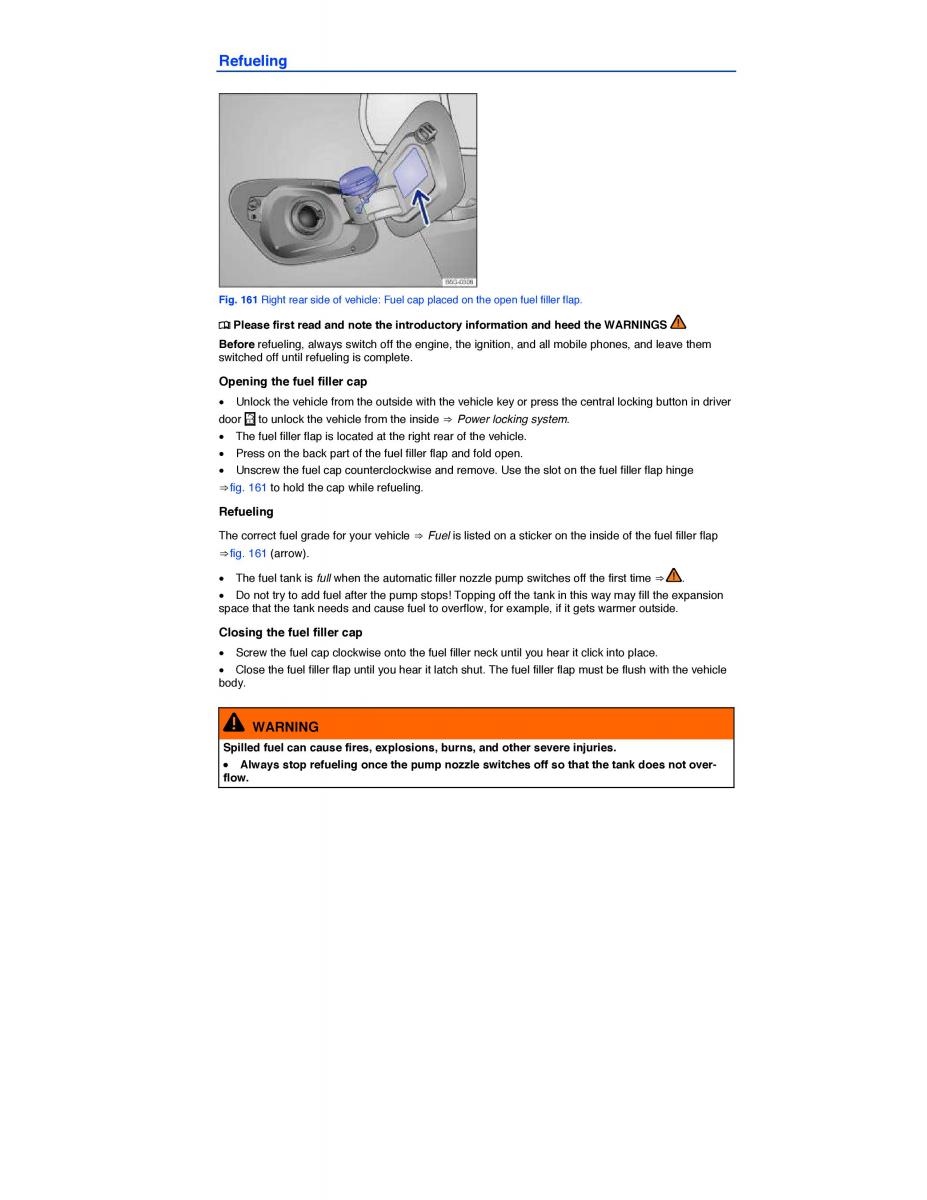

Refueling Fig. 161 Right rear side of vehicle: Fuel cap placed on the open fuel filler flap. ¤ Please first read and note the introductory information and heed the WARNINGS Before refueling, always switch off the engine, the ignition, and all mobile phones, and leave them switched off until refueling is complete. Opening the fuel filler cap x Unlock the vehicle from the outside with the vehicle key or press the central locking button in driver door to unlock the vehicle from the inside ⇒ Power locking system. x The fuel filler flap is located at the right rear of the vehicle. x Press on the back part of the fuel filler flap and fold open. x Unscrew the fuel cap counterclockwise and remove. Use the slot on the fuel filler flap hinge ⇒ fig. 161 to hold the cap while refueling. Refueling The correct fuel grade for your vehicle ⇒ Fuel is listed on a sticker on the inside of the fuel filler flap ⇒ fig. 161 (arrow). x The fuel tank ifus ll when the automatic filler nozzle pump switches off the first time ⇒ . x Do not try to add fuel after the pump stops! Topping off the tank in this way may fill the expansion space that the tank needs and cause fuel to overflow, for example, if it gets warmer outside. Closing the fuel filler cap x Screw the fuel cap clockwise onto the fuel filler neck until you hear it click into place. x Close the fuel filler flap until you hear it latch shut. The fuel filler flap must be flush with the vehicle body. WARNING Spilled fuel can cause fires, explosions, burns, and other severe injuries. x Always stop refueling once the pump nozzle switches off so that the tank does not over- flow.
