In the event of a breakdown

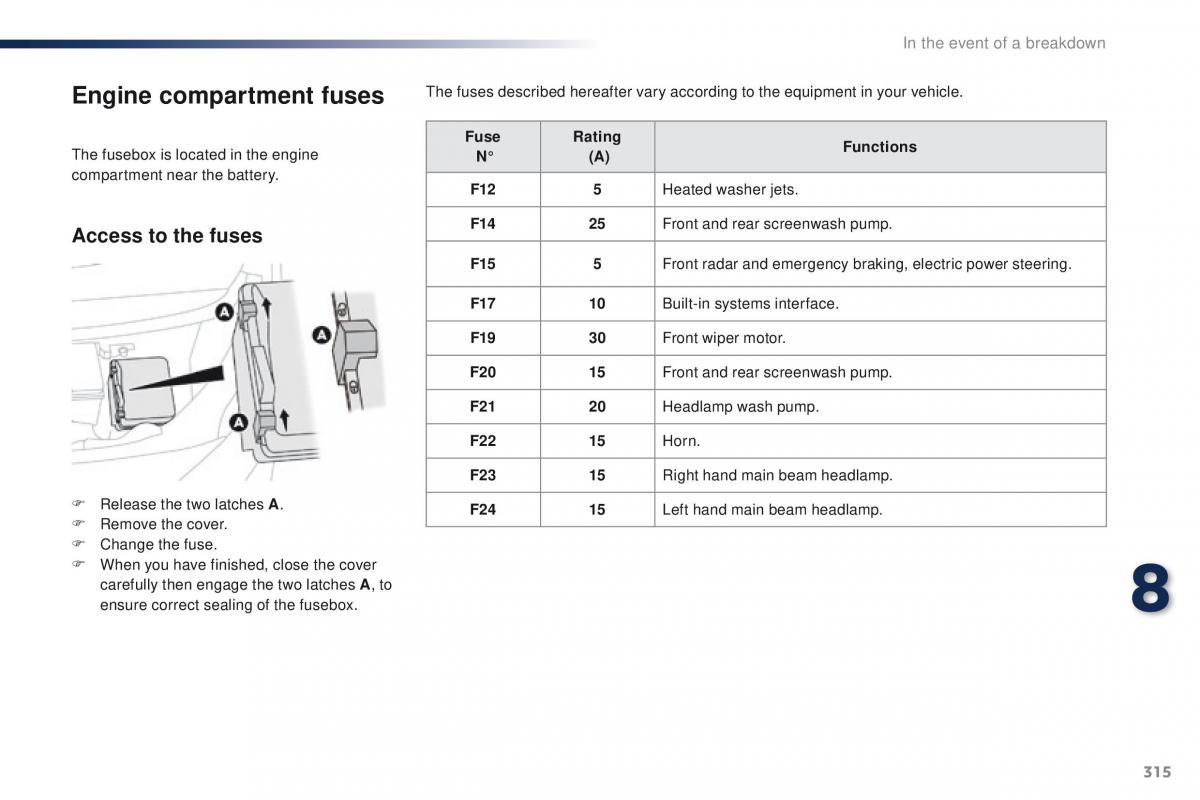

Engine compartment fuses The fuses described hereafter vary according to the equipment in your vehicle.
Fuse Rating Functions
The fusebox is located in the engine N° (A)
compartment near the battery. F12 5 Heated washer jets.
Access to the fuses F14 25 Front and rear screenwash pump.
F15 5 Front radar and emergency braking, electric power steering.
F17 10 Built-in systems interface.
F19 30 Front wiper motor.
F20 15 Front and rear screenwash pump.
F21 20 Headlamp wash pump.
F22 15 Horn.
F23 15 Right hand main beam headlamp.
F Release the two latches A. F24 15 Left hand main beam headlamp.
F Remove the cover.
F Change the fuse.
F When you have finished, close the cover
carefully then engage the two latches A, to
ensure correct sealing of the fusebox. 8
315
Traveller-VP_en_Chap08_en-cas-de-panne_ed01-2016
