text version of content this owner's manual page from owners manual to the vehicle Lexus GX, year of production 2009:

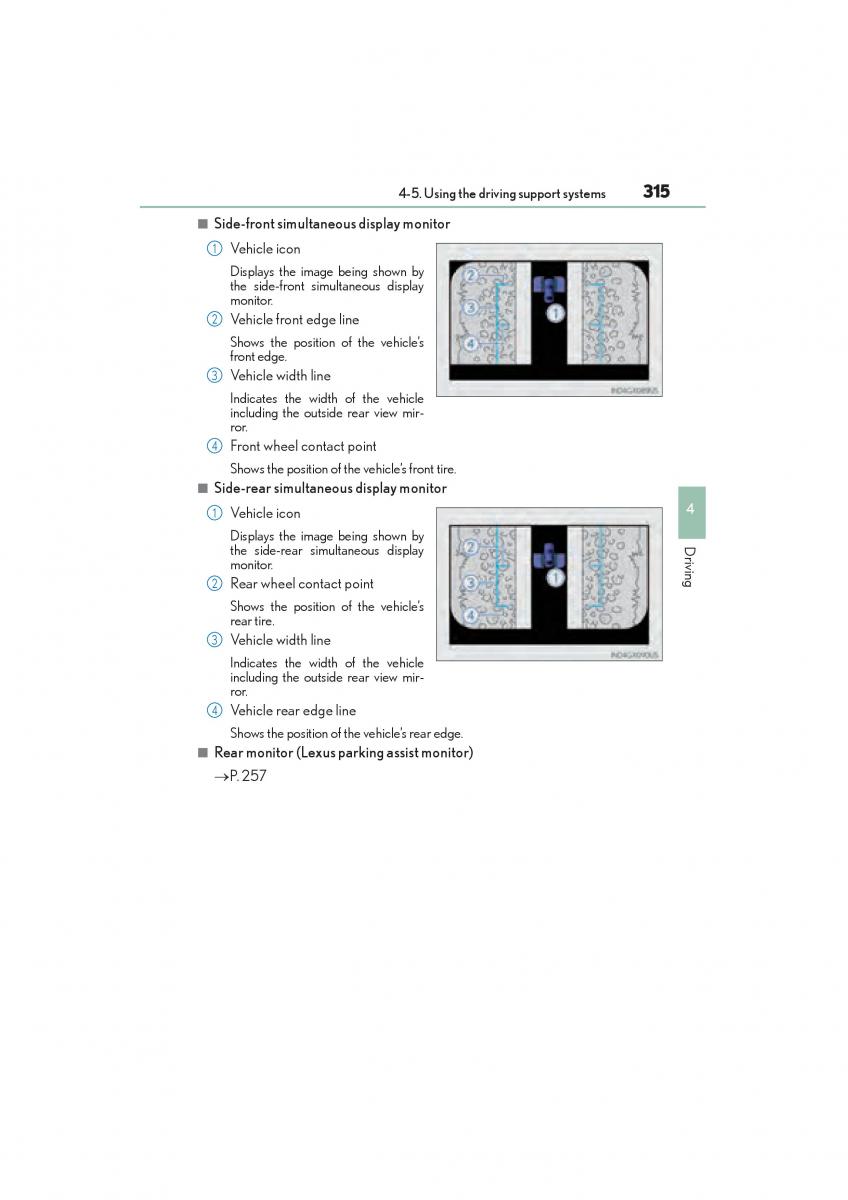

GX460_OM_OM60L72U_(U).book Page 315 Friday, May 16, 2014 3:03 PM 4-5. Using the driving support systems315 ■ Side-front simultaneous display monitor 1 Vehicle icon Displays the image being shown by the side-front simultaneous display monitor. 2 Vehicle front edge line Shows the position of the vehicle’s front edge. 3 Vehicle width line Indicates the width of the vehicle including the outside rear view mir- ror. 4 Front wheel contact point Shows the position of the vehicle’s front tire. ■ Side-rear simultaneous display monitor 1 Vehicle icon 4 Displays the image being shown by the side-rear simultaneous display Dr monitor. ivi n 2 Rear wheel contact point g Shows the position of the vehicle’s rear tire. 3 Vehicle width line Indicates the width of the vehicle including the outside rear view mir- ror. 4 Vehicle rear edge line Shows the position of the vehicle’s rear edge. ■ Rear monitor (Lexus parking assist monitor) →P. 257 GX460_OM_OM60L72U_(U)
