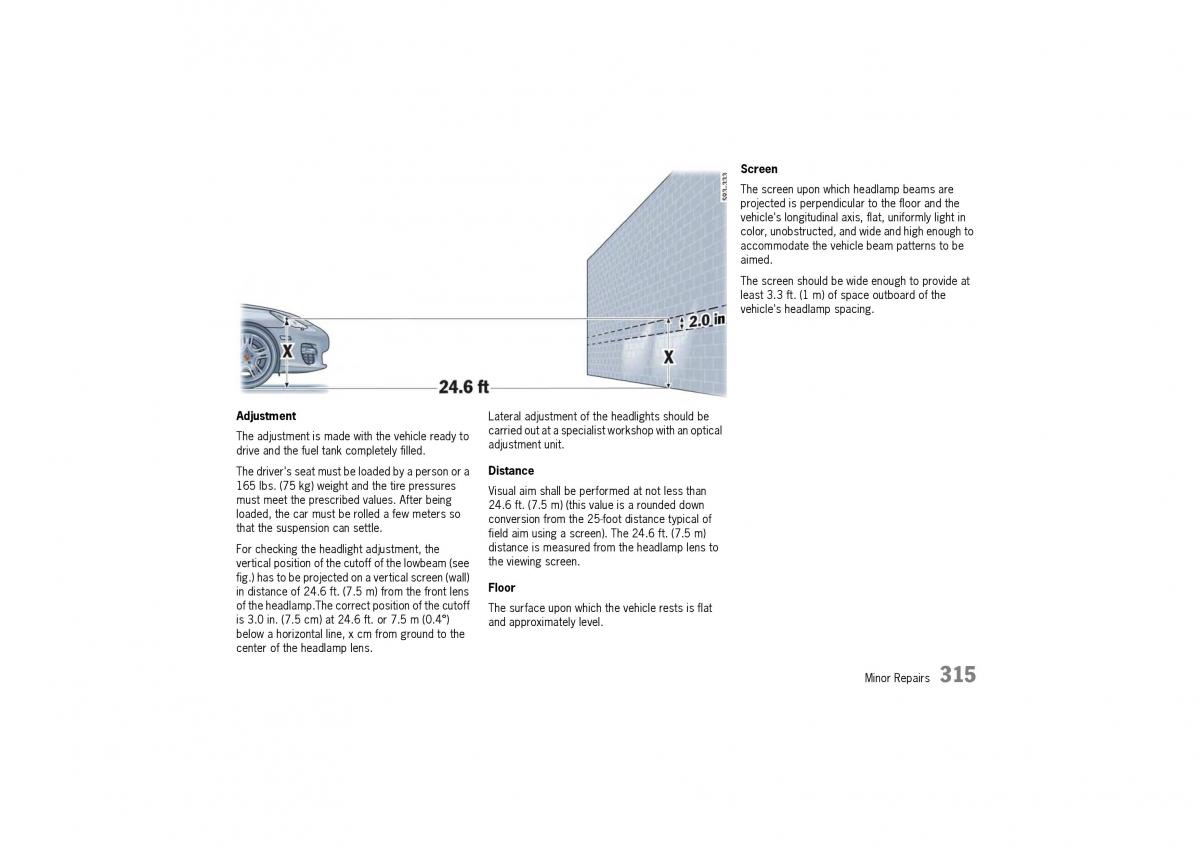

Screen
The screen upon which headlamp beams are
projected is perpendicular to the floor and the
vehicle's longitudinal axis, flat, uniformly light in
color, unobstructed, and wide and high enough to
accommodate the vehicle beam patterns to be
aimed.
The screen should be wide enough to provide at
least 3.3 ft. (1 m) of space outboard of the
vehicle's headlamp spacing.
Adjustment Lateral adjustment of the headlights should be
The adjustment is made with the vehicle ready to carried out at a specialist workshop with an optical
drive and the fuel tank completely filled.adjustment unit.
The driver's seat must be loaded by a person or a Distance
165lbs. (75 kg) weight and the tire pressures Visual aim shall be performed at not less than
must meet the prescribed values. After being 24.6 ft. (7.5 m) (this value is a rounded down
loaded, the car must be rolled a few meters so conversion from the 25-foot distance typical of
that the suspension can settle.field aim using a screen). The 24.6 ft. (7.5 m)
For checking the headlight adjustment, the distance is measured from the headlamp lens to
vertical position of the cutoff of the lowbeam (see the viewing screen.
fig.) has to be projected on a vertical screen (wall) Floor
in distance of 24.6 ft. (7.5 m) from the front lens
of the headlamp.The correct position of the cutoff The surface upon which the vehicle rests is flat
is 3.0 in. (7.5 cm) at 24.6 ft. or 7.5 m (0.4°) and approximately level.
below a horizontal line, x cm from ground to the
center of the headlamp lens.
Minor Repairs 315
