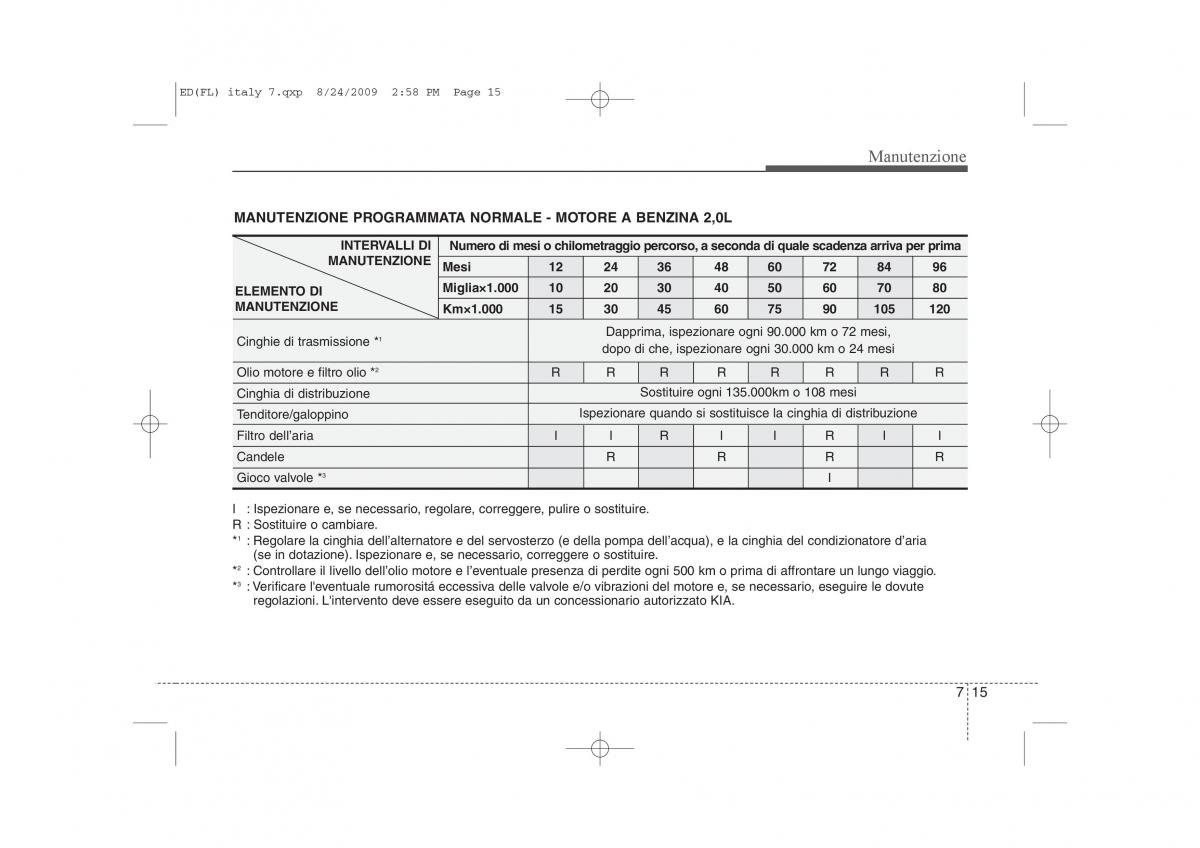

ED(FL) italy 7.qxp 8/24/2009 2:58 PM Page 15
Manutenzione
MANUTENZIONE PROGRAMMATA NORMALE - MOTORE A BENZINA 2,0L
INTERVALLI DI Numero di mesi o chilometraggio percorso, a seconda di quale scadenza arriva per prima
MANUTENZIONE Mesi 12 24 36 48 60 72 84 96
ELEMENTO DI Miglia×1.000 10 20 30 40 50 60 70 80
MANUTENZIONE Km×1.000 15 30 45 60 75 90 105 120
Dapprima, ispezionare ogni 90.000 km o 72 mesi,
1
Cinghie di trasmissione * dopo di che, ispezionare ogni 30.000 km o 24 mesi
2
Olio motore e filtro olio * RRRRRRRR
Cinghia di distribuzione Sostituire ogni 135.000km o 108 mesi
Tenditore/galoppino Ispezionare quando si sostituisce la cinghia di distribuzione
Filtro dell’aria I I R I I R I I
Candele R R R R
3
Gioco valvole * I
I : Ispezionare e, se necessario, regolare, correggere, pulire o sostituire.
R : Sostituire o cambiare.
1
* : Regolare la cinghia dell’alternatore e del servosterzo (e della pompa dell’acqua), e la cinghia del condizionatore d’aria
(se in dotazione). Ispezionare e, se necessario, correggere o sostituire.
2
* : Controllare il livello dell’olio motore e l’eventuale presenza di perdite ogni 500 km o prima di affrontare un lungo viaggio.
3
* :Verificare l'eventuale rumorositá eccessiva delle valvole e/o vibrazioni del motore e, se necessario, eseguire le dovute
regolazioni. L'intervento deve essere eseguito da un concessionario autorizzato KIA.
715
