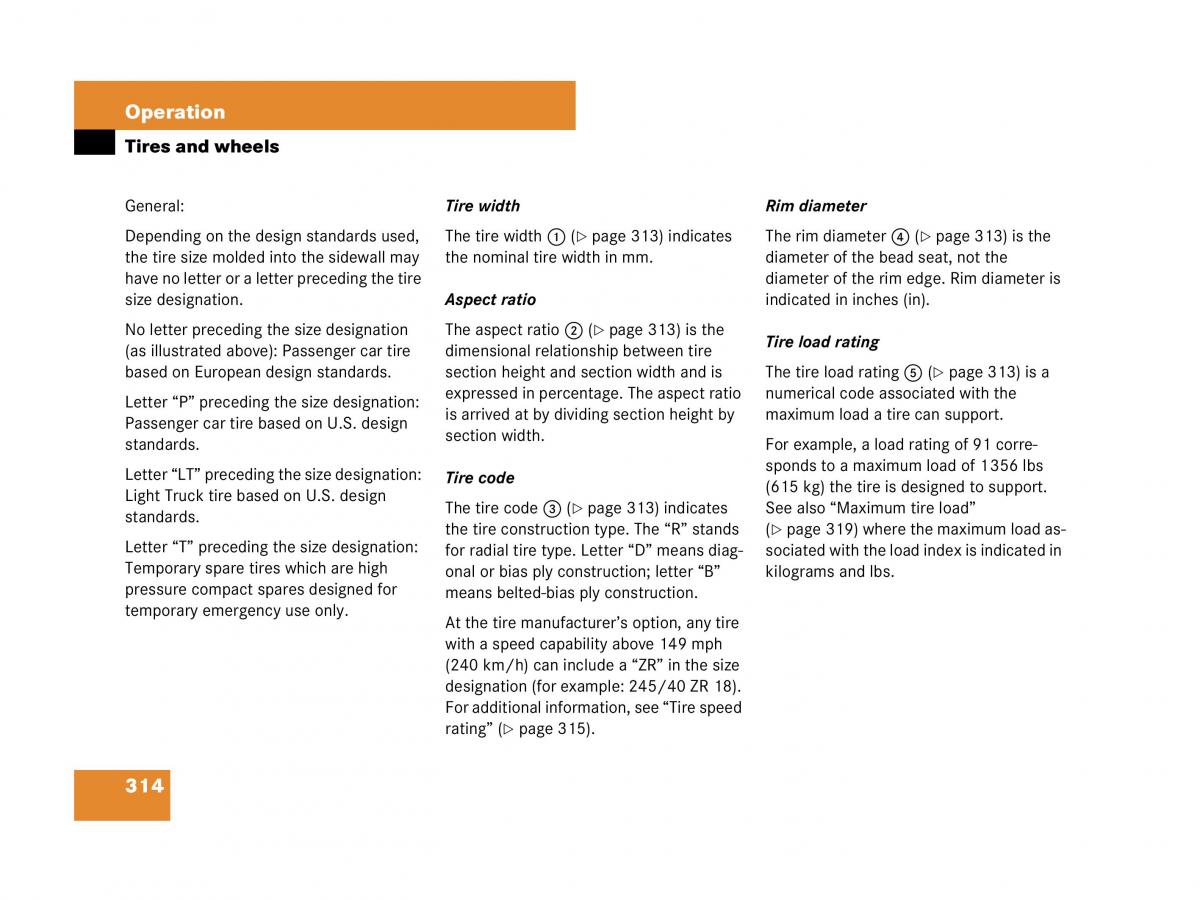

text version of content this owner's manual page from owners manual to the vehicle Mercedes SL, year of production 2001 - 2012:

Operation Tires and wheels General: Tire width Rim diameter The tire width 1 ( Depending on the design standards used, page313) indicates The rim diameter4 ( page 313) is the the tire size molded into the sidewall may the nominal tire width in mm. diameter of the bead seat, not the have no letter or a letter preceding the tire diameter of the rim edge. Rim diameter is size designation. Aspect ratio indicated in inches (in). No letter preceding the size designation The aspect ratio2 ( page 313) is the Tire load rating (as illustrated above): Passenger car tire dimensional relationship between tire based on European design standards.section height and section width and is The tire load rating5 ( page 313) is a Letter “P” preceding the size designation: expressed in percentage. The aspect ratio numerical code associated with the Passenger car tire based on U.S. design is arrived at by dividing section height by maximum load a tire can support. standards. section width. For example, a load rating of 91 corre- Letter “LT” preceding the size designation: Tire code sponds to a maximum load of 1356 lbs Light Truck tire based on U.S. design (615 kg) the tire is designed to support. The tire code3 ( standards. page313) indicates See also “Maximum tire load” the tire construction type. The “R” stands ( page 319) where the maximum load as- Letter “T” preceding the size designation: for radial tire type. Letter “D” means diag-sociated with the load index is indicated in Temporary spare tires which are high onal or bias ply construction; letter “B” kilograms and lbs. pressure compact spares designed for means belted-bias ply construction. temporary emergency use only. At the tire manufacturers option, any tire with a speed capability above 149 mph (240 km/h) can include a “ZR” in the size designation (for example: 245/40 ZR 18). For additional information, see “Tire speed rating” ( page315). 314
