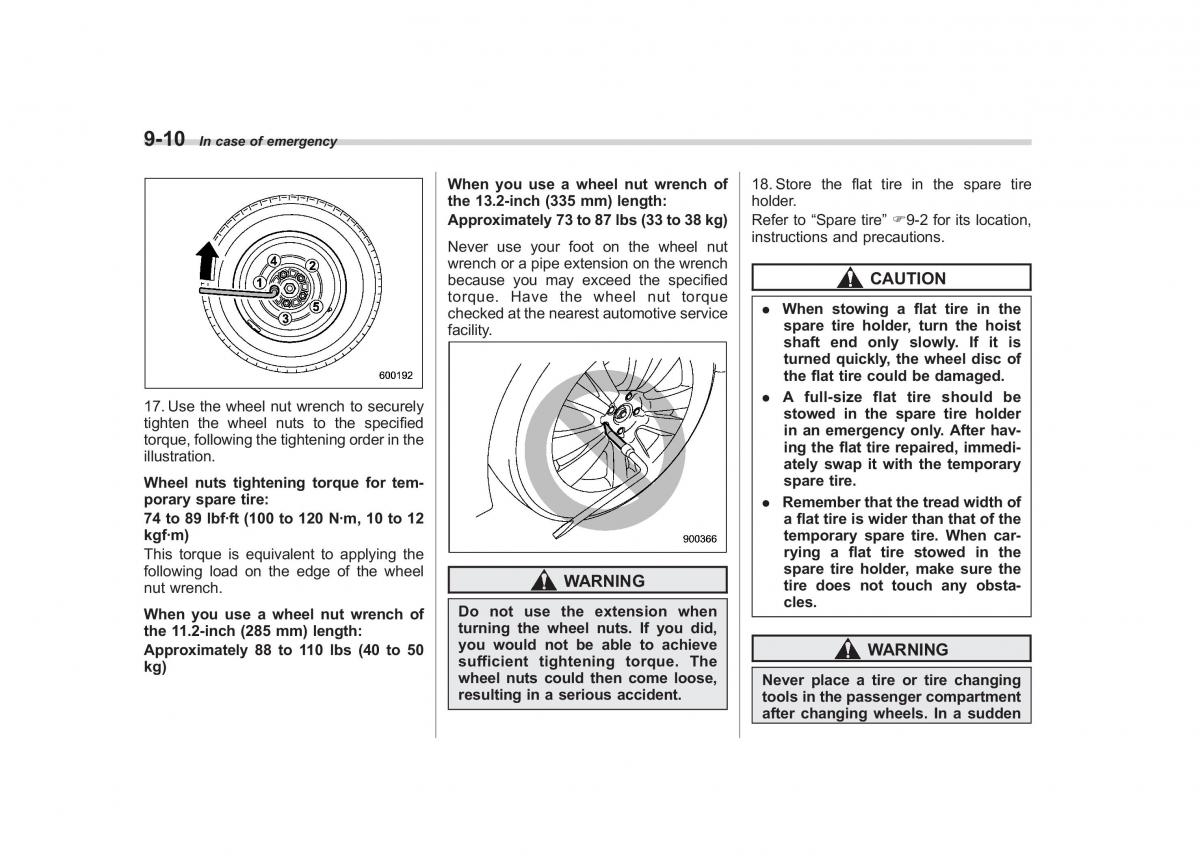

9-10 Incaseofemergency
When you use a wheel nut wrench of18.Store the flat tire in the spare tire
the 13.2-inch (335 mm) length:holder.
Approximately73to87lbs(33to38kg)Refer to “Spare tire” F9-2 for its location,
Never use your foot on the wheel nutinstructions and precautions.
wrench or a pipe extension on the wrench
because you may exceed the specified CAUTION
torque. Have the wheel nut torque
checkedatthenearestautomotiveservice. When stowing a flat tire in the
facility. spare tire holder, turn the hoist
shaft end only slowly. If it is
turned quickly, the wheel disc of
the flat tire could be damaged.
17.Use the wheel nut wrench to securely . A full-size flat tire should be
tighten the wheel nuts to the specified stowed in the spare tire holder
torque, following the tightening order in the in an emergency only. After hav-
illustration. ing the flat tire repaired, immedi-
ately swap it with the temporary
Wheel nuts tightening torque for tem- spare tire.
porary spare tire: . Rememberthatthetreadwidthof
74 to 89 lbf·ft (100 to 120 N·m, 10 to 12 a flat tire is wider than that of the
kgf·m) temporary spare tire. When car-
This torque is equivalent to applying the rying a flat tire stowed in the
following load on the edge of the wheel spare tire holder, make sure the
nut wrench. WARNING tire does not touch any obsta-
Do not use the extension whencles.
When you use a wheel nut wrench of
the 11.2-inch (285 mm) length:turning the wheel nuts. If you did,
Approximately 88 to 110 lbs (40 to 50you would not be able to achieveWARNING
kg) sufficient tightening torque. The
wheel nuts could then come loose,Never place a tire or tire changing
resulting in a serious accident.tools in the passenger compartment
after changing wheels. In a sudden
