text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 156, year of production 1997 - 2006:

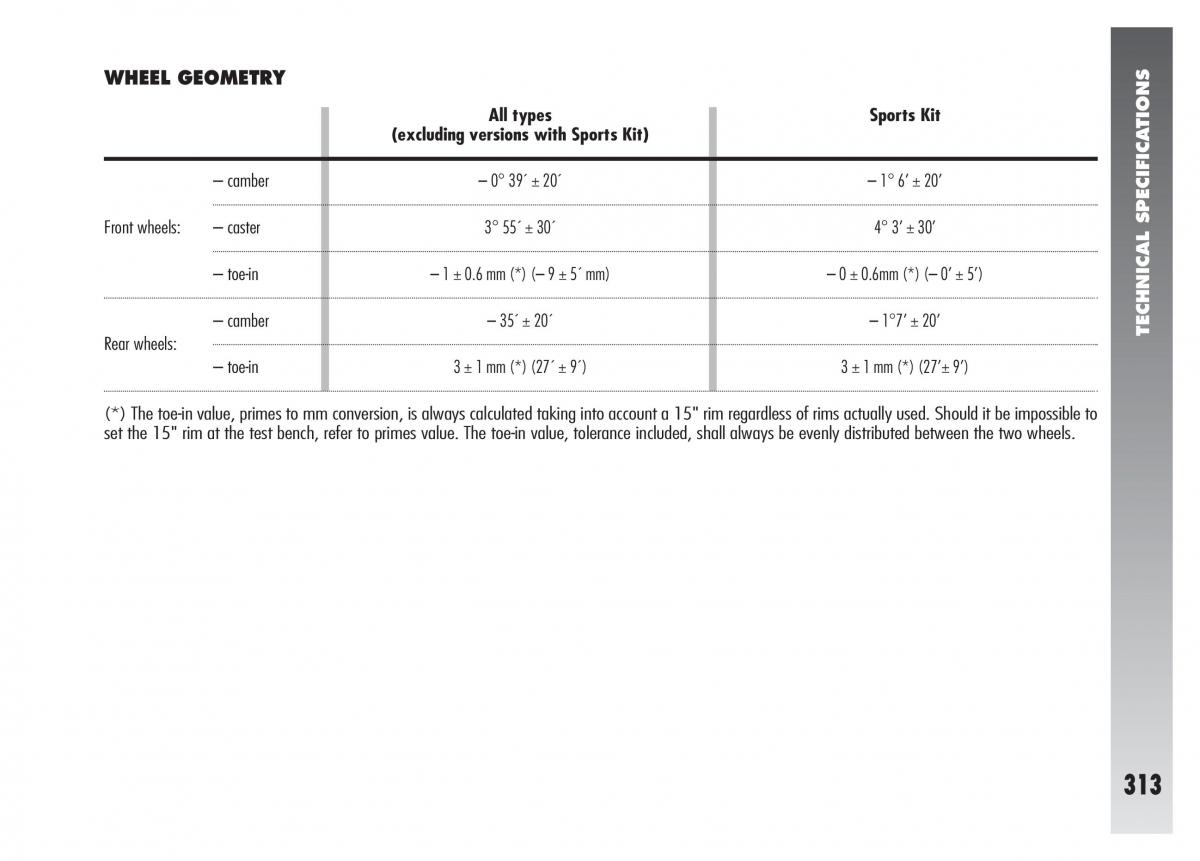

WHEEL GEOMETRY All types Sports Kit TIONS (excluding versions with Sports Kit) – camber – 0° 39´ ± 20´ – 1° 6’ ± 20’ Front wheels:– caster 3° 55´ ± 30´ 4° 3’ ± 30’ – toe-in – 1 ± 0.6 mm (*) (– 9 ± 5´ mm) – 0 ± 0.6mm (*) (– 0’ ± 5’) – camber – 35´ ± 20´ – 1°7’ ± 20’ Rear wheels: TECHNICAL SPECIFICA – toe-in 3 ± 1 mm (*) (27´ ± 9´) 3 ± 1 mm (*) (27’± 9’) (*) The toe-in value, primes to mm conversion, is always calculated taking into account a 15" rim regardless of rims actually used. Should it be impossible to set the 15" rim at the test bench, refer to primes value. The toe-in value, tolerance included, shall always be evenly distributed between the two wheels. 313
