text version of content this owner's manual page from owners manual to the vehicle VW Jetta, year of production 2010:

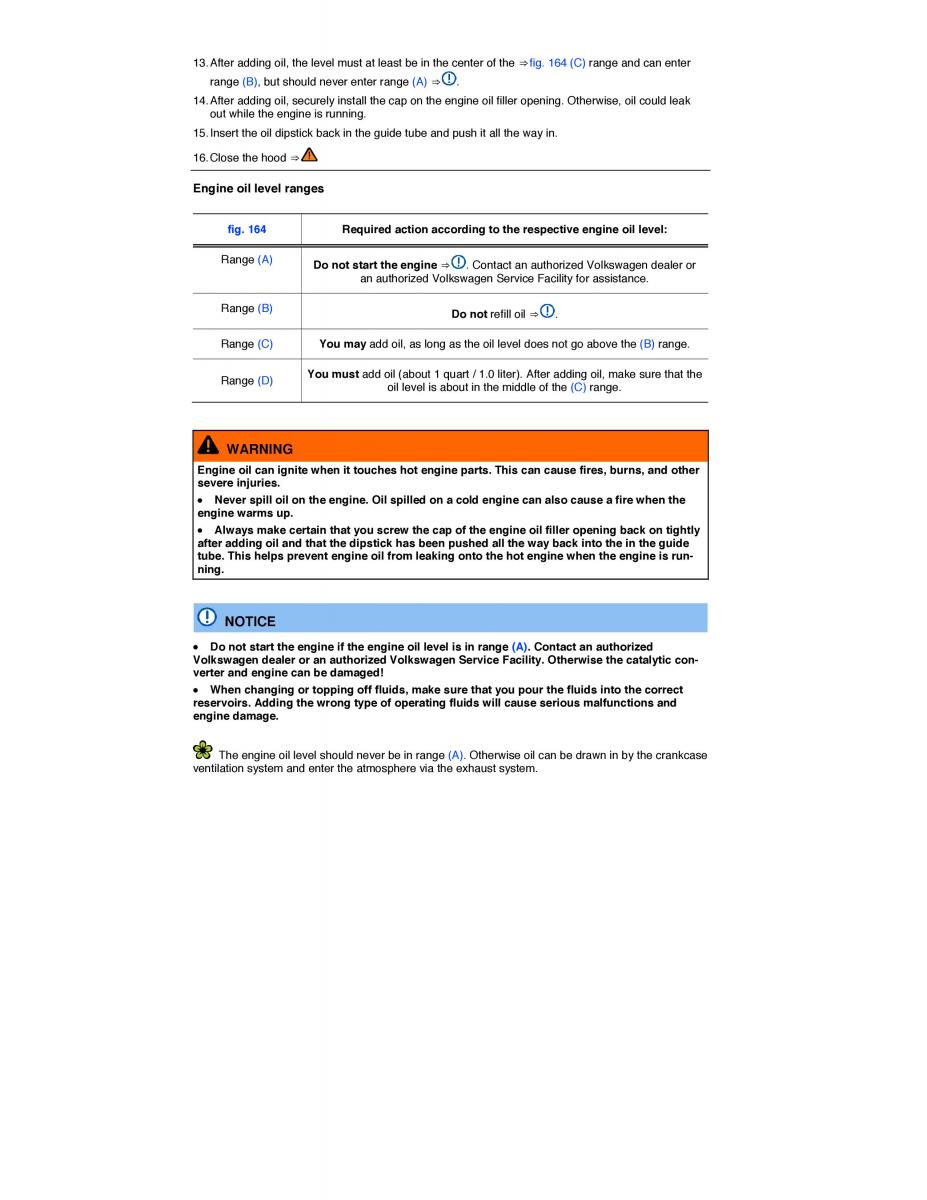

13. After adding oil, the level must at least be in the center of the ⇒ fig. 164 (C) range and can enter range (B), but should never enter range (A) ⇒ . 14. After adding oil, securely install the cap on the engine oil filler opening. Otherwise, oil could leak out while the engine is running. 15. Insert the oil dipstick back in the guide tube and push it all the way in. 16. Close the hood ⇒ Engine oil level ranges fig. 164 Required action according to the respective engine oil level: Range (A) Do not start the engine ⇒ . Contact an authorized Volkswagen dealer or an authorized Volkswagen Service Facility for assistance. Range (B) Do not refill oil ⇒ . Range (C) You may add oil, as long as the oil level does not go above the (B) range. Range (D) You must add oil (about 1 quart / 1.0 liter). After adding oil, make sure that the oil level is about in the middle of the (C) range. WARNING Engine oil can ignite when it touches hot engine parts. This can cause fires, burns, and other severe injuries. x Never spill oil on the engine. Oil spilled on a cld oengine can also cause a fire when the engine warms up. x Always make certain that you screw the cap of the engine oil filler opening back on tightl y after adding oil and that the dipstick has been pushed all the way back into the in the guide tube. This helps prevent engine oil from leaking onto the hot engine when the engine is run- ning. NOTICE x Do not start the engine if the engine oil level is in range(A ). Contact an authorized Volkswagen dealer or an authorized Volkswagen Service Facility. Otherwise the catalytic con- verter and engine can be damaged! x When changing or topping off fluids, make sure that you pour the fluids into the correct reservoirs. Adding the wrong type of operating fluids will cause serious malfunctions and engine damage. The engine oil level should never be in range (A). Otherwise oil can be drawn in by the crankcase ventilation system and enter the atmosphere via the exhaust system.
