owners manual VW Golf VII

owners manual VW Golf VII - year of production: 2012 - VW Golf VII 7 SportWagen Variant owners manual EN

Document: pdf (6.46 MB) 439 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle VW Golf VII, year of production 2012:

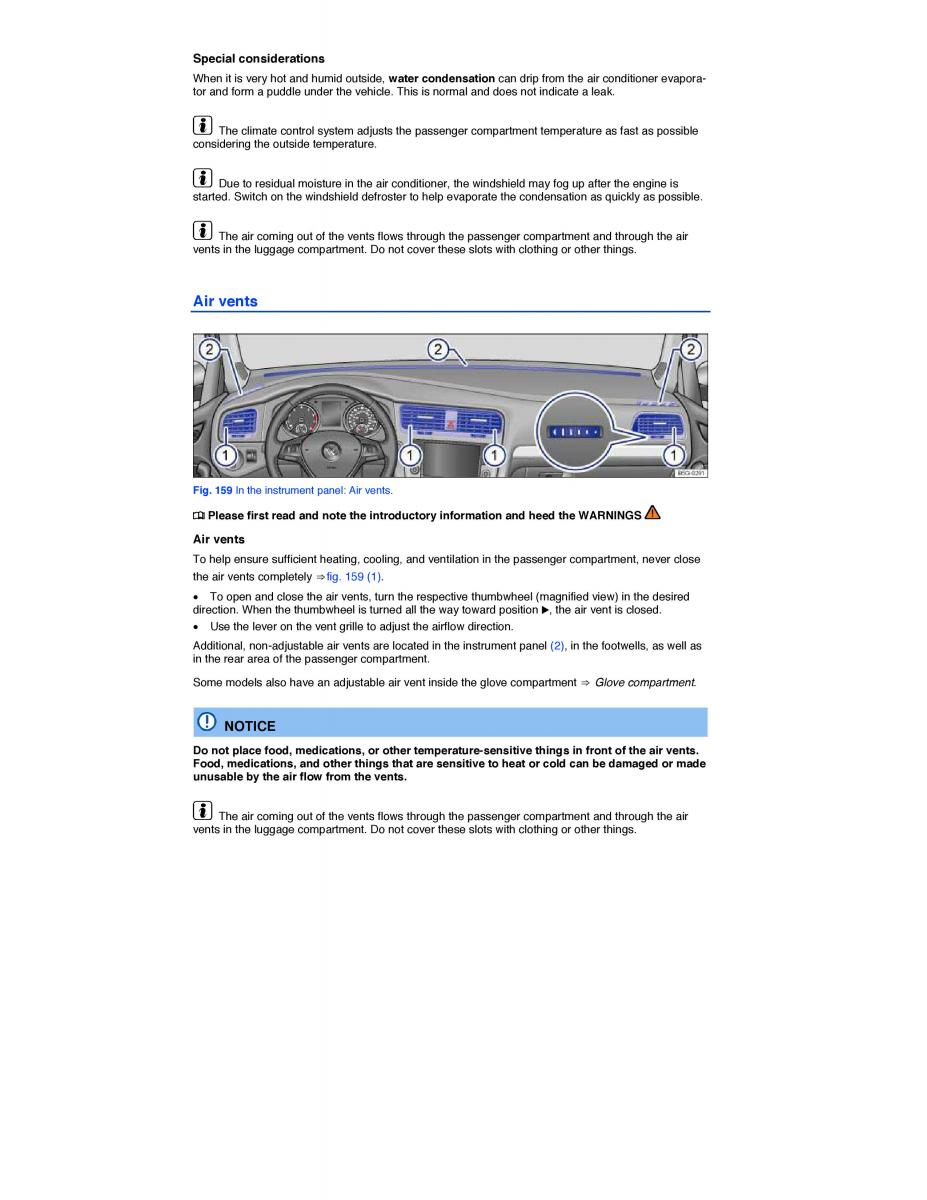

Special considerations When it is very hot and humid outside, water condensation can drip from the air conditioner evapora- tor and form a puddle under the vehicle. This is normal and does not indicate a leak. The climate control system adjusts the passenger compartment temperature as fast as possible considering the outside temperature. Due to residual moisture in the air conditioner, the windshield may fog up after the engine is started. Switch on the windshield defroster to help evaporate the condensation as quickly as possible. The air coming out of the vents flows through the passenger compartment and through the air vents in the luggage compartment. Do not cover these slots with clothing or other things. Air vents Fig. 159 In the instrument panel: Air vents. ¤ Please first read and note the introductory information and heed the WARNINGS Air vents To help ensure sufficient heating, cooling, and ventilation in the passenger compartment, never close the air vents completely ⇒ fig. 159 (1). x To open and close the air vents, turn the respective thumbwheel (magnified view) in the desired direction. When the thumbwheel is turned all the way toward position b, the air vent is closed. x Use the lever on the vent grille to adjust the airflow direction. Additional, non-adjustable air vents are located in the instrument panel (2), in the footwells, as well as in the rear area of the passenger compartment. Some models also have an adjustable air vent inside the glove compartment ⇒ Glove compartment. NOTICE Do not place food, medications, or other temperature-sensitive things in front of the air vents. Food, medications, and other things that are sensitive to heat or cold can be damaged or made unusable by the air flow from the vents. The air coming out of the vents flows through the passenger compartment and through the air vents in the luggage compartment. Do not cover these slots with clothing or other things.
