In the event of a breakdown

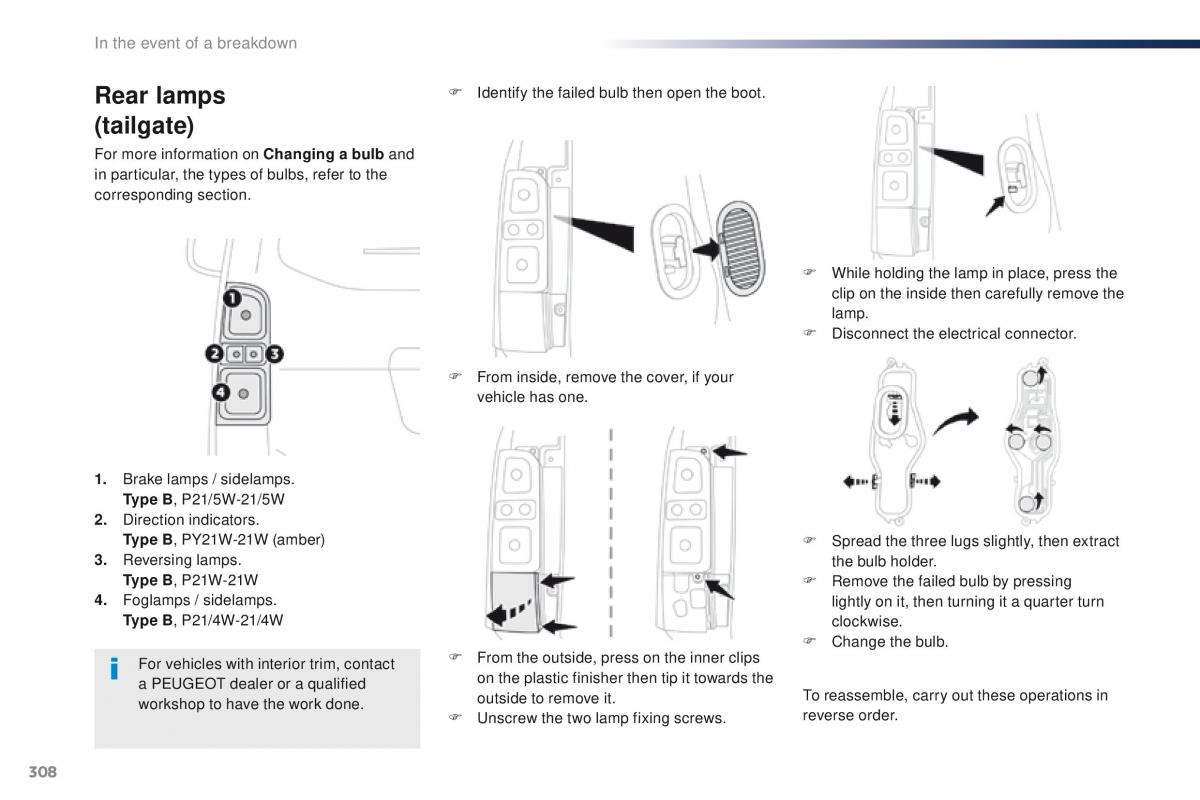

Rear lamps F Identify the failed bulb then open the boot.
(tailgate)
For more information on Changing a bulb and
in particular, the types of bulbs, refer to the
corresponding section.
F While holding the lamp in place, press the
clip on the inside then carefully remove the
lamp.
F Disconnect the electrical connector.
F From inside, remove the cover, if your
vehicle has one.
1. Brake lamps / sidelamps.
Type B, P21/5W-21/5W
2. Direction indicators.
Type B, PY21W-21W (amber) F Spread the three lugs slightly, then extract
3. Reversing lamps. the bulb holder.
Type B, P21W-21W F Remove the failed bulb by pressing
4. Foglamps / sidelamps. lightly on it, then turning it a quarter turn
Type B, P21/4W-21/4W clockwise.
F Change the bulb.
For vehicles with interior trim, contact F From the outside, press on the inner clips
a PeugeoT dealer or a qualified on the plastic finisher then tip it towards the
workshop to have the work done.outside to remove it.To reassemble, carry out these operations in
F unscrew the two lamp fixing screws.reverse order.
308
Traveller-VP_en_Chap08_en-cas-de-panne_ed01-2016
