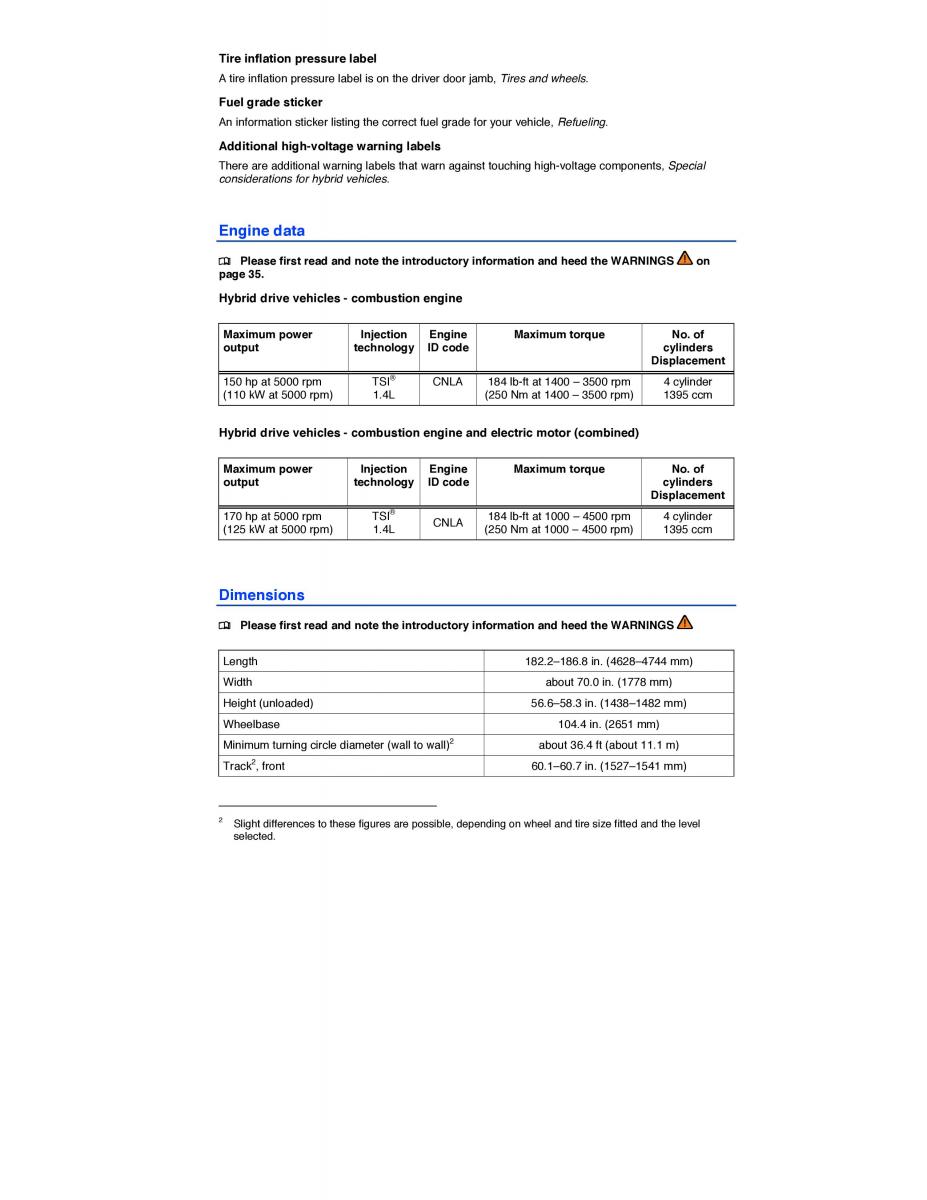

text version of content this owner's manual page from owners manual to the vehicle VW Jetta Hybrid, year of production 2012:

Tire inflation pressure label A tire inflation pressure label is on the driver door jamb, Tires and wheels. Fuel grade sticker An information sticker listing the correct fuel grade for your vehicle, Refueling. Additional high-voltage warning labels There are additional warning labels that warn against touching high-voltage components, Special considerations for hybrid vehicles. Engine data ¤ Please first read and note the introductory information and heed the WARNINGS on page 35. Hybrid drive vehicles - combustion engine Maximum power Injection Engine Maximum torque No. of output technology ID code cylinders Displacement 150 hp at 5000 rpm TSI® CNLA 184 lb-ft at 1400 – 3500 rpm 4 cylinder (110 kW at 5000 rpm) 1.4L (250 Nm at 1400 – 3500 rpm) 1395 ccm Hybrid drive vehicles - combustion engine and electric motor (combined) Maximum power Injection Engine Maximum torque No. of output technology ID code cylinders Displacement 170 hp at 5000 rpm TSI® CNLA 184 lb-ft at 1000 – 4500 rpm 4 cylinder (125 kW at 5000 rpm) 1.4L (250 Nm at 1000 – 4500 rpm) 1395 ccm Dimensions ¤ Please first read and note the introductory information and heed the WARNINGS Length 182.2–186.8 in. (4628–4744 mm) Width about 70.0 in. (1778 mm) Height (unloaded) 56.6–58.3 in. (1438–1482 mm) Wheelbase 104.4 in. (2651 mm) 2 Minimum turning circle diameter (wall to wall) about 36.4 ft (about 11.1 m) 2 Track , front 60.1–60.7 in. (1527–1541 mm) 2 Slight differences to these figures are possible, depending on wheel and tire size fitted and the level selected.
