owners manual Ford Taurus

owners manual Ford Taurus - year of production: 2000, 2001, 2002, 2003, 2004, 2005, 2006 - Ford Taurus IV 4 owners manual EN

Document: pdf (2.34 MB) 232 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Ford Taurus, year of production 2000 - 2006:

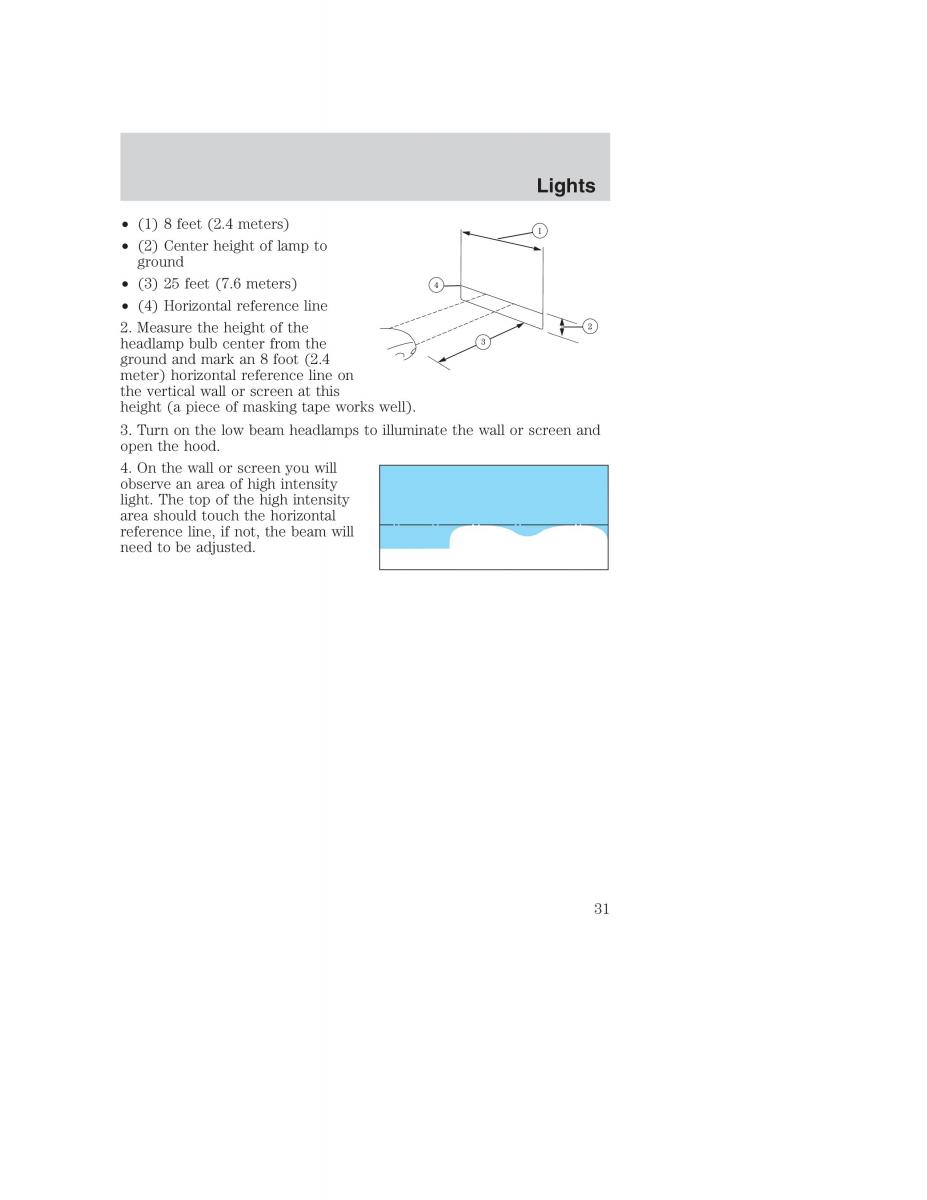

Lights • (1) 8 feet (2.4 meters) • (2) Center height of lamp to ground • (3) 25 feet (7.6 meters) • (4) Horizontal reference line 2. Measure the height of the headlamp bulb center from the ground and mark an 8 foot (2.4 meter) horizontal reference line on the vertical wall or screen at this height (a piece of masking tape works well). 3. Turn on the low beam headlamps to illuminate the wall or screen and open the hood. 4. On the wall or screen you will observe an area of high intensity light. The top of the high intensity area should touch the horizontal reference line, if not, the beam will need to be adjusted. 31 2006 Taurus (tau) Owners Guide (post-2002-fmt) USA(fus)
