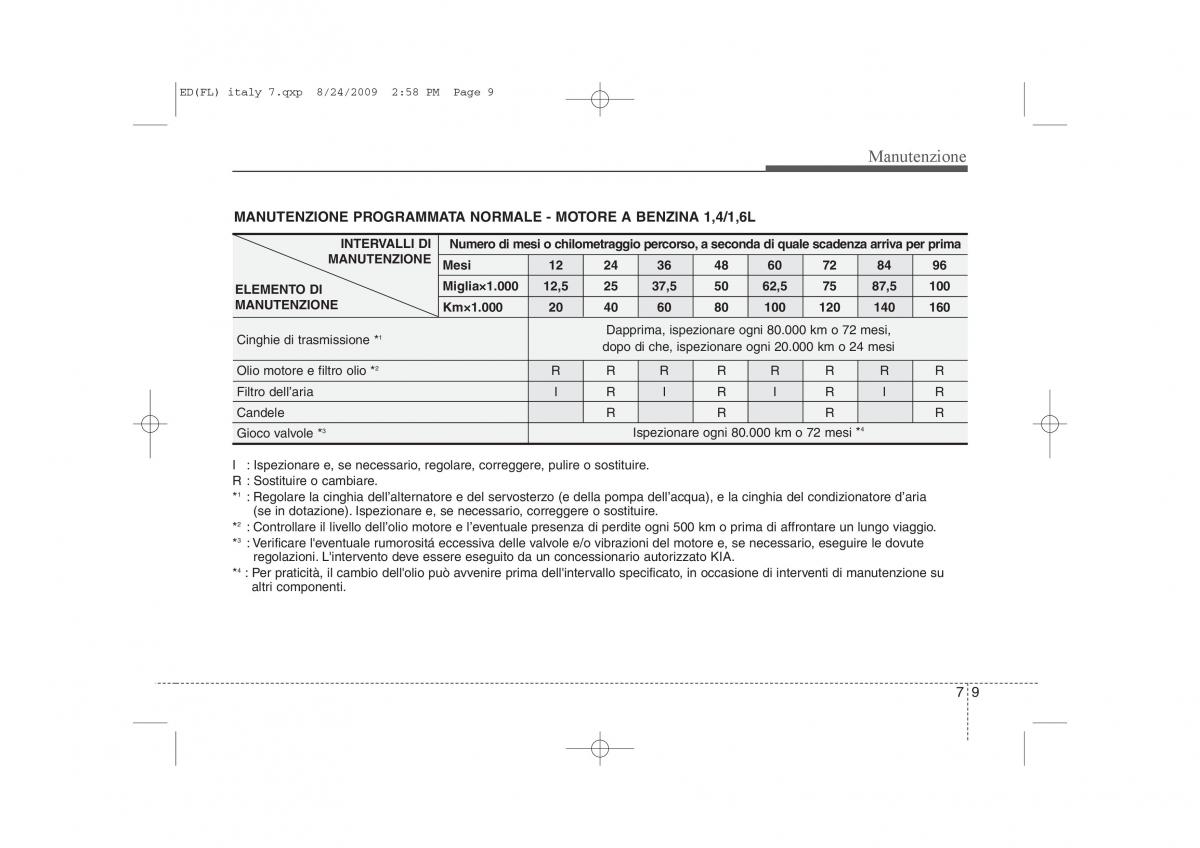

ED(FL) italy 7.qxp 8/24/2009 2:58 PM Page 9
Manutenzione
MANUTENZIONE PROGRAMMATA NORMALE - MOTORE A BENZINA 1,4/1,6L
INTERVALLI DI Numero di mesi o chilometraggio percorso, a seconda di quale scadenza arriva per prima
MANUTENZIONE Mesi 12 24 36 48 60 72 84 96
ELEMENTO DI Miglia×1.000 12,5 25 37,5 50 62,5 75 87,5 100
MANUTENZIONE Km×1.000 20 40 60 80 100 120 140 160
Dapprima, ispezionare ogni 80.000 km o 72 mesi,
1
Cinghie di trasmissione * dopo di che, ispezionare ogni 20.000 km o 24 mesi
2
Olio motore e filtro olio * RRRRRRRR
Filtro dell’aria I R I R I R I R
Candele R R R R
3 4
*
Gioco valvole * Ispezionare ogni 80.000 km o 72 mesi
I : Ispezionare e, se necessario, regolare, correggere, pulire o sostituire.
R : Sostituire o cambiare.
1 : Regolare la cinghia dell’alternatore e del servosterzo (e della pompa dell’acqua), e la cinghia del condizionatore d’aria
*
(se in dotazione). Ispezionare e, se necessario, correggere o sostituire.
2
* : Controllare il livello dell’olio motore e l’eventuale presenza di perdite ogni 500 km o prima di affrontare un lungo viaggio.
3
* :Verificare l'eventuale rumorositá eccessiva delle valvole e/o vibrazioni del motore e, se necessario, eseguire le dovute
regolazioni. L'intervento deve essere eseguito da un concessionario autorizzato KIA.
4
* : Per praticità, il cambio dell'olio può avvenire prima dell'intervallo specificato, in occasione di interventi di manutenzione su
altri componenti.
79
