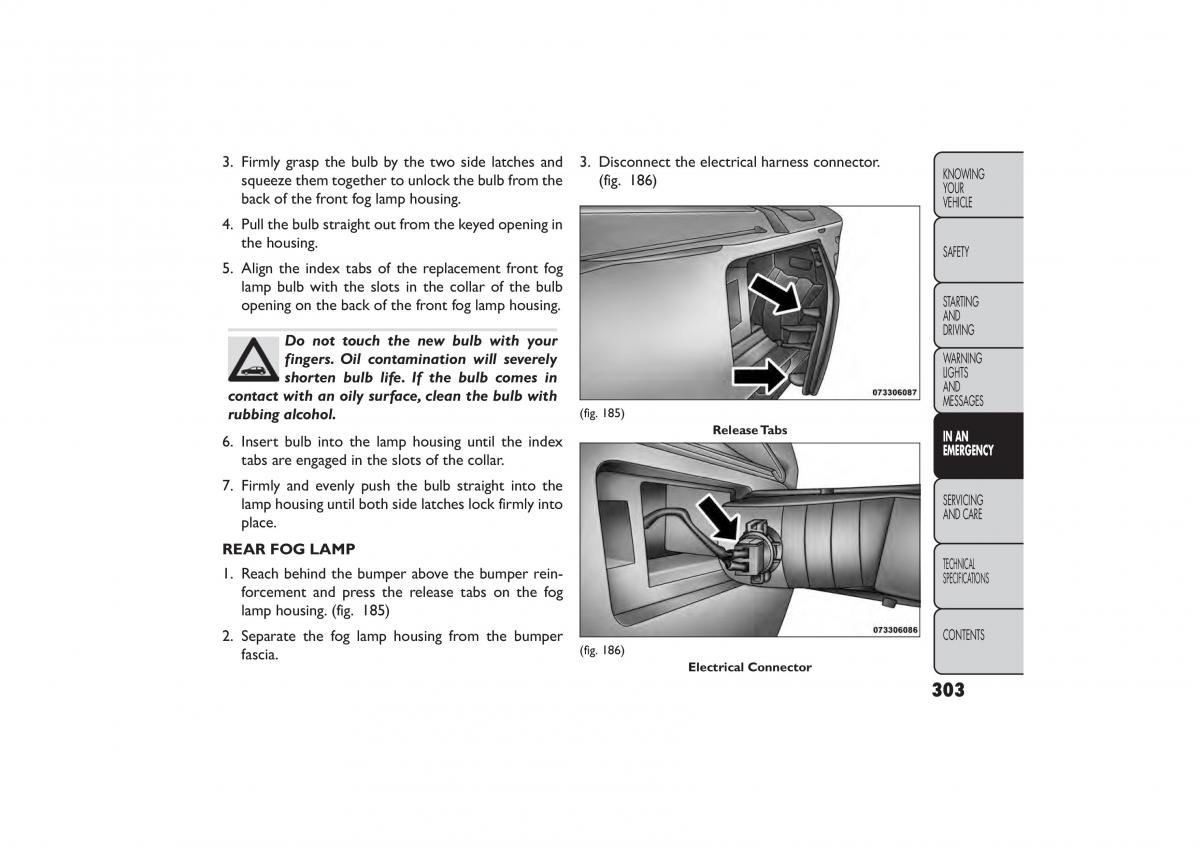

3. Firmly grasp the bulb by the two side latches and3. Disconnect the electrical harness connector.KNOWING squeeze them together to unlock the bulb from the(fig. 186) YOUR back of the front fog lamp housing. VEHICLE 4. Pull the bulb straight out from the keyed opening in the housing. SAFETY 5. Align the index tabs of the replacement front fog lamp bulb with the slots in the collar of the bulb opening on the back of the front fog lamp housing. STARTING AND Do not touch the new bulb with your DRIVING fingers. Oil contamination will severely WARNING shorten bulb life. If the bulb comes in LIGHTS contact with an oily surface,clean the bulb with AND MESSAGES rubbing alcohol. (fig. 185) 6. Insert bulb into the lamp housing until the indexReleaseTabs IN AN tabs are engaged in the slots of the collar. EMERGENCY 7. Firmly and evenly push the bulb straight into the lamp housing until both side latches lock firmly into SERVICING place. ANDCARE REARFOGLAMP 1. Reach behind the bumper above the bumper rein- TECHNICAL forcement and press the release tabs on the fog SPECIFICATIONS lamp housing. (fig. 185) 2. Separate the fog lamp housing from the bumper CONTENTS fascia. (fig. 186) Electrical Connector 303
