owners manual Mazda MX-5

owners manual Mazda MX-5 - year of production: 2014 - Mazda MX 5 Miata ND IV 4 owners manual EN

Document: pdf (5.66 MB) 448 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Mazda MX-5, year of production 2014:

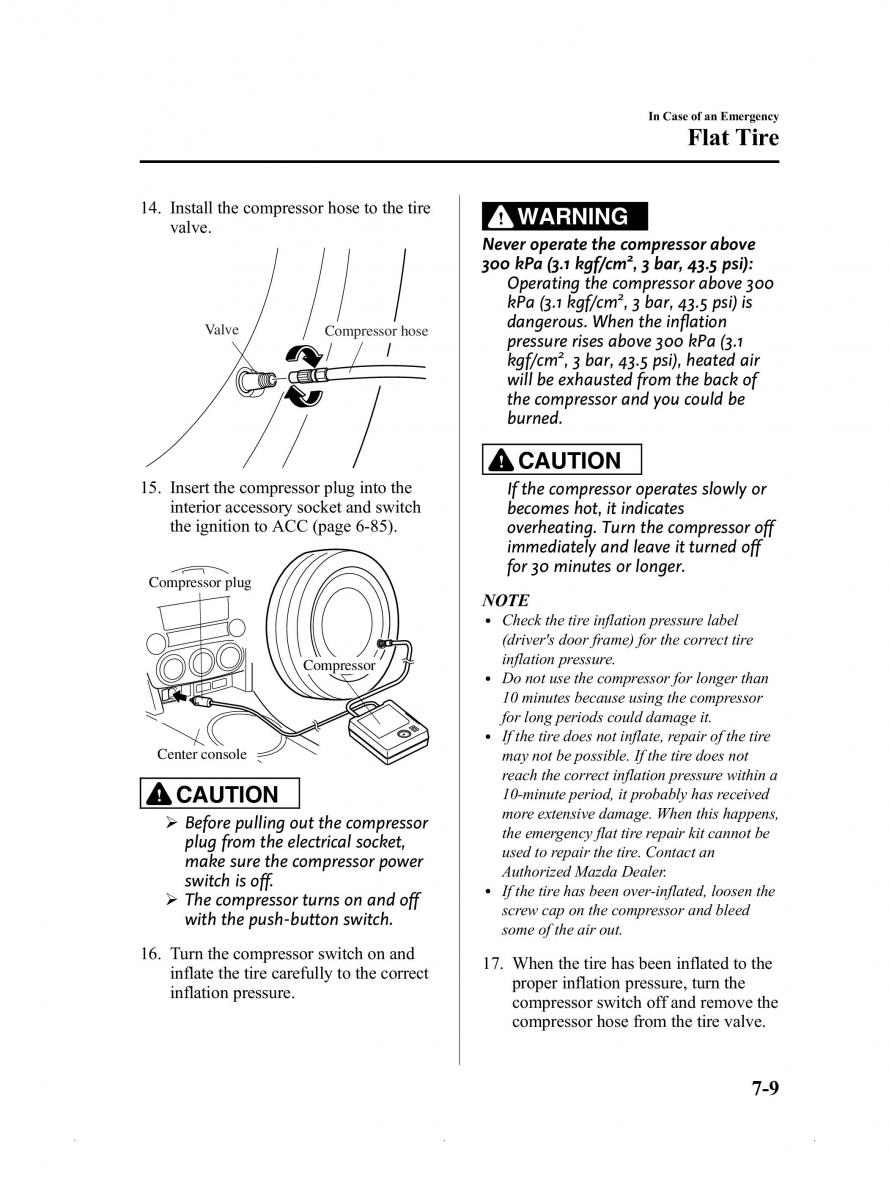

MX-5_8EN7-EA-14E_Edition1 Page307 Friday, March 28 2014 3:41 PM Black plate (307,1) In Case of an Emergency Flat Tire 14. Install the compressor hose to the tire WARNING valve. Never operate the compressor above 300kPa(3.1 kgf/cm2, 3 bar, 43.5 psi): Operating the compressor above 300 kPa(3.1 kgf/cm2, 3 bar, 43.5 psi) is Valve Compressor hose dangerous. When the inflation pressure rises above 300 kPa (3.1 kgf/cm2, 3 bar, 43.5 psi), heated air will be exhausted from the back of the compressor and you could be burned. CAUTION 15. Insert the compressor plug into the If the compressor operates slowly or interior accessory socket and switch becomes hot, it indicates the ignition to ACC (page 6-85). overheating. Turn the compressor off immediately and leave it turned off for 30 minutes or longer. Compressor plug NOTE l Check the tire inflation pressure label (driver's door frame) for the correct tire Compressor inflation pressure. l Donotusethecompressorforlonger than 10 minutes because using the compressor for long periods could damage it. l If the tire does not inflate, repair of the tire Center console maynotbepossible. If the tire does not reach the correct inflation pressure within a CAUTION 10-minute period, it probably has received ØBeforepulling out the compressor moreextensive damage. When this happens, plug from the electrical socket, the emergency flat tire repair kit cannot be makesurethecompressor power used to repair the tire. Contact an switch is off. Authorized Mazda Dealer. ØThecompressorturnsonandoff l If the tire has been over-inflated, loosen the with the push-button switch. screw cap on the compressor and bleed someoftheairout. 16. Turn the compressor switch on and 17. Whenthe tire has been inflated to the inflate the tire carefully to the correct proper inflation pressure, turn the inflation pressure. compressor switch off and remove the compressor hose from the tire valve. 7-9 Form No.8EN7-EA-14E

Download PDF

Click here to download a pdf file with an instruction manual for Mazda MX-5
year of production from: 2014

Do you prefer pdf format?
Find out how to download

Enter the code to download PDF file:

All pages in one PDF file!

How to get the code?
It's very simple! Just pay through a secure PayPal payment.
It will take no longer than a few minutes.
You will receive the code immediately after payment.
The code will be displayed on the screen and will be sent to you by e-mail address.

Mazda MX 5 Miata ND IV 4 owners manual
pages 304 - 310

Mazda MX 5 Miata ND IV 4 owners manual
page 307 / 448
