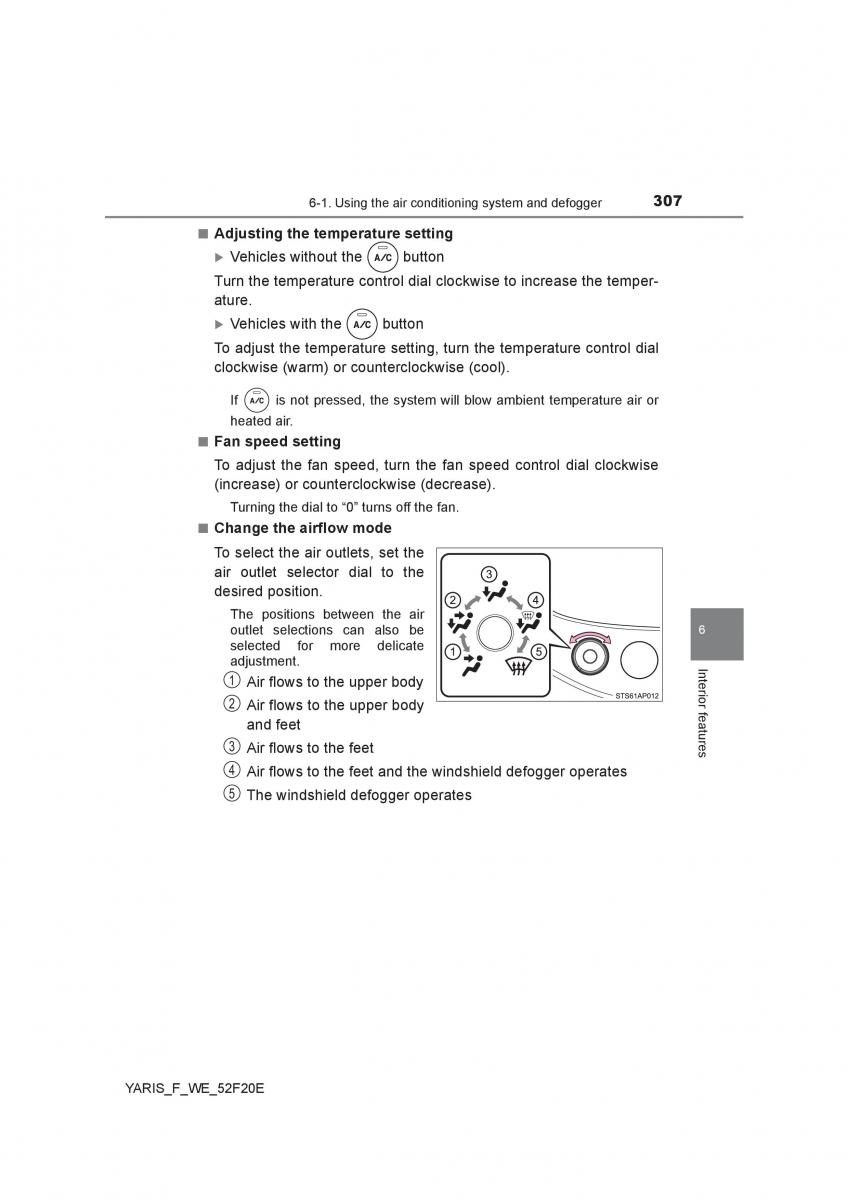

6-1. Using the air conditioning system and defogger307 ■ Adjusting the temperature setting X Vehicles without the button Turn the temperature control dial clockwise to increase the temper- ature. X Vehicles with the button To adjust the temperature setting, turn the temperature control dial clockwise (warm) or counterclockwise (cool). If is not pressed, the system will blow ambient temperature air or heated air. ■ Fan speed setting To adjust the fan speed, turn the fan speed control dial clockwise (increase) or counterclockwise (decrease). Turning the dial to “0” turns off the fan. ■ Change the airflow mode To select the air outlets, set the air outlet selector dial to the desired position. The positions between the air outlet selections can also be 6 selected for more delicate adjustment. In 1 Air flows to the upper body teri 2 Air flows to the upper body or f and feet eatu r 3 Air flows to the feet es 4 Air flows to the feet and the windshield defogger operates 5 The windshield defogger operates YARIS_F_WE_52F20E
