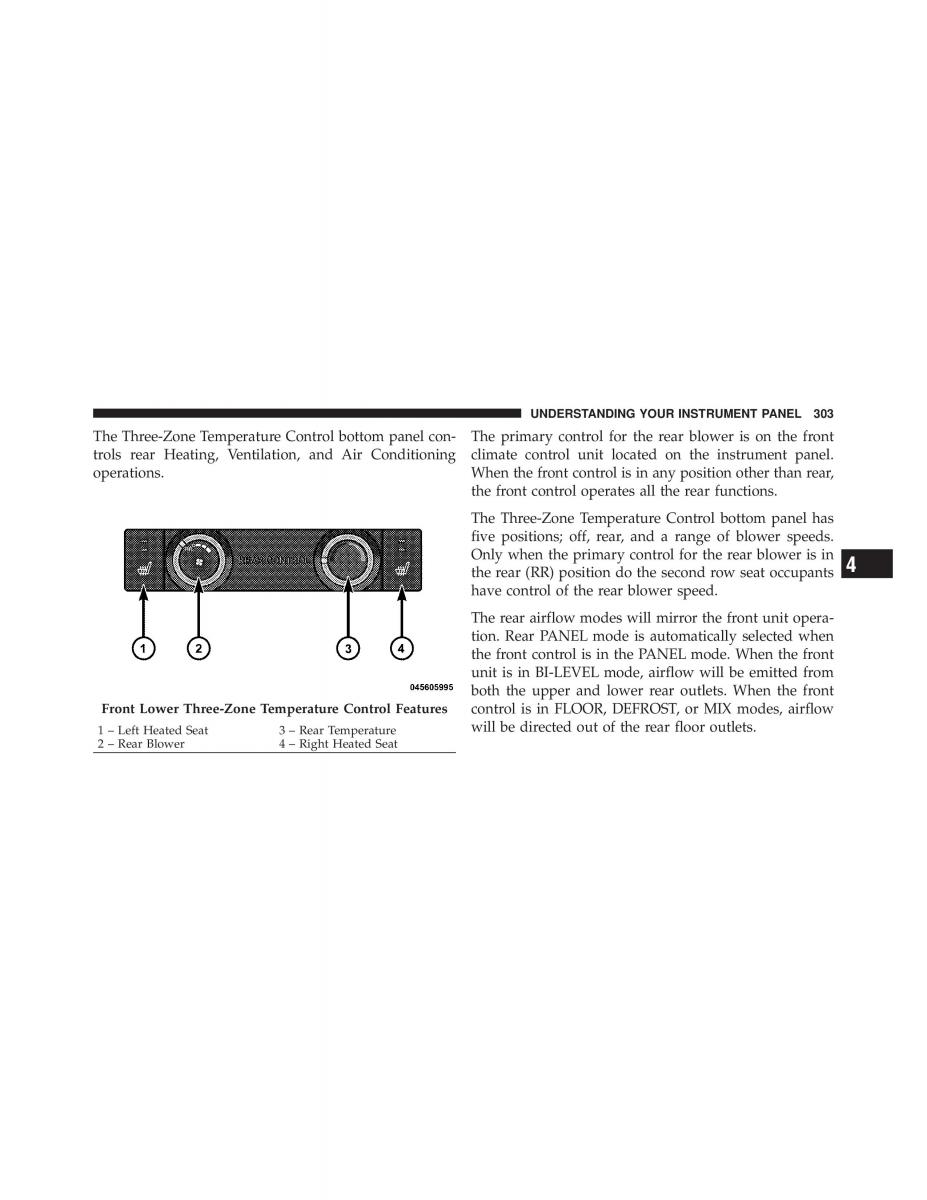

UNDERSTANDINGYOURINSTRUMENTPANEL 303
The Three-Zone Temperature Control bottom panel con-The primary control for the rear blower is on the front
trols rear Heating, Ventilation, and Air Conditioningclimate control unit located on the instrument panel.
operations. Whenthefront control is in any position other than rear,
the front control operates all the rear functions.
The Three-Zone Temperature Control bottom panel has
five positions; off, rear, and a range of blower speeds.
Only when the primary control for the rear blower is in 4
the rear (RR) position do the second row seat occupants
have control of the rear blower speed.
The rear airflow modes will mirror the front unit opera-
tion. Rear PANEL mode is automatically selected when
the front control is in the PANEL mode. When the front
unit is in BI-LEVEL mode, airflow will be emitted from
both the upper and lower rear outlets. When the front
Front Lower Three-Zone Temperature Control Featurescontrol is in FLOOR, DEFROST, or MIX modes, airflow
1 – Left Heated Seat3 – Rear Temperaturewill be directed out of the rear floor outlets.
2 – Rear Blower4 – Right Heated Seat
