owners manual VW Jetta

owners manual VW Jetta - year of production: 2010 - VW Jetta VI SportWagen owners manual EN

Document: pdf (5.63 MB) 324 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle VW Jetta, year of production 2010:

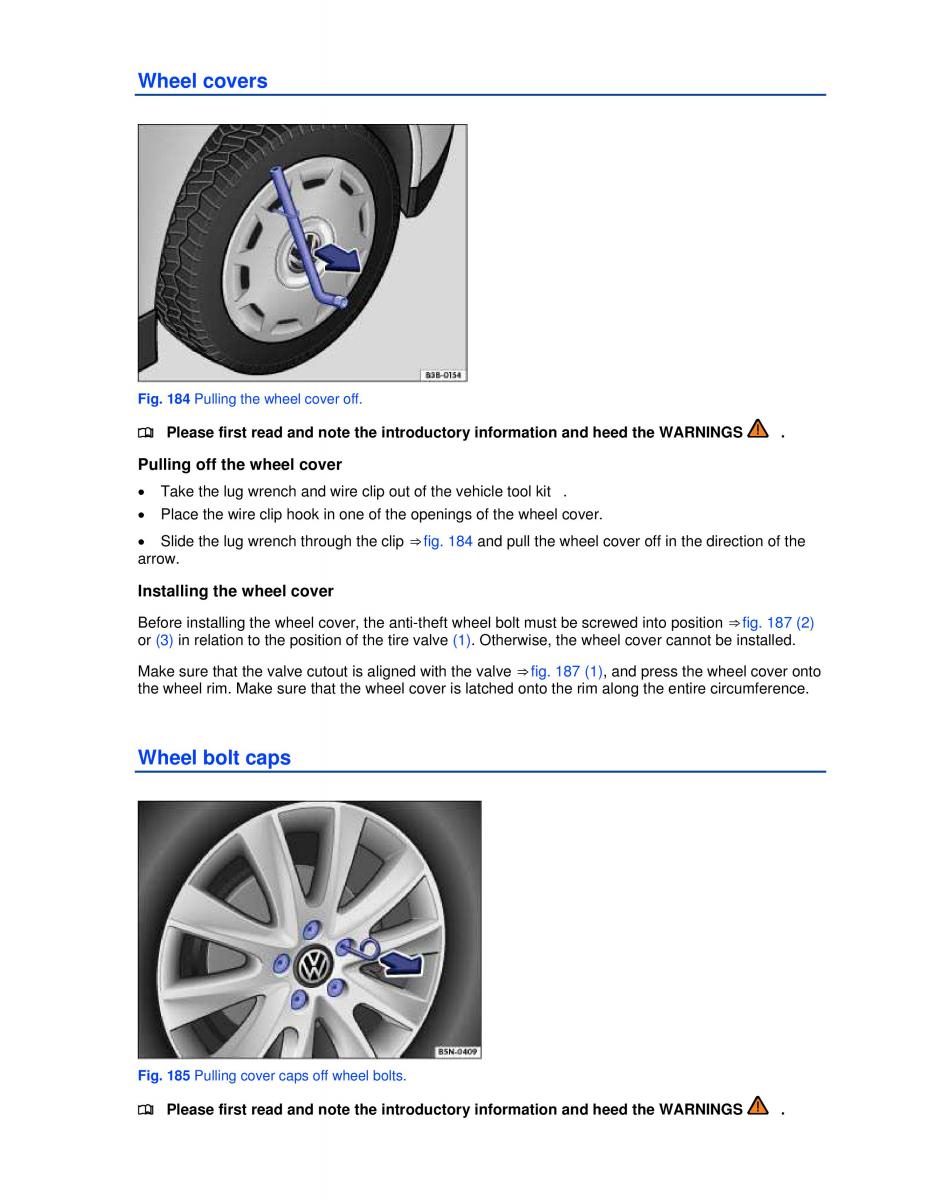

Wheel covers Fig. 184 Pulling the wheel cover off. ¤ Please first read and note the introductory information and heed the WARNINGS . Pulling off the wheel cover x Take the lug wrench and wire clip out of the vehicle tool ki t . x Place the wire clip hook in one of the openings of the wheel cover. x Slide the lug wrench through the clip⇒ fig. 184 and pull the wheel cover off in the direction of the arrow. Installing the wheel cover Before installing the wheel cover, the anti-theft wheel bolt must be screwed into position ⇒ fig. 187 (2) or (3) in relation to the position of the tire valve (1). Otherwise, the wheel cover cannot be installed. Make sure that the valve cutout is aligned with the valve ⇒ fig. 187 (1), and press the wheel cover onto the wheel rim. Make sure that the wheel cover is latched onto the rim along the entire circumference. Wheel bolt caps Fig. 185 Pulling cover caps off wheel bolts. ¤ Please first read and note the introductory information and heed the WARNINGS .
