text version of content this owner's manual page from owners manual to the vehicle Subaru Forester, year of production 2002 - 2008:

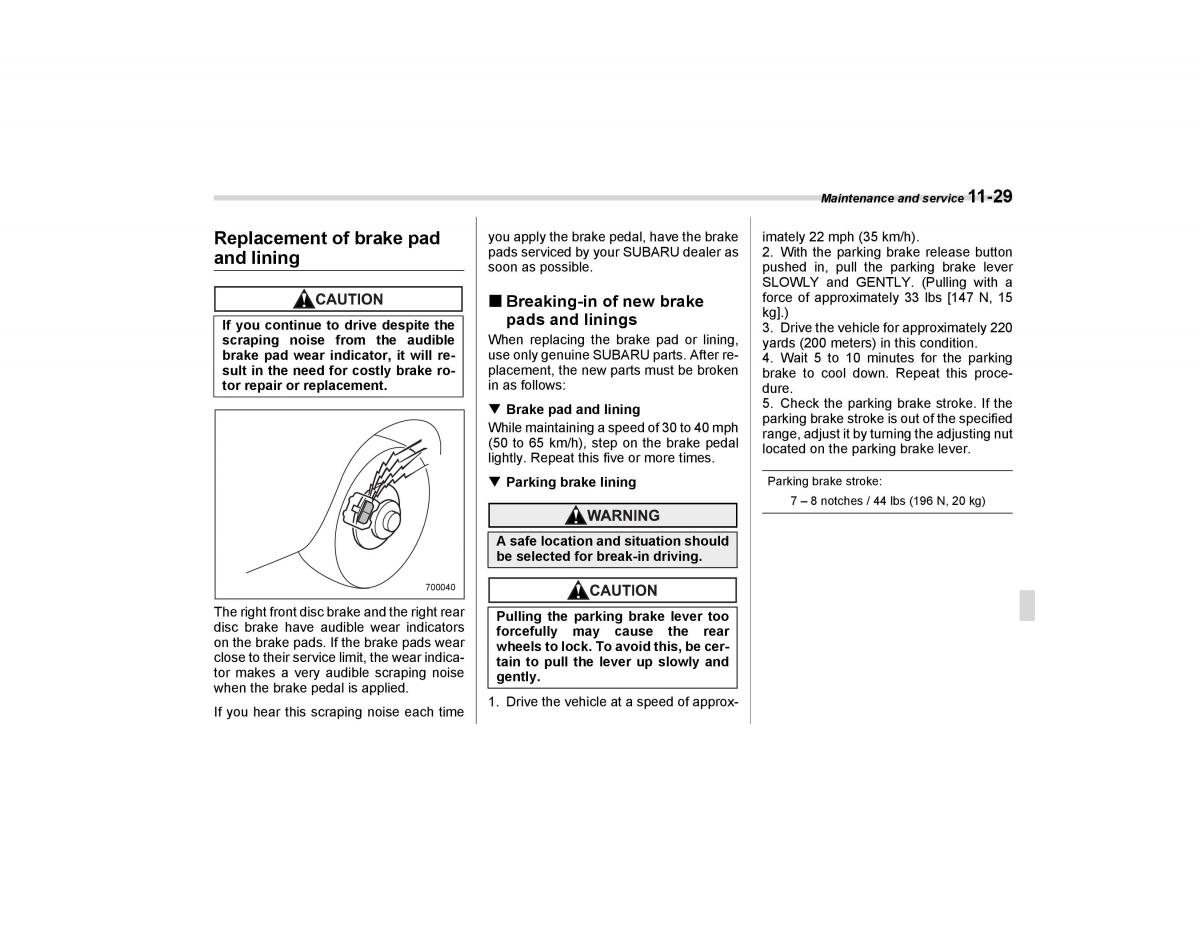

Maintenance and service 11-29 Replacement of brake pad you apply the brake pedal, have the brakeimately 22 mph (35 km/h). and lining pads serviced by your SUBARU dealer as 2. With the parking brake release button soon as possible. pushed in, pull the parking brake lever SLOWLY and GENTLY. (Pulling with a Breaking-in of new brake force of approximately 33 lbs [147 N, 15 If you continue to drive despite the pads and linings kg].) scraping noise from the audible When replacing the brake pad or lining,3. Drive the vehicle for approximately 220 brake pad wear indicator, it will re- use only genuine SUBARU parts. After re-yards (200 meters) in this condition. sult in the need for costly brake ro- placement, the new parts must be broken4. Wait 5 to 10 minutes for the parking tor repair or replacement. in as follows: brake to cool down. Repeat this proce- dure. Brake pad and lining 5. Check the parking brake stroke. If the While maintaining a speed of 30 to 40 mphparking brake stroke is out of the specified (50 to 65 km/h), step on the brake pedalrange, adjust it by turning the adjusting nut lightly. Repeat this five or more times.located on the parking brake lever. Parking brake lining Parking brake stroke: 7 8 notches / 44 lbs (196 N, 20 kg) A safe location and situation should be selected for break-in driving. 700040 The right front disc brake and the right rearPulling the parking brake lever too disc brake have audible wear indicators forcefully may cause the rear on the brake pads. If the brake pads wearwheels to lock. To avoid this, be cer- close to their service limit, the wear indica-tain to pull the lever up slowly and tor makes a very audible scraping noise gently. when the brake pedal is applied. If you hear this scraping noise each time1. Drive the vehicle at a speed of approx-
