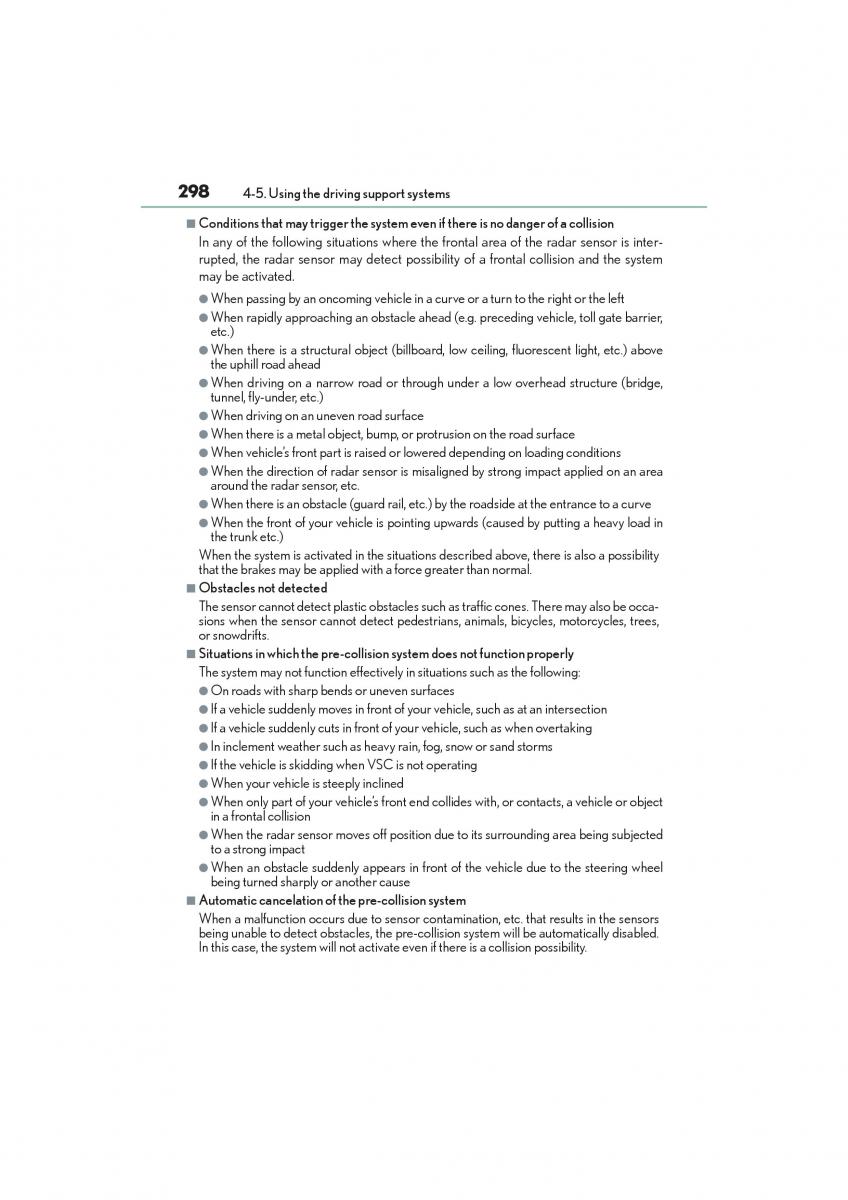

298 4-5. Using the driving support systems ■Conditions that may trigger the system even if there is no danger of a collision In any of the following situations where the frontal area of the radar sensor is inter- rupted, the radar sensor may detect possibility of a frontal collision and the system may be activated. ●When passing by an oncoming vehicle in a curve or a turn to the right or the left ●When rapidly approaching an obstacle ahead (e.g. preceding vehicle, toll gate barrier, etc.) ●When there is a structural object (billboar, low dceiling, fluorescent light, etc.) above the uphill road ahead ●When driving on a narrow road or through under a low overhead structure (bridge, tunnel, fly-under, etc.) ●When driving on an uneven road surface ●When there is a metal object, bump, or protrusion on the road surface ●When vehicle’s front part is raised or lowered depending on loading conditions ●When the direction of radar sensor is misaligned by strong impact applied on an area around the radar sensor, etc. ●When there is an obstacle (guard rail, etc.) by the roadside at the entrance to a curve ●When the front of your vehicle is point uingpwards (caused by putting a heavy load in the trunk etc.) When the system is activated in the situations described above, there is also a possibility that the brakes may be applied with a force greater than normal. ■Obstacles not detected The sensor cannot detect plastic obstacles such as traffic cones. There may also be occa- sions when the sensor cannot detect pedestrians, animals, bicycles, motorcycles, trees, or snowdrifts. ■Situations in which the pre-collision system does not function properly The system may not function effectively in situations such as the following: ●On roads with sharp bends or uneven surfaces ●If a vehicle suddenly moves in front of your vehicle, such as at an intersection ●If a vehicle suddenly cuts in front of your vehicle, such as when overtaking ●In inclement weather such as heavy rain, fog, snow or sand storms ●If the vehicle is skidding when VSC is not operating ●When your vehicle is steeply inclined ●When only part of your vehicle’s front end collides with, or contacts, a vehicle or object in a frontal collision ●When the radar sensor moves off position due to its surrounding area being subjected to a strong impact ●When an obstacle suddenly appears in front of the vehicle due to the steering wheel being turned sharply or another cause ■Automatic cancelation of the pre-collision system When a malfunction occurs due to sensor contamination, etc. that results in the sensors being unable to detect obstacles, the pre-collision system will be automatically disabled. In this case, the system will not activate even if there is a collision possibility. RC350_RC300_RC200t_RC F_U (OM24671U)
