text version of content this owner's manual page from owners manual to the vehicle Hyundai Grandeur, year of production 2005 - 2011:

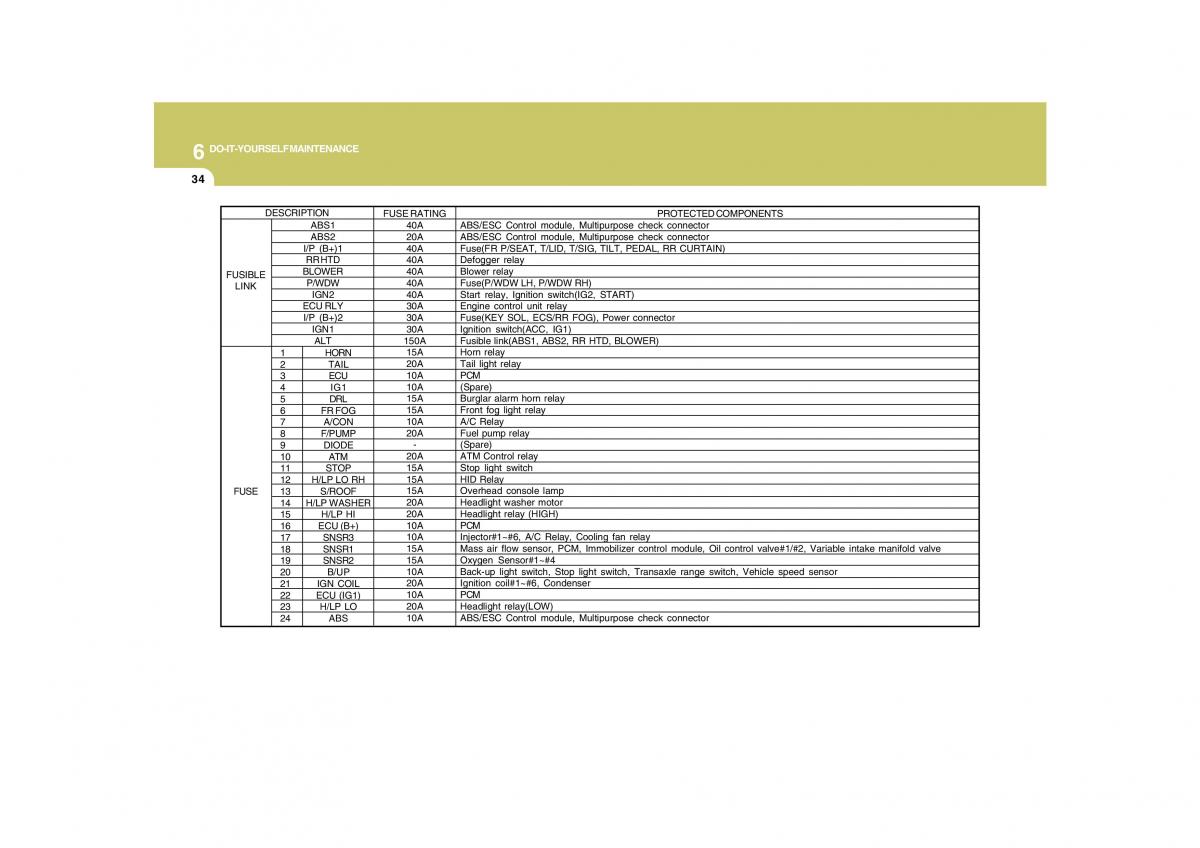

DO-IT-YOURSELF MAINTENANCE 6 34 DESCRIPTION FUSE RATING PROTECTED COMPONENTS ABS1 40A ABS/ESC Control module, Multipurpose check connector ABS2 20A ABS/ESC Control module, Multipurpose check connector I/P (B+)1 40A Fuse(FR P/SEAT, T/LID, T/SIG, TILT, PEDAL, RR CURTAIN) RR HTD 40A Defogger relay FUSIBLE BLOWER 40A Blower relay LINK P/WDW 40A Fuse(P/WDW LH, P/WDW RH) IGN2 40A Start relay, Ignition switch(IG2, START) ECU RLY 30A Engine control unit relay I/P (B+)2 30A Fuse(KEY SOL, ECS/RR FOG), Power connector IGN1 30A Ignition switch(ACC, IG1) ALT 150A Fusible link(ABS1, ABS2, RR HTD, BLOWER) 1 HORN 15A Horn relay 2 TAIL 20A Tail light relay 3 ECU 10A PCM 4 IG1 10A (Spare) 5 DRL 15A Burglar alarm horn relay 6 FR FOG 15A Front fog light relay 7 A/CON 10A A/C Relay 8 F/PUMP 20A Fuel pump relay 9 DIODE - (Spare) 10 ATM 20A ATM Control relay 11 STOP 15A Stop light switch 12 H/LP LO RH 15A HID Relay FUSE 13 S/ROOF 15A Overhead console lamp 14 H/LP WASHER 20A Headlight washer motor 15 H/LP HI 20A Headlight relay (HIGH) 16 ECU (B+) 10A PCM 17 SNSR3 10A Injector#1~#6, A/C Relay, Cooling fan relay 18 SNSR1 15A Mass air flow sensor, PCM, Immobilizer control module, Oil control valve#1/#2, Variable intake manifold valve 19 SNSR2 15A Oxygen Sensor#1~#4 20 B/UP 10A Back-up light switch, Stop light switch, Transaxle range switch, Vehicle speed sensor 21 IGN COIL 20A Ignition coil#1~#6, Condenser 22 ECU (IG1) 10A PCM 23 H/LP LO 20A Headlight relay(LOW) 24 ABS 10A ABS/ESC Control module, Multipurpose check connector
