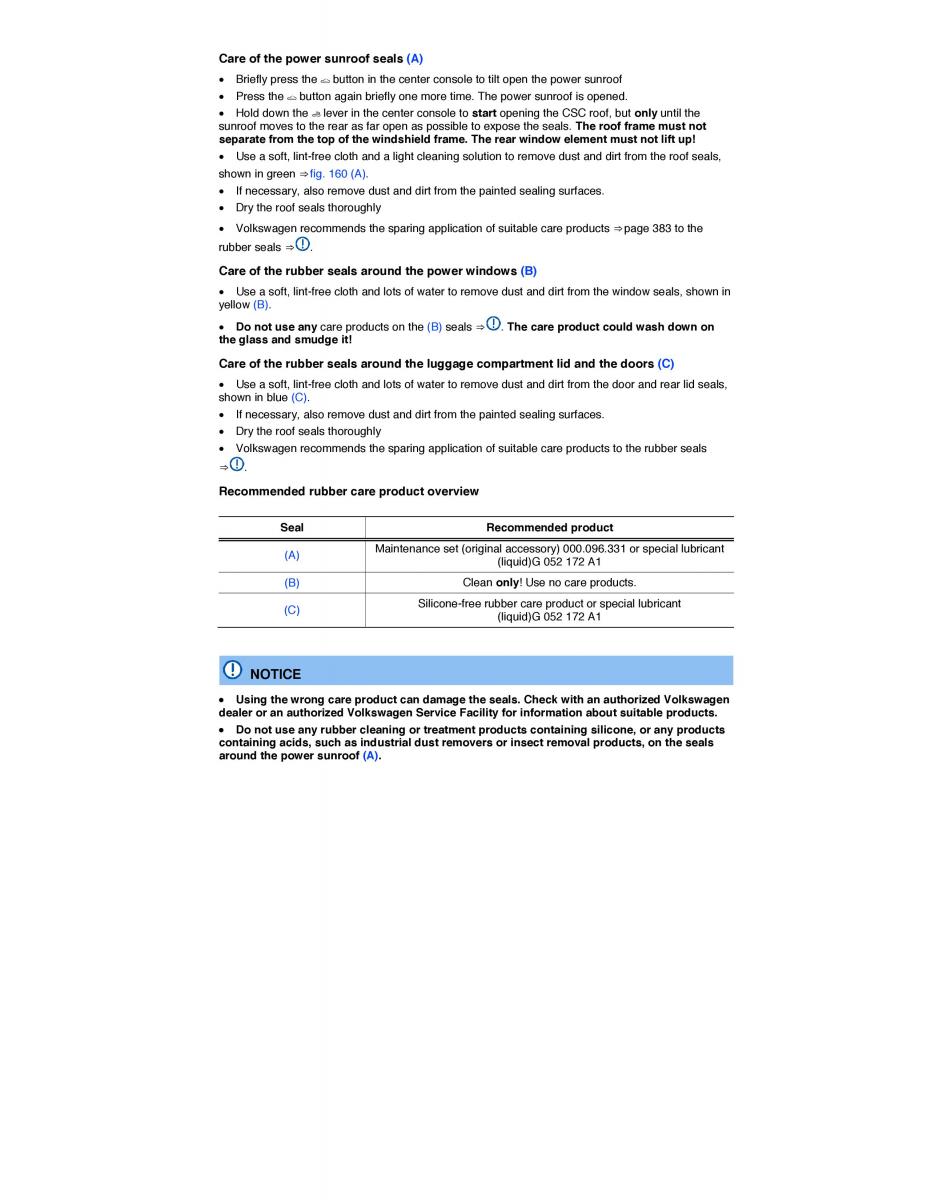

Care of the power sunroof seals (A) x Briefly press the button in the center console to tilt open the power sunroof x Press the button again briefly one more time. The power sunroof is opened. x Hold down the lever in the center console to start opening the CSC roof, but only until the sunroof moves to the rear as far open as possible to expose the seals. The roof frame must not separate from the top of the windshield frame. The rear window element must not lift up! x Use a soft, lint-free cloth and a light cleaning solution to remove dust and dirt from the roof seals, shown in green ⇒ fig. 160 (A). x If necessary, also remove dust and dirt from the painted sealing surfaces. x Dry the roof seals thoroughly x Volkswagen recommends the sparing application of suitable care product⇒ s page 383 to the rubber seals ⇒ . Care of the rubber seals around the power windows (B) x Use a soft, lint-free cloth and lots of water to remove dust and dirt from the window seals, shown in yellow (B). x Do not use any care products on the (B) seals ⇒ . The care product could wash down on the glass and smudge it! Care of the rubber seals around the luggage compartment lid and the doors (C) x Use a soft, lint-free cloth and lots of water to remove dust and dirt from the door and rear lid ses,al shown in blue (C). x If necessary, also remove dust and dirt from the painted sealing surfaces. x Dry the roof seals thoroughly x Volkswagen recommends the sparing application of suitable care products to the rubber seals ⇒ . Recommended rubber care product overview Seal Recommended product (A) Maintenance set (original accessory) 000.096.331 or special lubricant (liquid)G 052 172 A1 (B) Clean only! Use no care products. (C) Silicone-free rubber care product or special lubricant (liquid)G 052 172 A1 NOTICE x Using the wrong care product can damage the seals. Check with an authorized Volkswagen dealer or an authorized Volkswagen Service Facility for information about suitable products. x Do not use any rubber cleaning or treatment products containing silicone, or any products containing acids, such as industrial dust removers or insect removal products, on the seals around the power sunroof (A).
