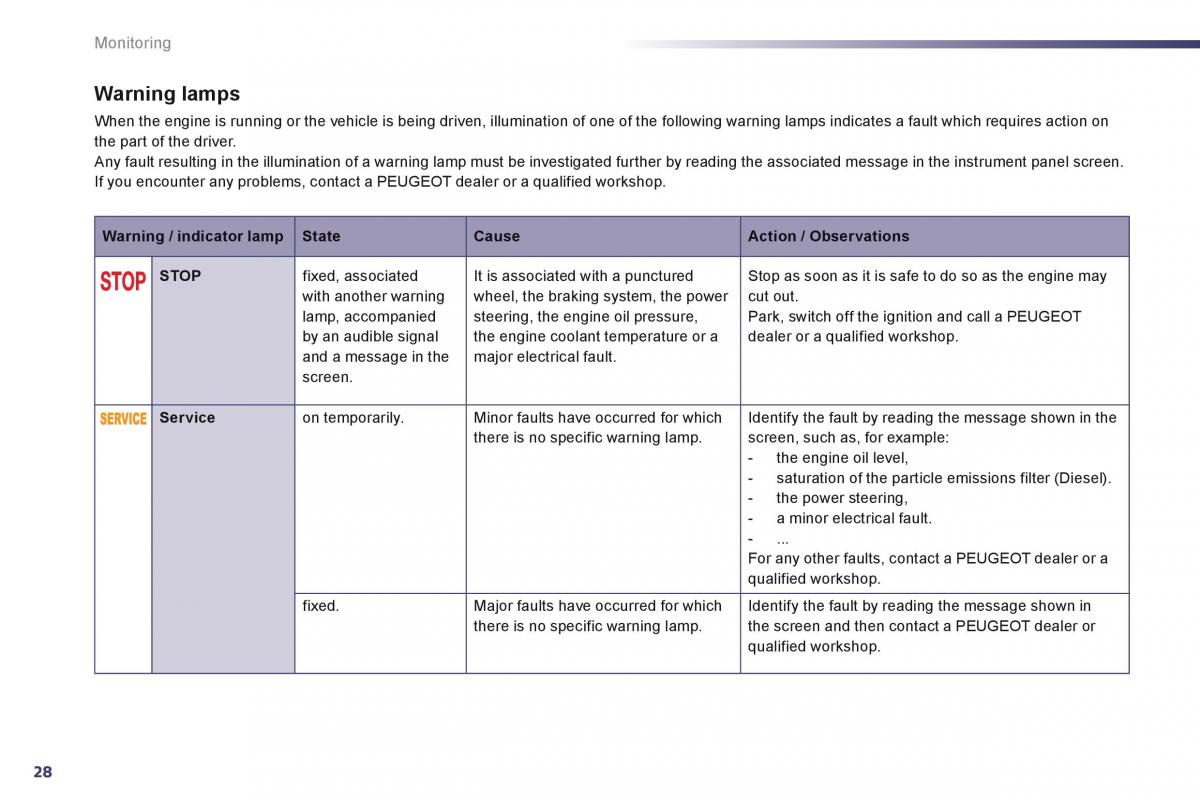

Monitoring
Warning lamps
When the engine is running or the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires action on
the part of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further by reading the associated message in the instrument panel screen.
If you encounter any problems, contact a PEUGEOT dealer or a qualified workshop.
Warning / indicator lampStateCause Action / Observations
STOP f ixed, associated It is associated with a punctured Stop as soon as it is safe to do so as the engine may
with another warning wheel, the braking system, the power cut out.
lamp, accompanied steering, the engine oil pressure, Park, switch off the ignition and call a PEUGEOT
by an audible signal the engine coolant temperature or a dealer or a qualified workshop.
and a message in the major electrical fault.
screen.
Service o n temporarily. Minor faults have occurred for which Identify the fault by reading the message shown in the
there is no specific warning lamp. screen, such as, for example:
- the engine oil level,
- saturation of the particle emissions filter (Diesel).
- the power steering,
- a minor electrical fault.
- .
For any other faults, contact a PEUGEOT dealer or a
qualified workshop.
f ixed. Major faults have occurred for which Identify the fault by reading the message shown in
there is no specific warning lamp. the screen and then contact a PEUGEOT dealer or
qualified workshop.
28
