text version of content this owner's manual page from owners manual to the vehicle VW Jetta, year of production 2010:

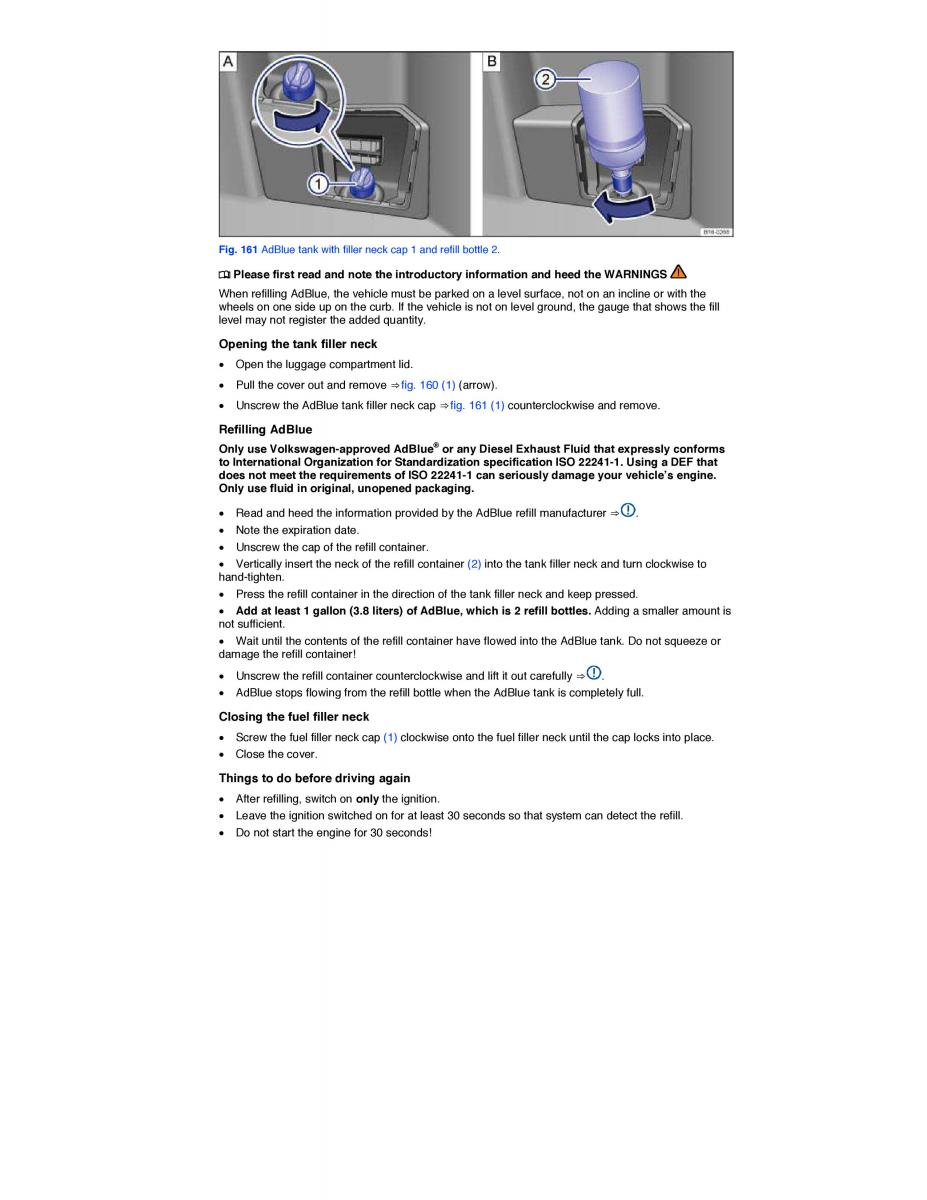

Fig. 161 AdBlue tank with filler neck cap 1 and refill bottle 2. ¤ Please first read and note the introductory information and heed the WARNINGS When refilling AdBlue, the vehicle must be parked on a level surface, not on an incline or with the wheels on one side up on the curb. If the vehicle is not on level ground, the gauge that shows the fill level may not register the added quantity. Opening the tank filler neck x Open the luggage compartment lid. x Pull the cover out and remove⇒ fig. 160 (1) (arrow). x Unscrew the AdBlue tank filler neck cap⇒ fig. 161 (1) counterclockwise and remove. Refilling AdBlue ® Only use Volkswagen-approved AdBlue or any Diesel Exhaust Fluid that expressly conforms to International Organization for Standardization specification ISO 22241-1. Using a DEF that does not meet the requirements of ISO 22241-1 can seriously damage your vehicle’s engine. Only use fluid in original, unopened packaging. x Read and heed the information provided by the AdBlue refill manufacture⇒ r . x Note the expiration date. x Unscrew the cap of the refill container. x Vertically insert the neck of the refill containe(2r ) into the tank filler neck and turn clockwise to hand-tighten. x Press the refill container in the direction of the tank filler neck and keep pressed. x Add at least 1 gallon (3.8 liters) of AdBlue, which is 2 refill bottles. Adding a smaller amount is not sufficient. x Wait until the contents of the refill container have flowed into the AdBlue tank. Do not squeeze or damage the refill container! x Unscrew the refill container counterclockwise and lift it out carefull⇒ y . x AdBlue stops flowing from the refill bottle when the AdBlue tank is completely full. Closing the fuel filler neck x Screw the fuel filler neck cap(1 ) clockwise onto the fuel filler neck until the cap locks into place. x Close the cover. Things to do before driving again x After refilling, switch ononl y the ignition. x Leave the ignition switched on for at least 30 seconds so that system can detect the refill. x Do not start the engine for 30 seconds!
