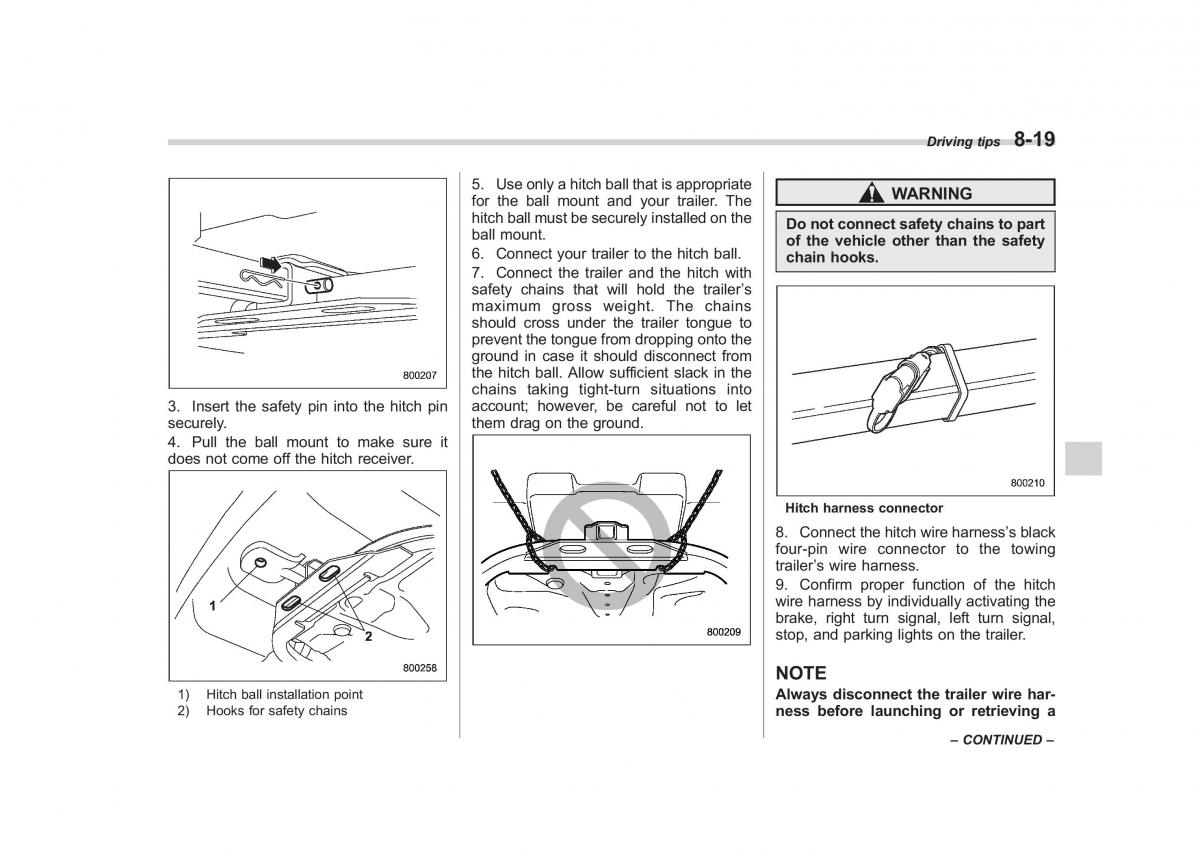

Driving tips8-19
5. Useonlyahitchballthatisappropriate WARNING
for the ball mount and your trailer. The
hitch ball must be securely installed on theDonotconnectsafetychainstopart
ball mount. of the vehicle other than the safety
6. Connect your trailer to the hitch ball.chain hooks.
7. Connect the trailer and the hitch with
safety chains that will hold the trailer’s
maximum gross weight. The chains
should cross under the trailer tongue to
prevent the tongue from dropping onto the
ground in case it should disconnect from
the hitch ball. Allow sufficient slack in the
chains taking tight-turn situations into
3. Insert the safety pin into the hitch pinaccount; however, be careful not to let
securely. them drag on the ground.
4. Pull the ball mount to make sure it
does not come off the hitch receiver.
Hitch harness connector
8. Connect the hitch wire harness’s black
four-pin wire connector to the towing
trailer’s wire harness.
9. Confirm proper function of the hitch
wire harness by individually activating the
brake, right turn signal, left turn signal,
stop, and parking lights on the trailer.
NOTE
1)Hitch ball installation point Always disconnect the trailer wire har-
2)Hooks for safety chains ness before launching or retrieving a
– CONTINUED –
