text version of content this owner's manual page from owners manual to the vehicle VW CC, year of production 2012:

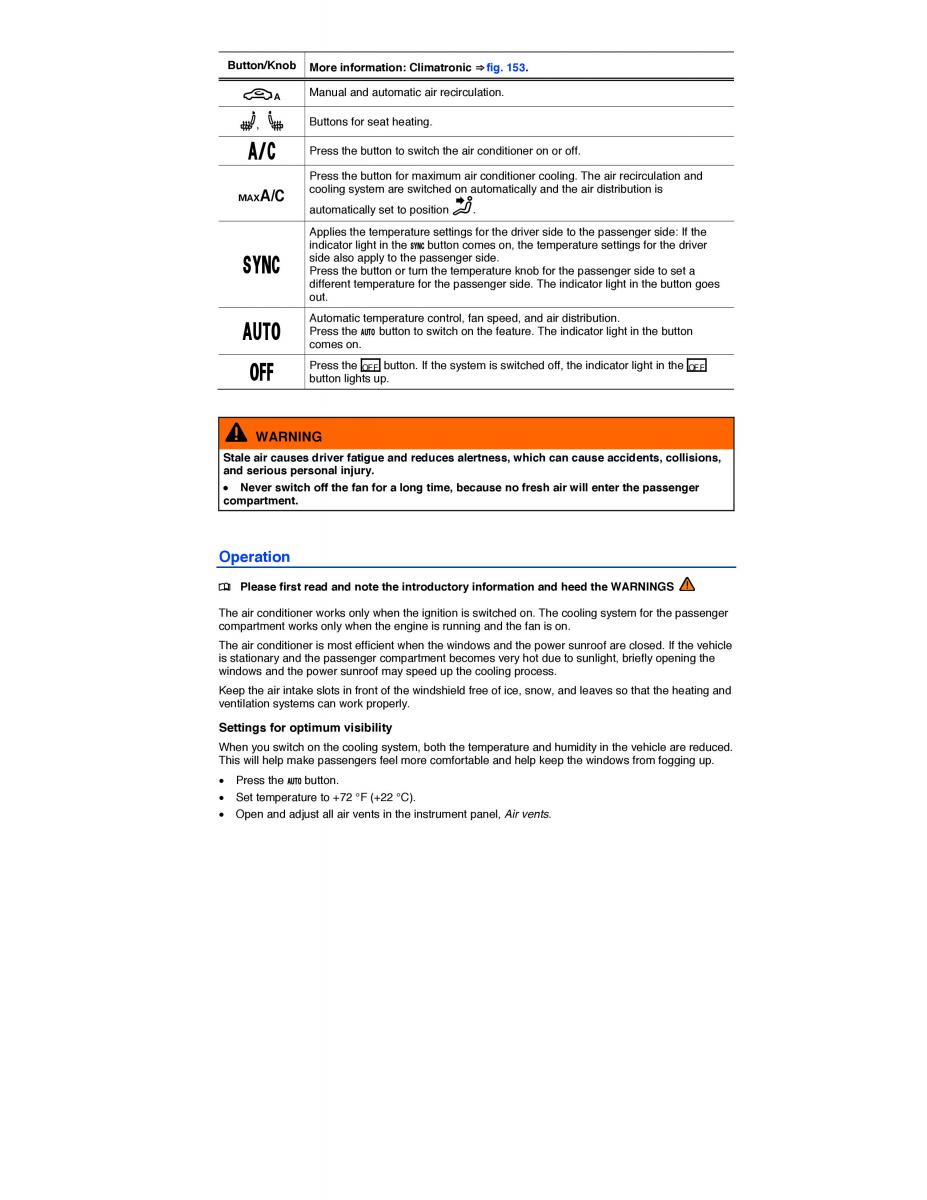

Button/Knob More information: Climatronic
⇒ fig. 153.
Manual and automatic air recirculation.
A, [ Buttons for seat heating.
!# Press the button to switch the air conditioner on or off.
Press the button for maximum air conditioner cooling. The air recirculation and
cooling system are switched on automatically and the air distribution is
automatically set to position K.
Applies the temperature settings for the driver side to the passenger side: If the
indicator light in the 39.# button comes on, the temperature settings for the driver
39.# side also apply to the passenger side.
Press the button or turn the temperature knob for the passenger side to set a
different temperature for the passenger side. The indicator light in the button goes
out.
Automatic temperature control, fan speed, and air distribution.
!54/ Press the !54/ button to switch on the feature. The indicator light in the button
comes on.
/&& Press the OFF button. If the system is switched off, the indicator light in the OFF
button lights up.
WARNING
Stale air causes driver fatigue and reduces alertness, which can cause accidents, collisions,
and serious personal injury.
x Never switch off the fan for a long time, because no fresh air will enter the passenger
compartment.
Operation
¤ Please first read and note the introductory information and heed the WARNINGS
The air conditioner works only when the ignition is switched on. The cooling system for the passenger
compartment works only when the engine is running and the fan is on.
The air conditioner is most efficient when the windows and the power sunroof are closed. If the vehicle
is stationary and the passenger compartment becomes very hot due to sunlight, briefly opening the
windows and the power sunroof may speed up the cooling process.
Keep the air intake slots in front of the windshield free of ice, snow, and leaves so that the heating and
ventilation systems can work properly.
Settings for optimum visibility
When you switch on the cooling system, both the temperature and humidity in the vehicle are reduced.
This will help make passengers feel more comfortable and help keep the windows from fogging up.
x Press the!5 4/ button.
x Set temperature to +72 °F (+22 °C).
x Open and adjust all air vents in the instrument paneAirl, vents.
